Electrical Diagrams

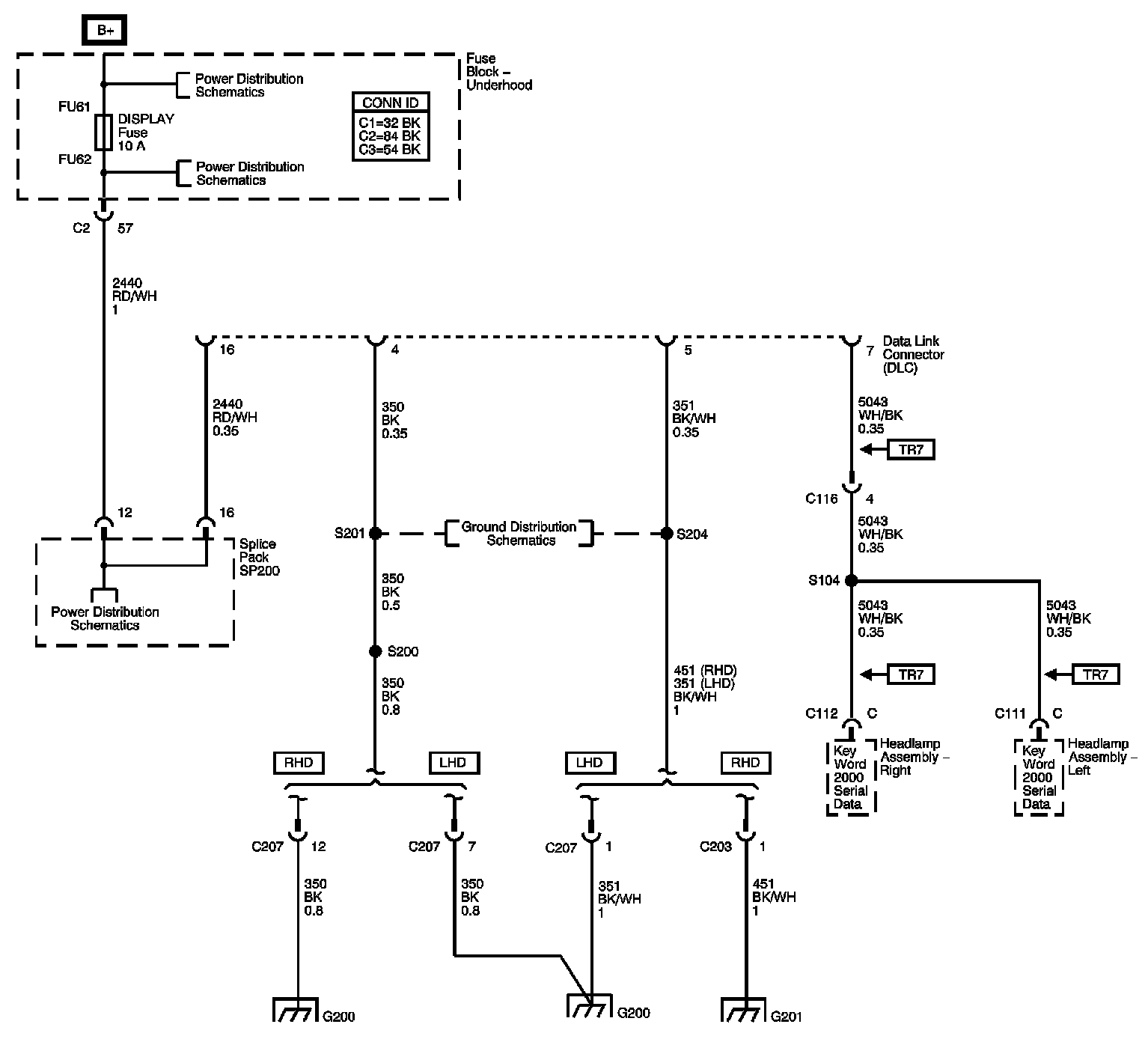

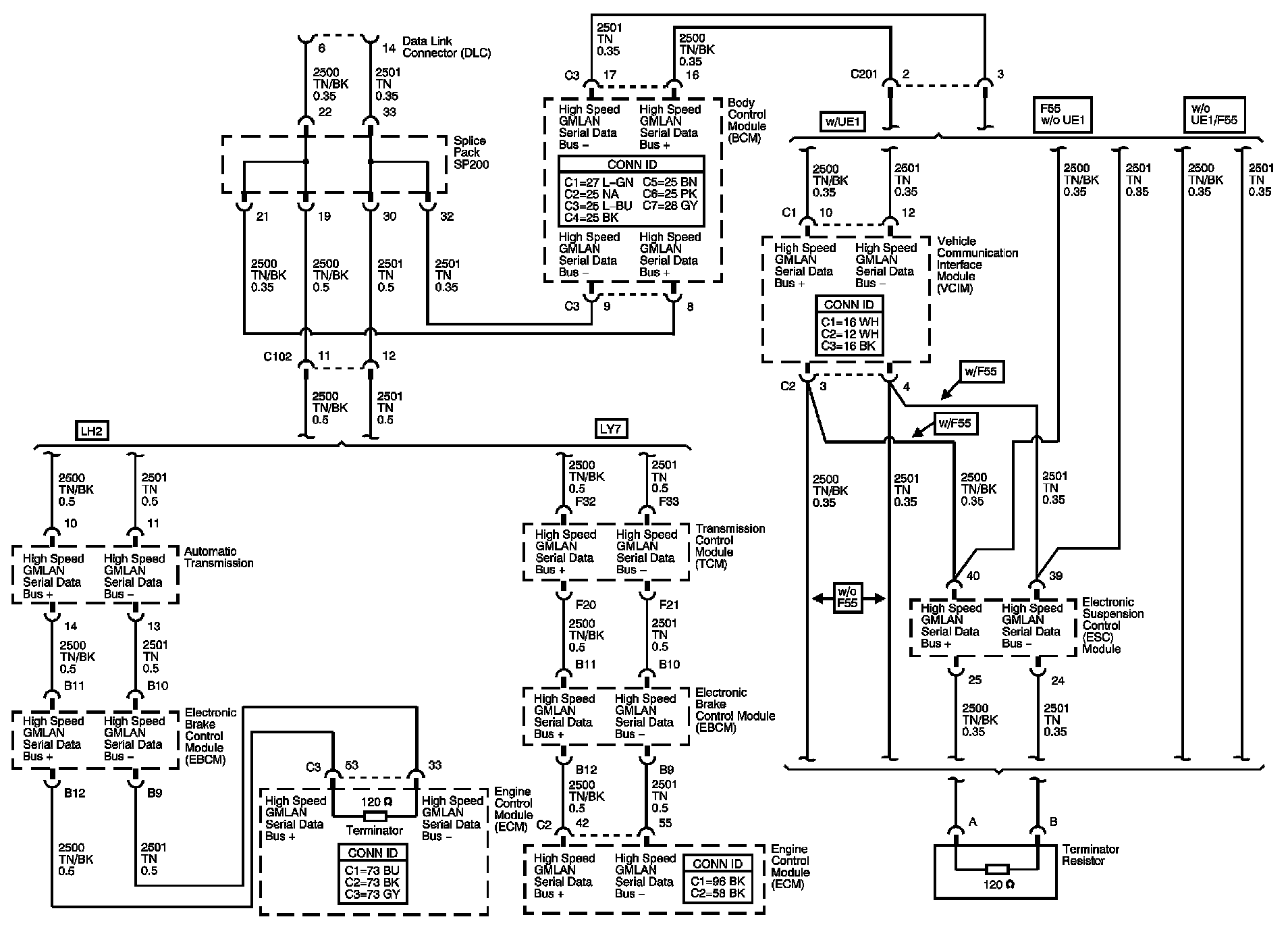

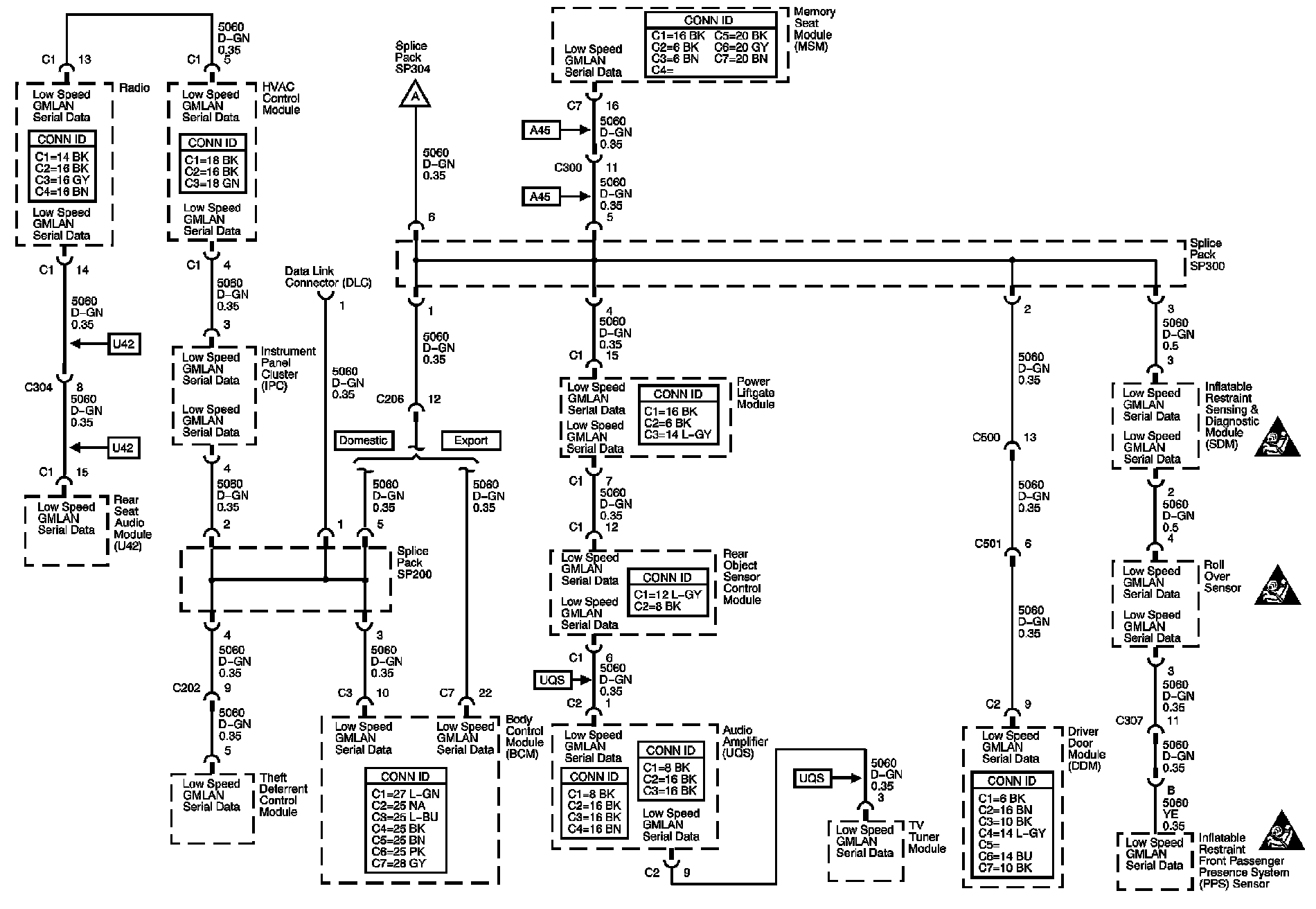

Data Communication SchematicsPower, Ground, and Key Word 2000 Serial DataLow Speed GMLAN Serial Data (1 of 2)Low Speed GMLAN Serial Data (2 of 2)High Speed GMLANLocal Interconnect Network (LIN)Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations.
Locations
