Sunroof / Moonroof Module: Locations

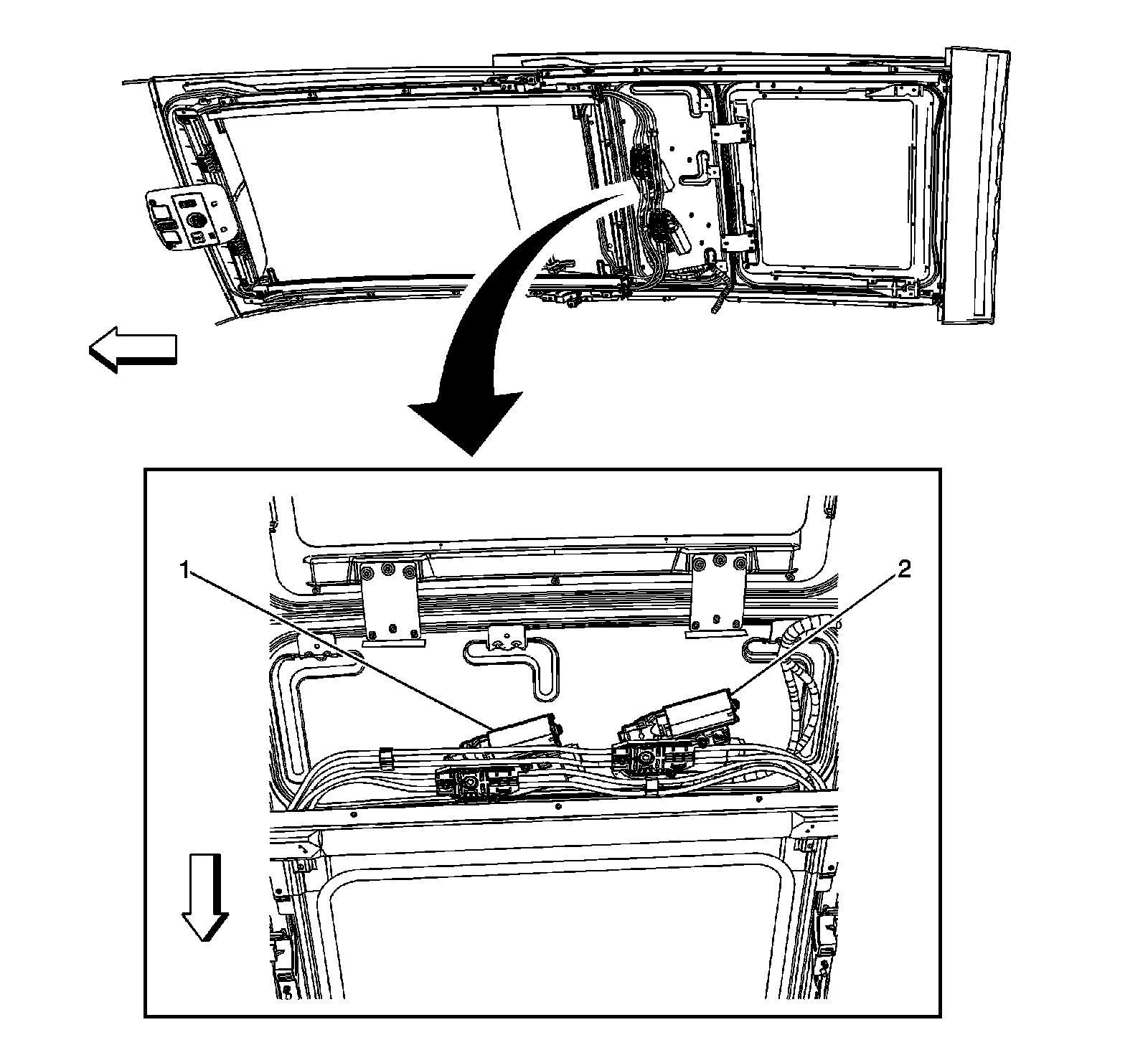

Sunroof Component ViewsSunroof Components - Mini (CF5)1 - Sunroof Control Module
2 - Front Sunshade Control Module

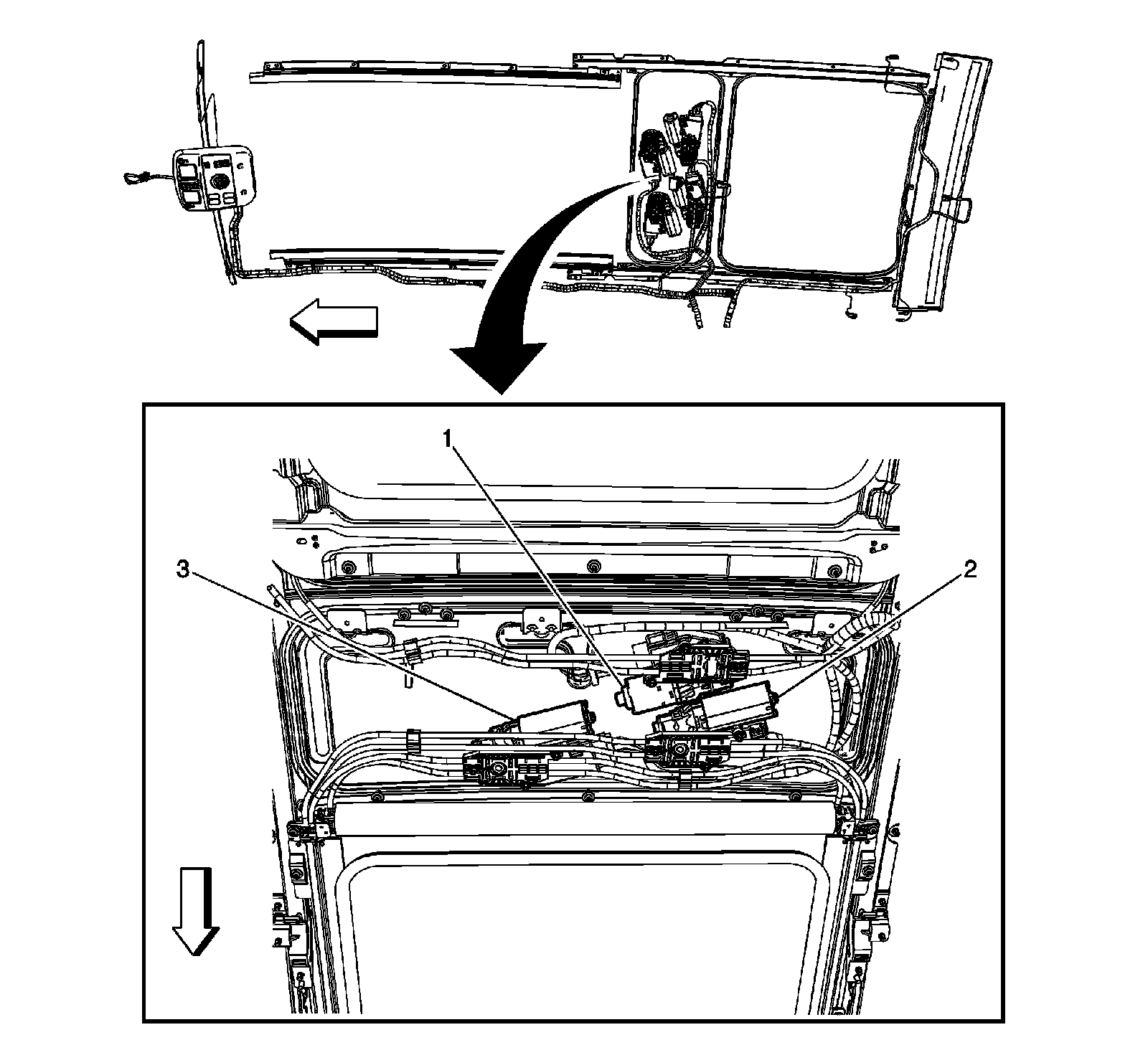

Sunroof Components - Mega (C3B)1 - Rear Sunshade Control Module (C3B)
2 - Front Sunshade Control Module (C3B)
3 - Sunroof Control Module
