Engine Electrical Component Views (LHD)
Engine Electrical Component Views (LHD)
Under Intake Manifold (LH2)
1 - Knock Sensor (KS) 1
2 - Crankshaft Position (CKP) Sensor
3 - Starter Motor
4 - Knock Sensor (KS) 2

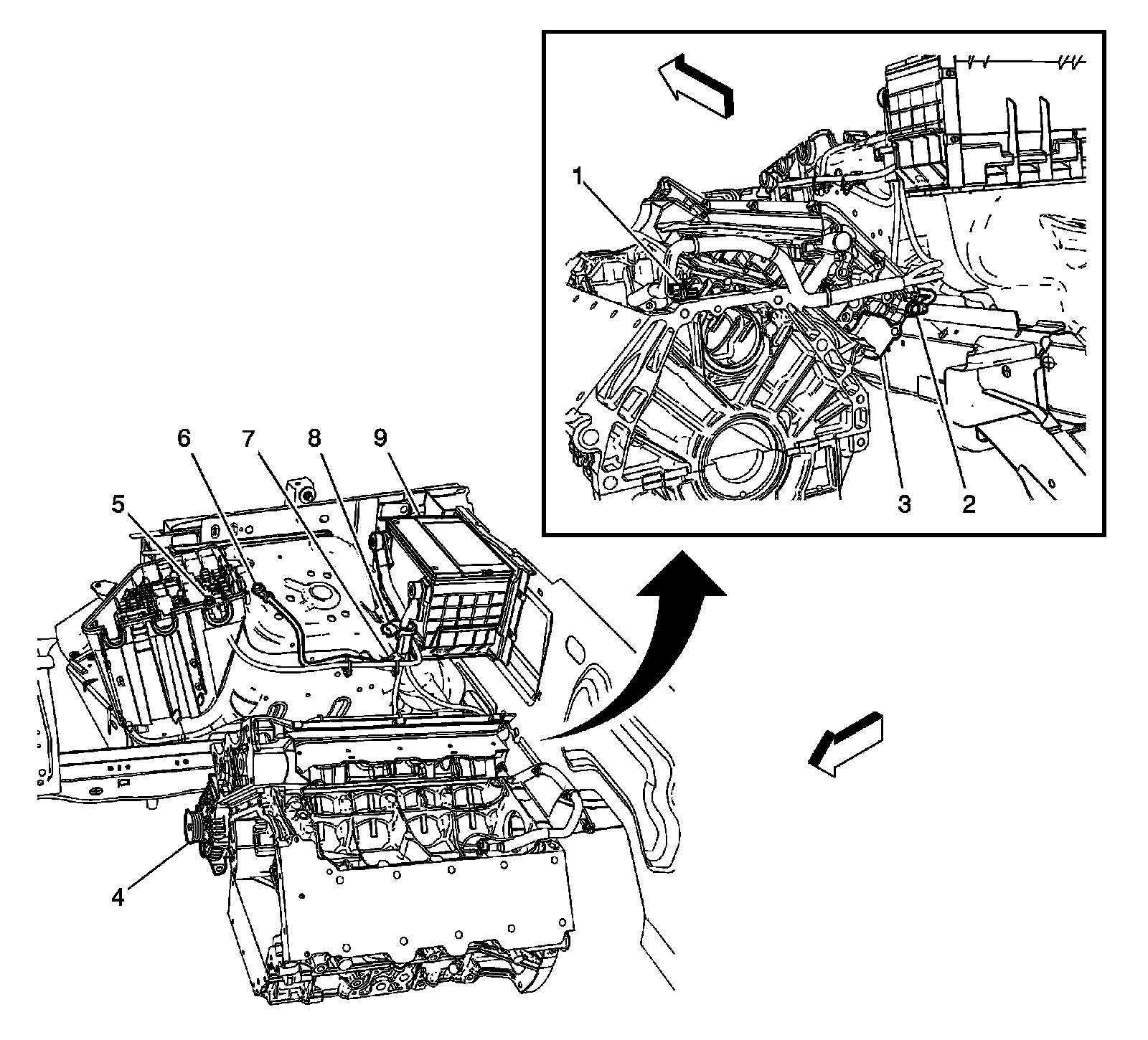

Battery Cables (LH2)
1 - C107
2 - G102
3 - Cylinder Head - RH
4 - Generator
5 - Battery Positive Voltage (Stud)
6 - G105
7 - C103
8 - Battery Current Sensor
9 - Battery
Battery Cables (LY7)
1 - G105
2 - Battery Current Sensor
3 - Battery
4 - Mega Fuse (200A)
5 - G102
6 - Starter
7 - Generator
8 - C103
9 - Battery Positive Voltage (Stud)
