Window Shade: Service and Repair
Rear Sunshade Replacement Removal Procedure 1.
Remove the body side rear trim panel.
2.

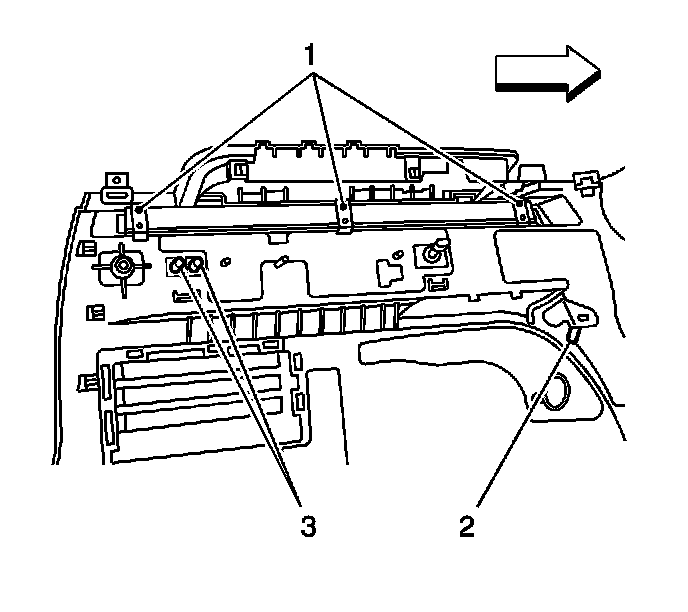

Remove the retaining screws (1).
3.
Remove the sunshade from the trim panel.
Installation Procedure 1.
Install the sunshade to the body side rear trim panel.
Notice: Refer to Fastener Notice.
2.
Install the screws (1).
Tighten the screws to 2 N.m (18 lb in). 3.
Install the body side rear trim panel.
