Wiper/Washer Component Views (RHD)

Wiper/Washer Component Views (RHD)

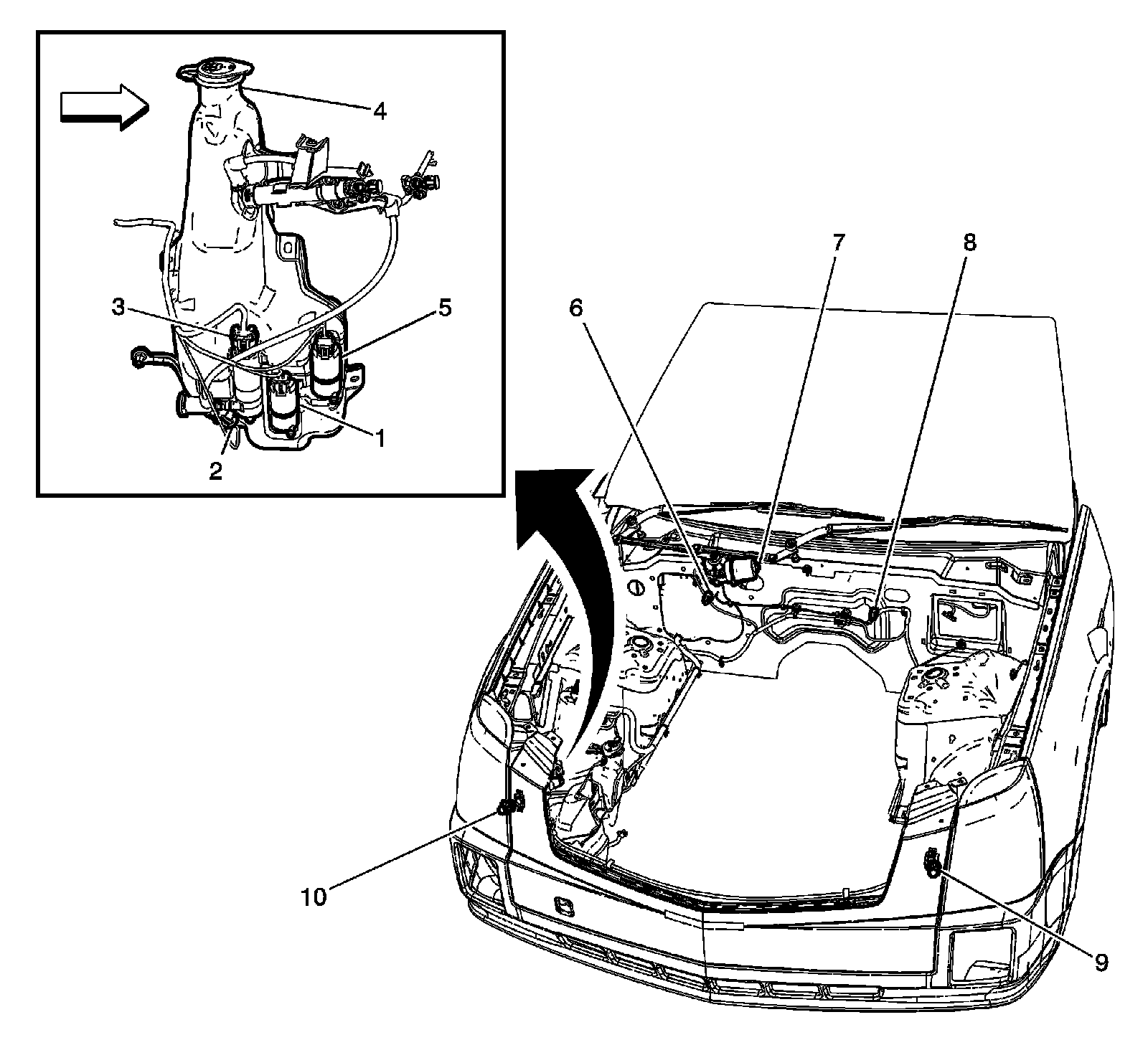

Front Engine Compartment

1 - Windshield Washer Fluid Pump
2 - Washer Fluid Level Switch
3 - Headlamp Washer Fluid Pump (CE4)
4 - Washer Fluid Reservoir
5 - Rear Window Washer Fluid Pump
6 - Heated Washer Nozzle - Right (XA7)
7 - Windshield Wiper Motor
8 - Heated Washer Nozzle - Left (XA7)
9 - Headlamp Washer Nozzle - Left
10 - Headlamp Washer Nozzle - Right
