Garage Door Opener Transmitter: Service and Repair



Garage Door Opener Replacement

Removal Procedure

1. Remove the overhead console.

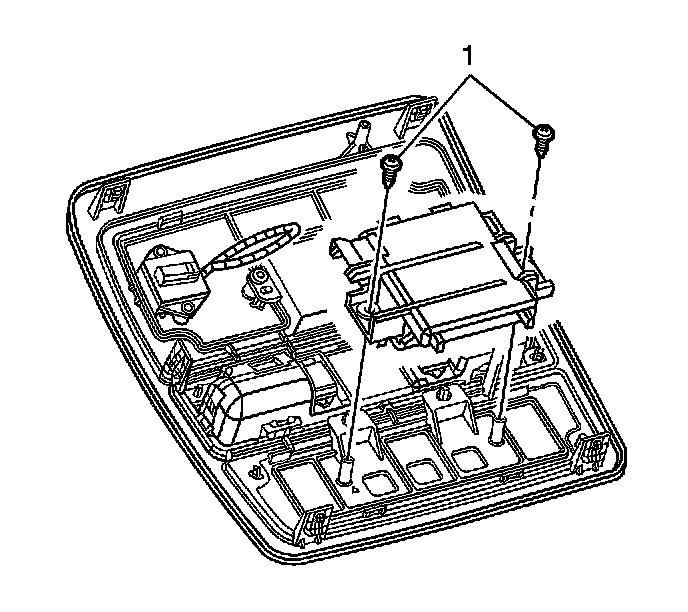

2. Remove the screws (1) securing the garage door opener to the overhead console.
3. Disconnect the electrical connector.

Installation Procedure




1. Locate the garage door opener to the overhead console.

Notice: Refer to Fastener Notice.

2. Install the screws (1) securing the garage door opener the overhead console.

Tighten the screws (1) to 2 N.m (18 lb in).

3. Connect the electrical connector.
4. Install the overhead console.
5. Refer to Programming and Relearning Programming and Relearning
