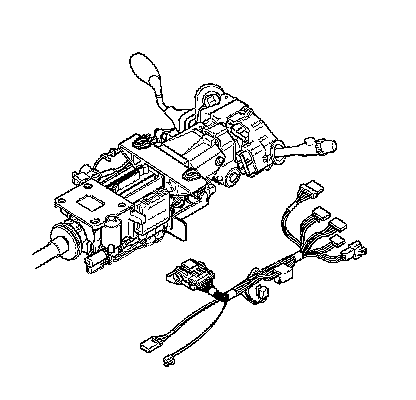

Steering Column Wire Harness Assembly Replacement



Steering Column Wire Harness Assembly Replacement

Removal Procedure





Caution: Refer to Restraint System Service Precautions.

1. Disable the SIR coil. Refer to SIR Disabling and Enabling.
2. Remove the steering wheel from the column.
3. Remove the steering column from the vehicle.
4. Inspect the steering column for accident damage.
5. Remove the upper and lower trim cover.
6. Disconnect all connectors attached to the wire harness assembly.
7. Slide the bulkhead connector out from the column shift and tilt motor bracket assembly.

Installation Procedure





Caution: Refer to SIR Inflator Module Coil Caution.

1. Slide the bulkhead connector into the column shift and tilt motor bracket assembly.
2. Connect all of the connectors to the wire harness assembly.
3. Install the upper and lower trim cover.
4. Install the steering column into the vehicle.
5. Install the steering wheel onto the steering column.
6. Enable the SIR system.
