Wheelhouse Filler Replacement



Wheelhouse Filler Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Vehicle Lifting.

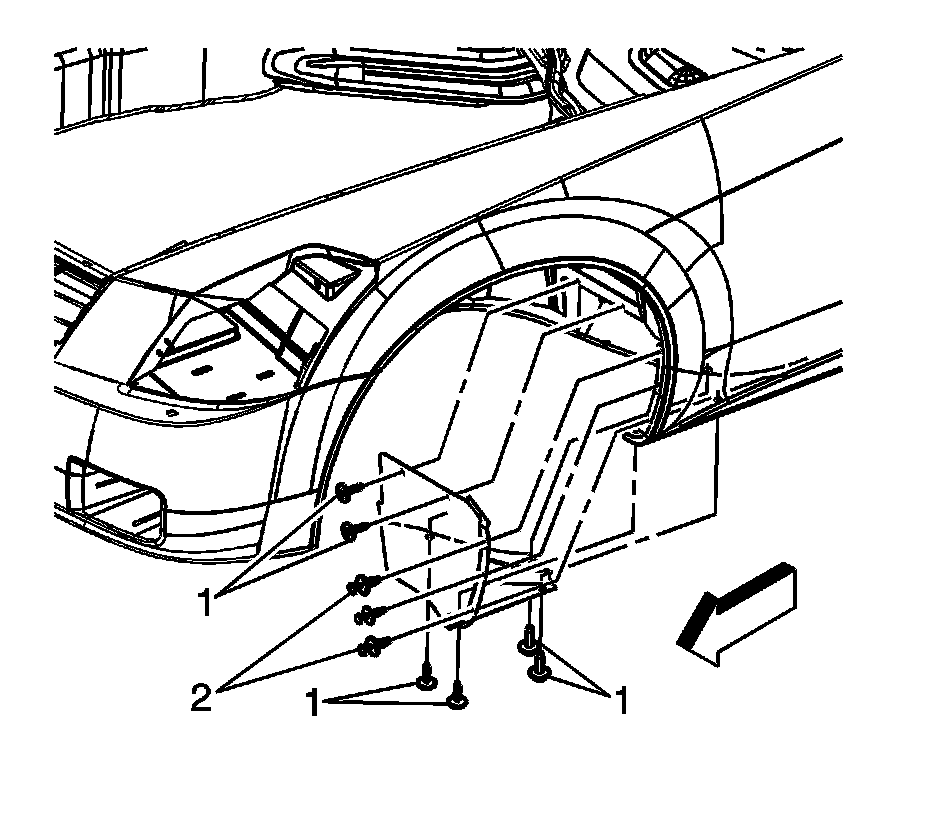

2. Remove the screws (1) attaching the wheelhouse filler to the front fender.
3. Remove the push-in fasteners (2) attaching the wheelhouse filler to the fender.
4. Remove the wheelhouse filler from the vehicle.

Installation Procedure




1. Position the wheelhouse filler to the fender.
2. Install the push-in fasteners (2) that attach the wheelhouse filler to the fender.

Notice: Refer to Fastener Notice.

3. Install the screws (1) that attach the wheelhouse to the fender.

Tighten the screws to 2 N.m (17 lb in).

4. Lower the vehicle.
