Generator Cooling Inlet Hose Fitting Replacement



Generator Cooling Inlet Hose Fitting Replacement

Removal Procedure

1. Drain the cooling system.
2. Remove the accessory drive belt tensioner.

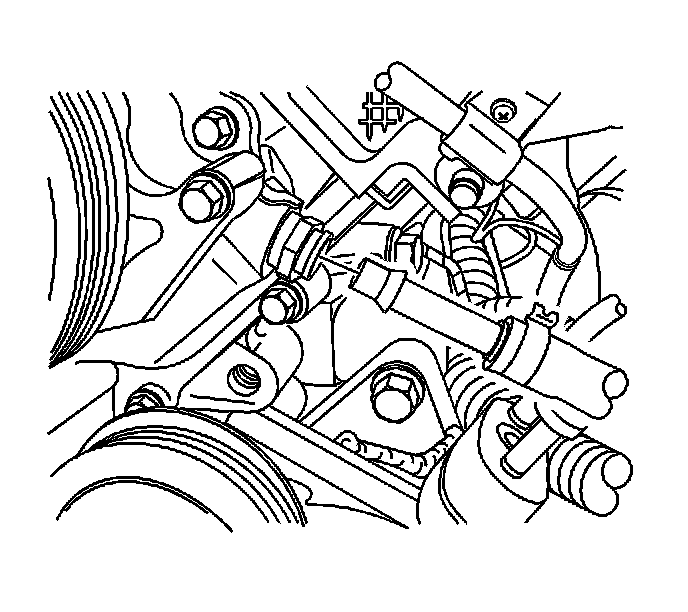

3. Disconnect the generator cooling hose from the water pump.

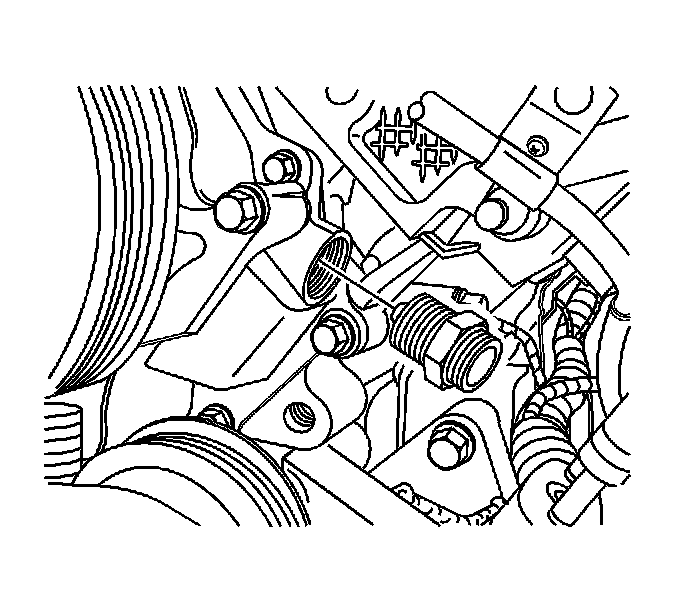

4. Remove the generator cooling inlet hose fitting from the vehicle.
5. Remove and discard the seal washer.

Installation Procedure

Important: Flat washer type seals do not require lubrication.

1. Inspect the new seal washer for any signs of cracks, cuts, or damage.
Do not use a damaged seal washer.





Important: The seal washer must completely bottom against the surface of the fitting.

2. Using a lint-free clean, dry cloth, clean the sealing surfaces at the water pump and generator cooling inlet hose fitting.
Carefully install the new seal washer onto the generator cooling inlet hose fitting.





Notice: Refer to Fastener Notice.

3. Install the generator cooling inlet hose fitting to the vehicle.

Tighten the fitting to 25 N.m (18 lb ft).




4. Connect the generator cooling hose to the water pump.
5. Install the accessory drive belt tensioner.
6. Fill the cooling system.
