Power Steering Gear Inlet Pipe/Hose Replacement

Power Steering Gear Inlet Pipe/Hose Replacement

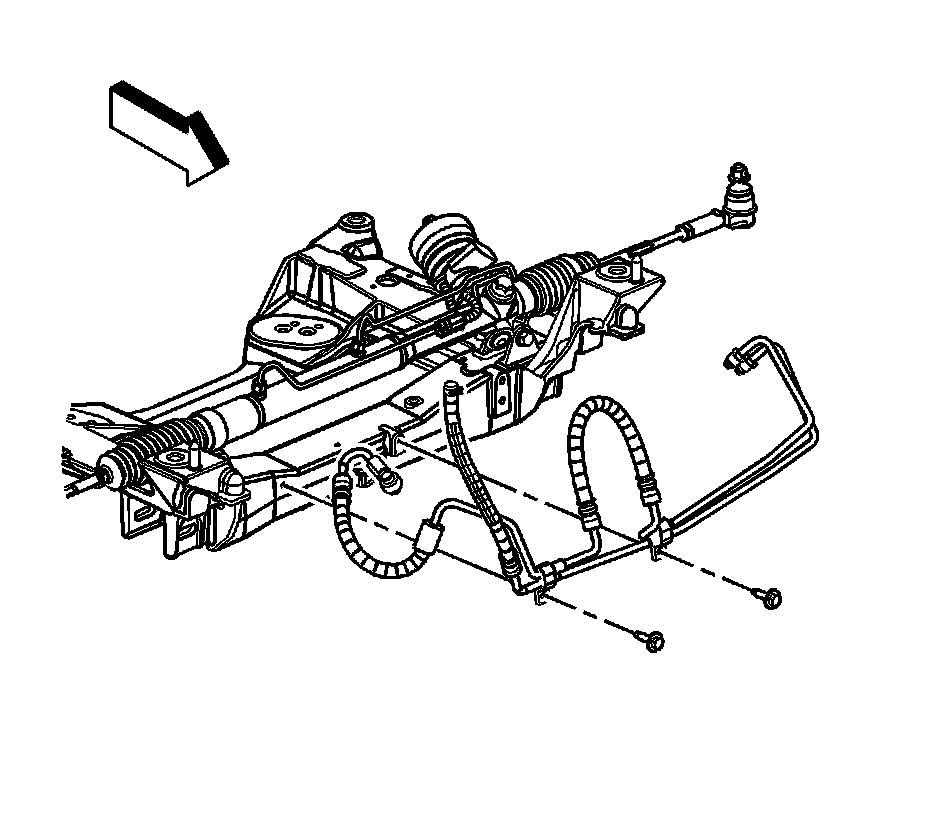

Removal Procedure

1. Raise the vehicle on a hoist. Refer to Vehicle Lifting.




2. Remove the power steering pressure hose from the power steering pump.
3. Remove the power steering pressure hose from the power steering gear.




4. Remove the power steering pressure hose from the vehicle.

Installation Procedure




1. Install the power steering pressure hose to the vehicle.

Notice: Refer to Fastener Notice.

2. Install the power steering pressure hose to the power steering gear.

Tighten the fitting to 27 N.m (20 lb ft).




3. Install the power steering pressure hose to the power steering pump.

Tighten the fitting to 27 N.m (20 lb ft).

4. Lower the vehicle.
5. Bleed the power steering system. Refer to Power Steering System Bleeding.
