A - Z Index

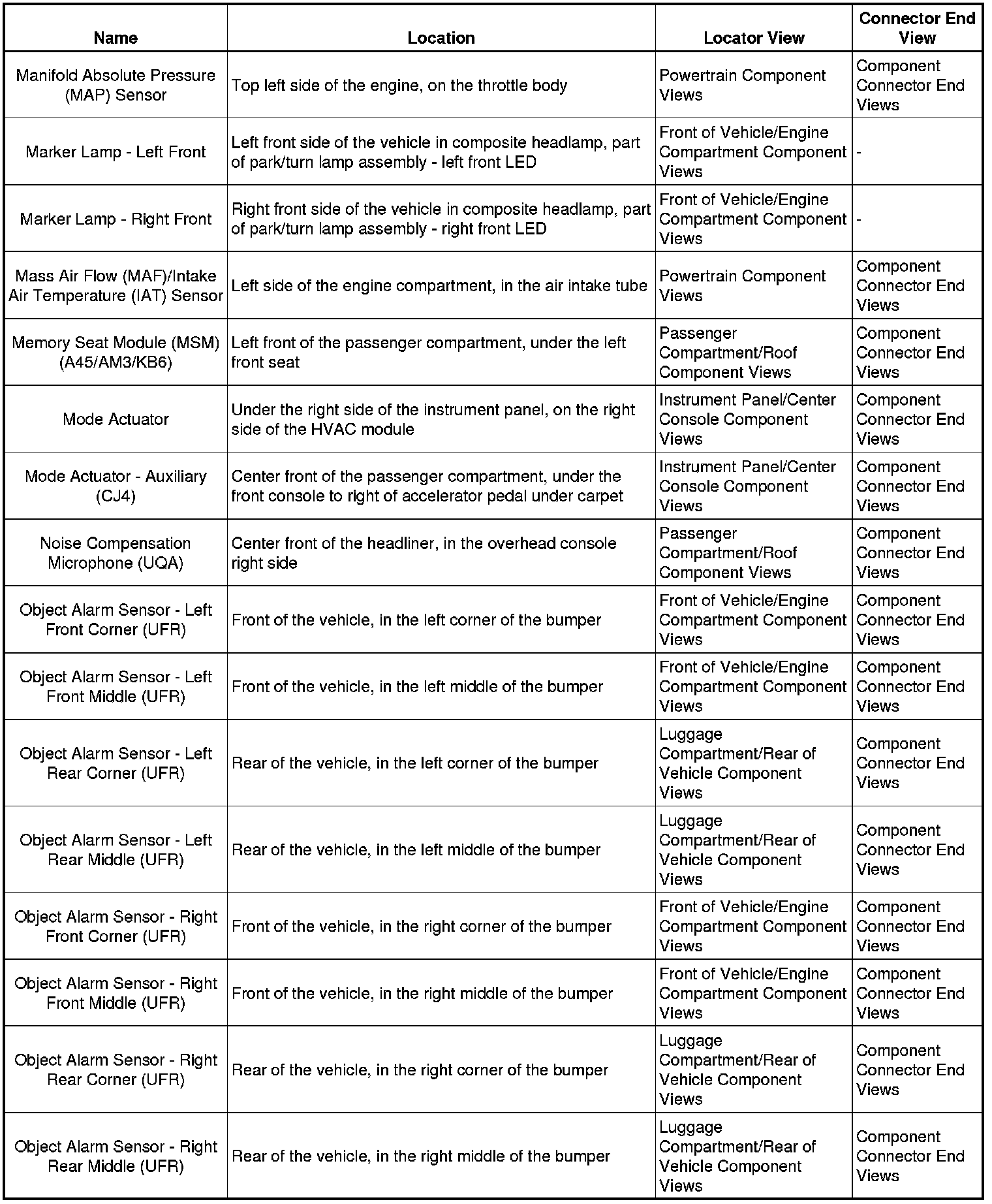

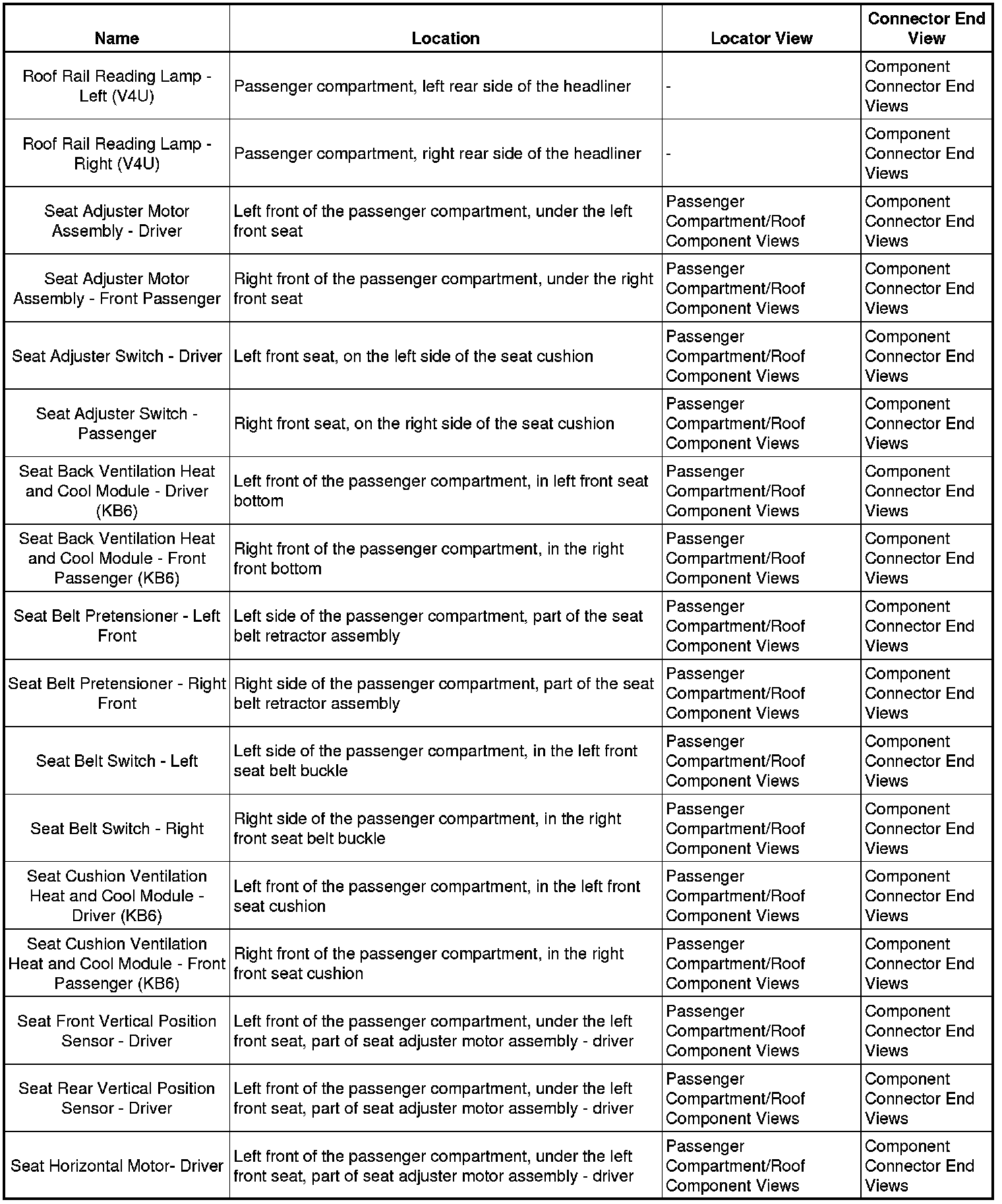

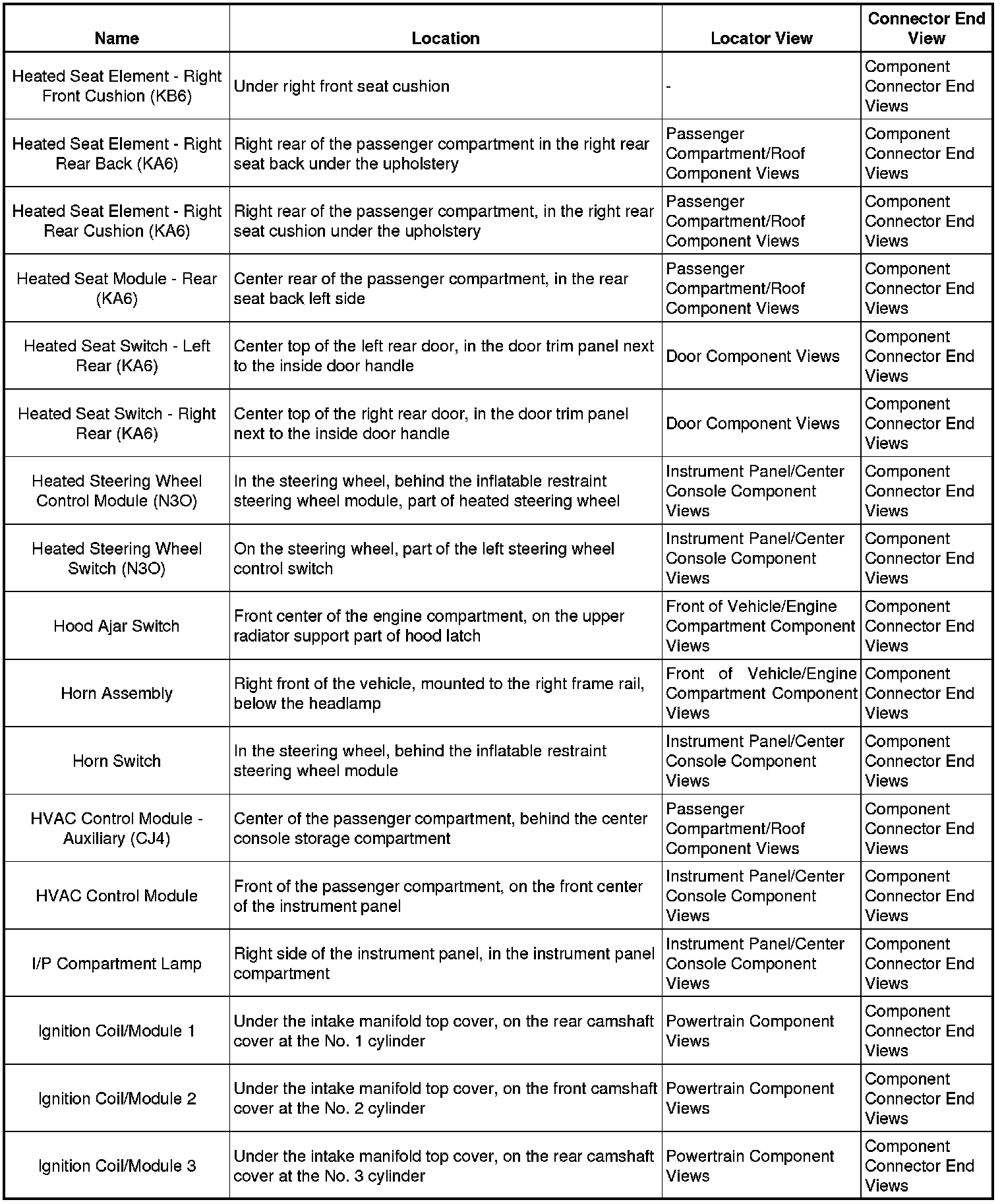

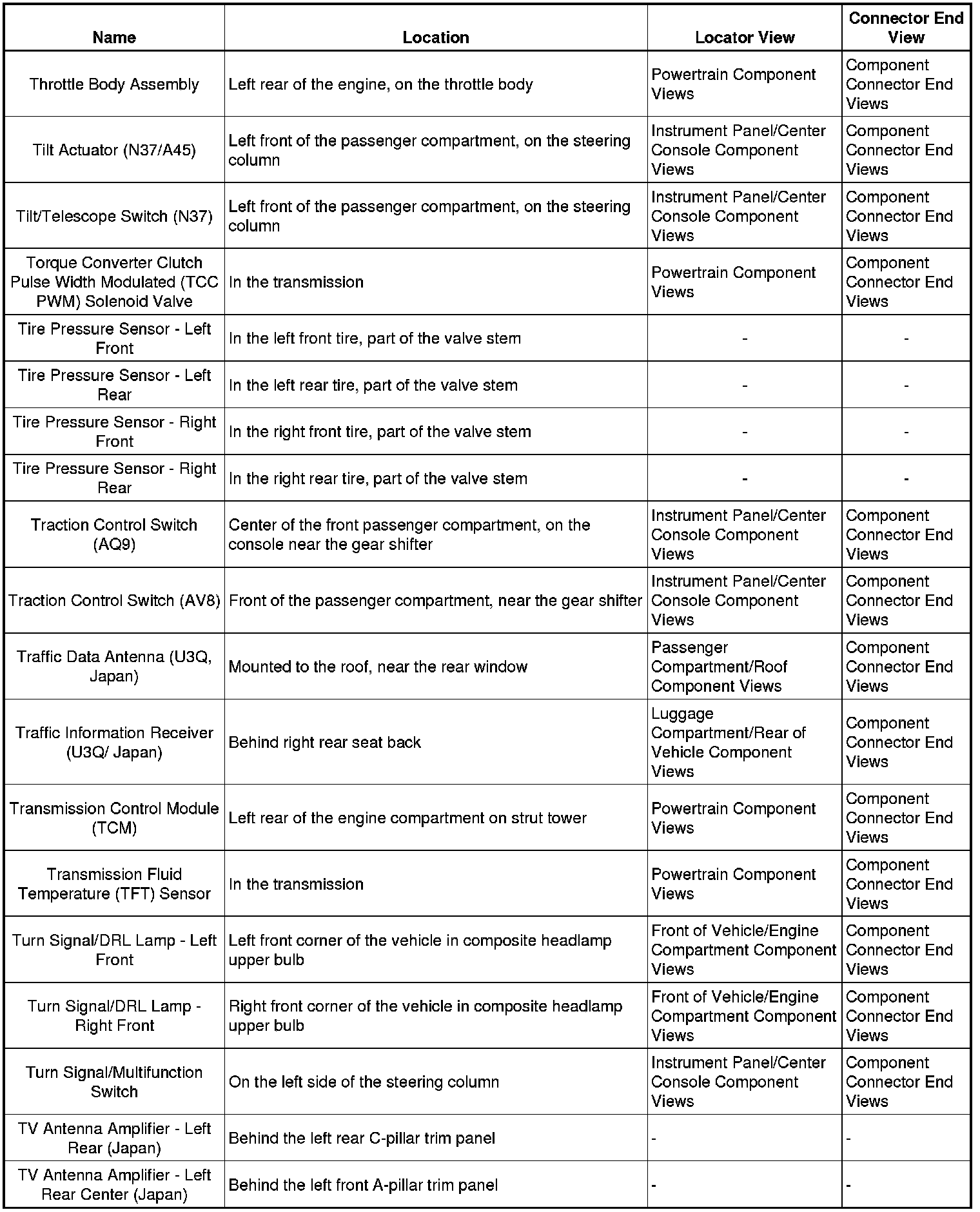

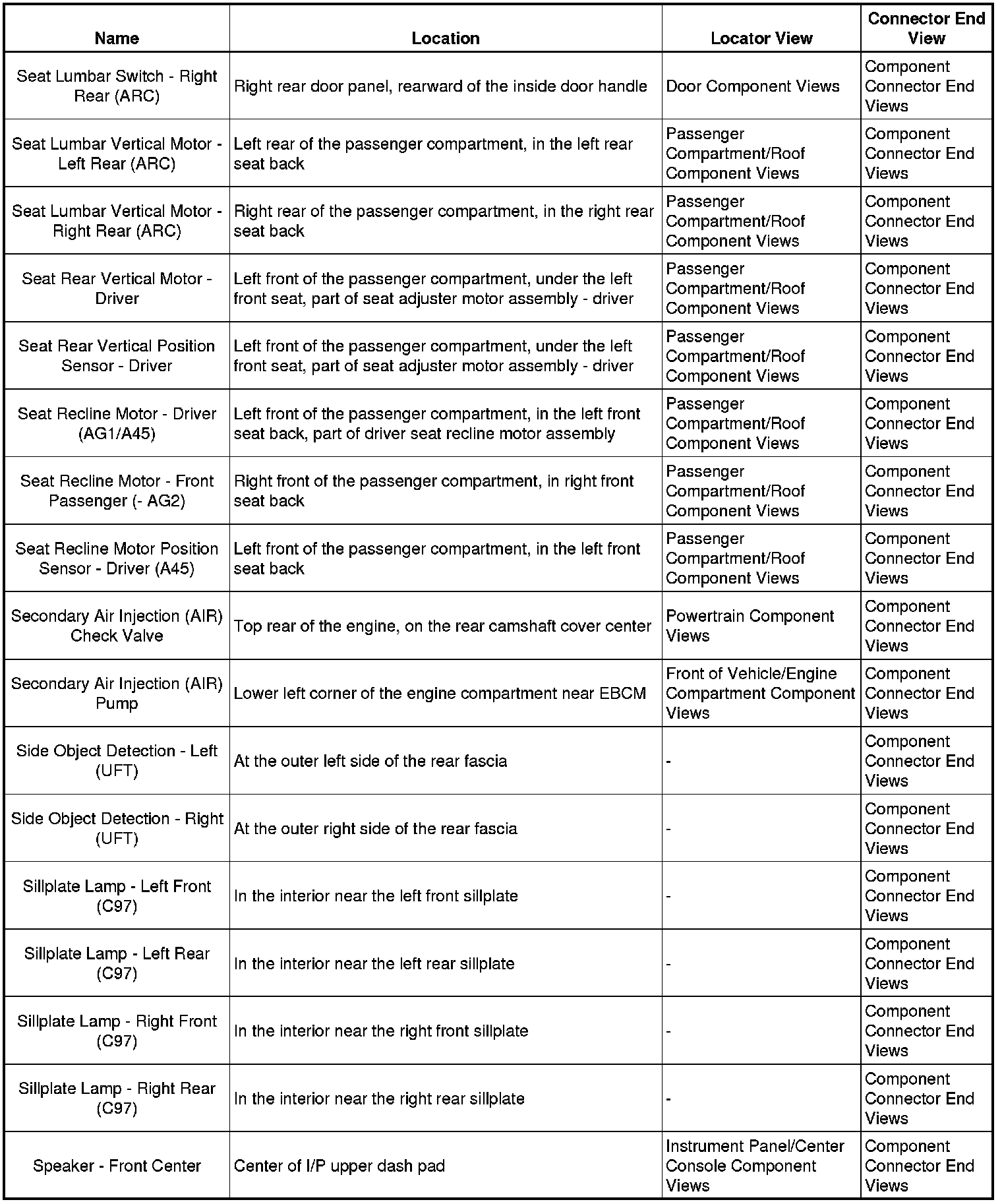

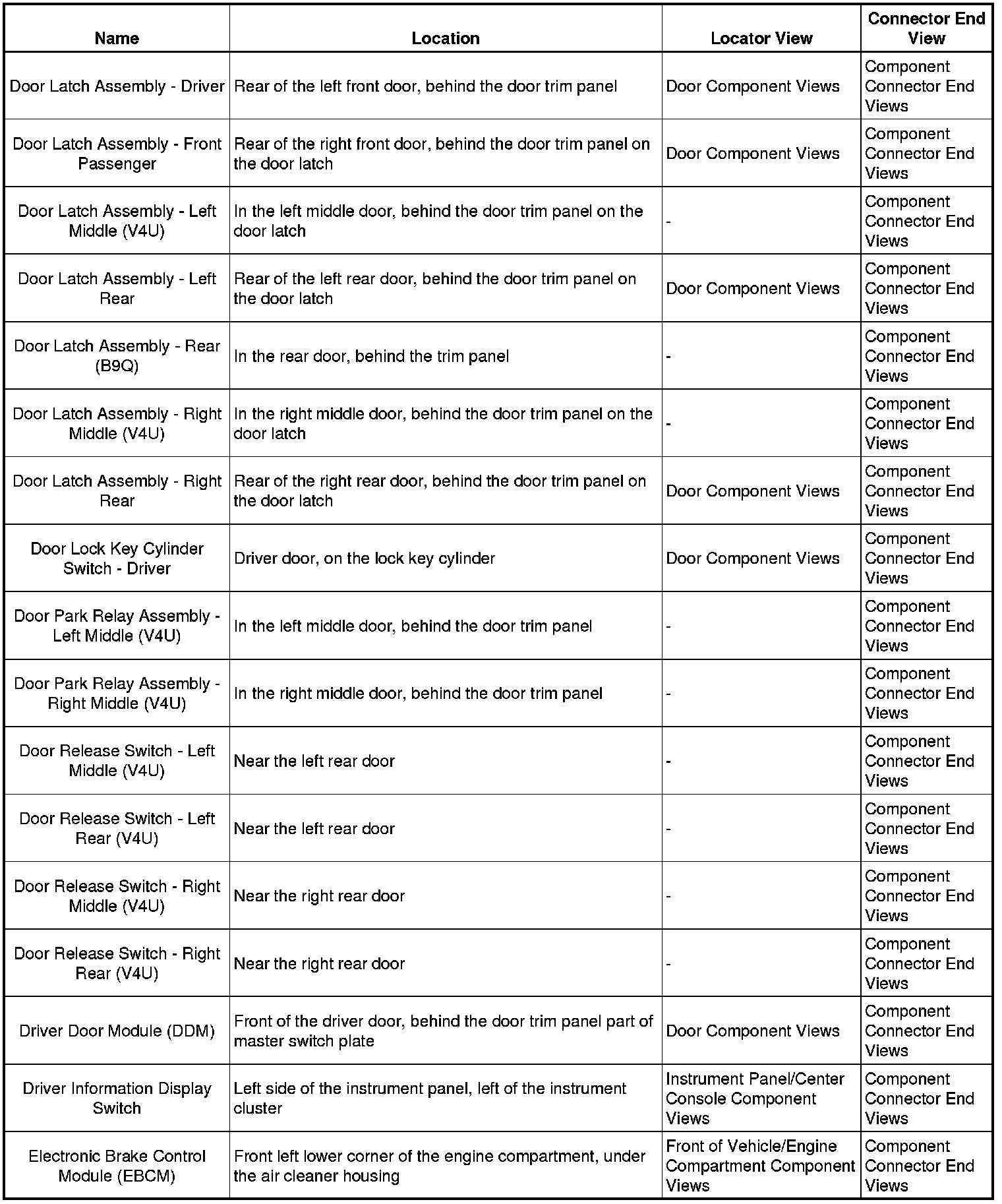

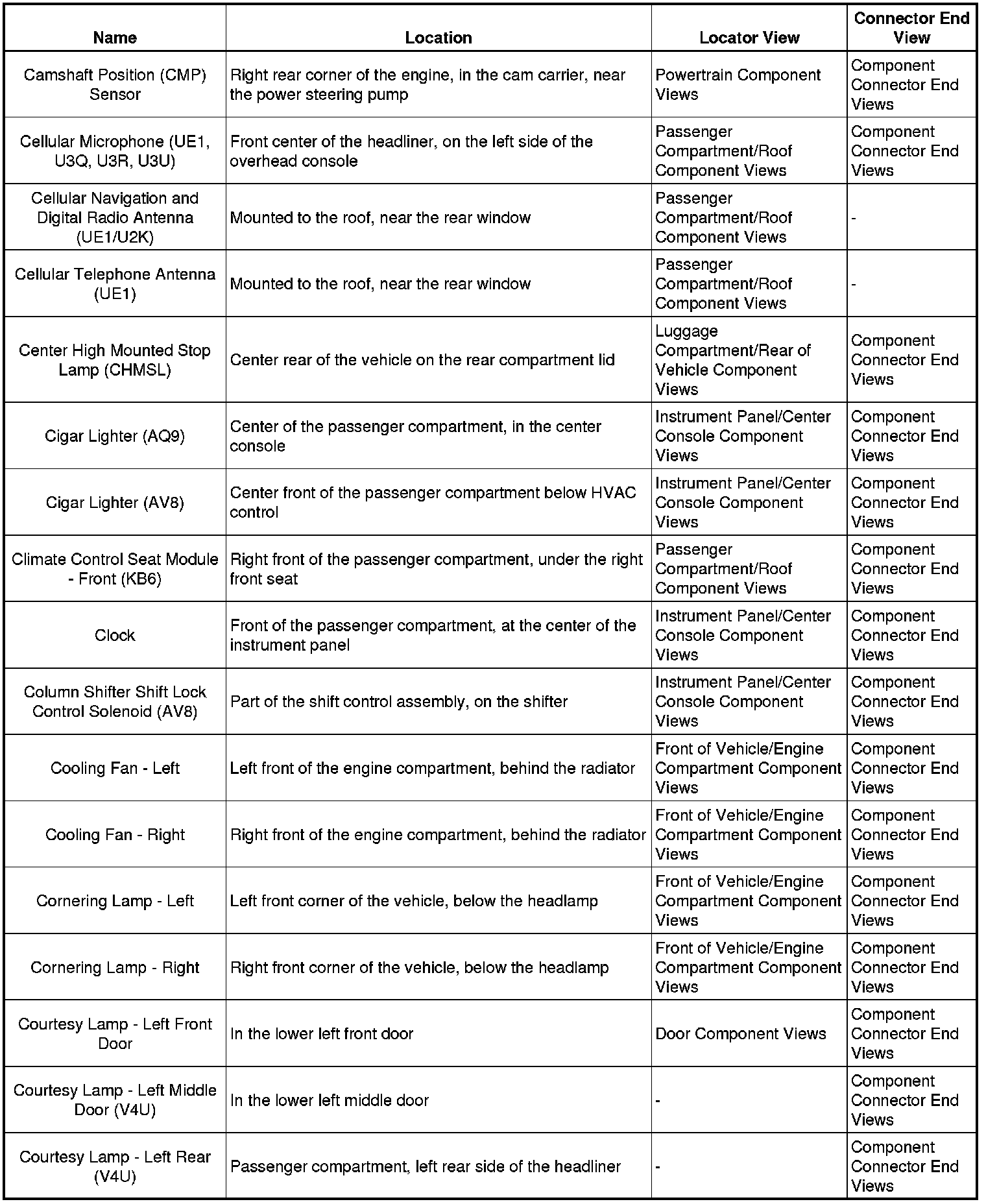

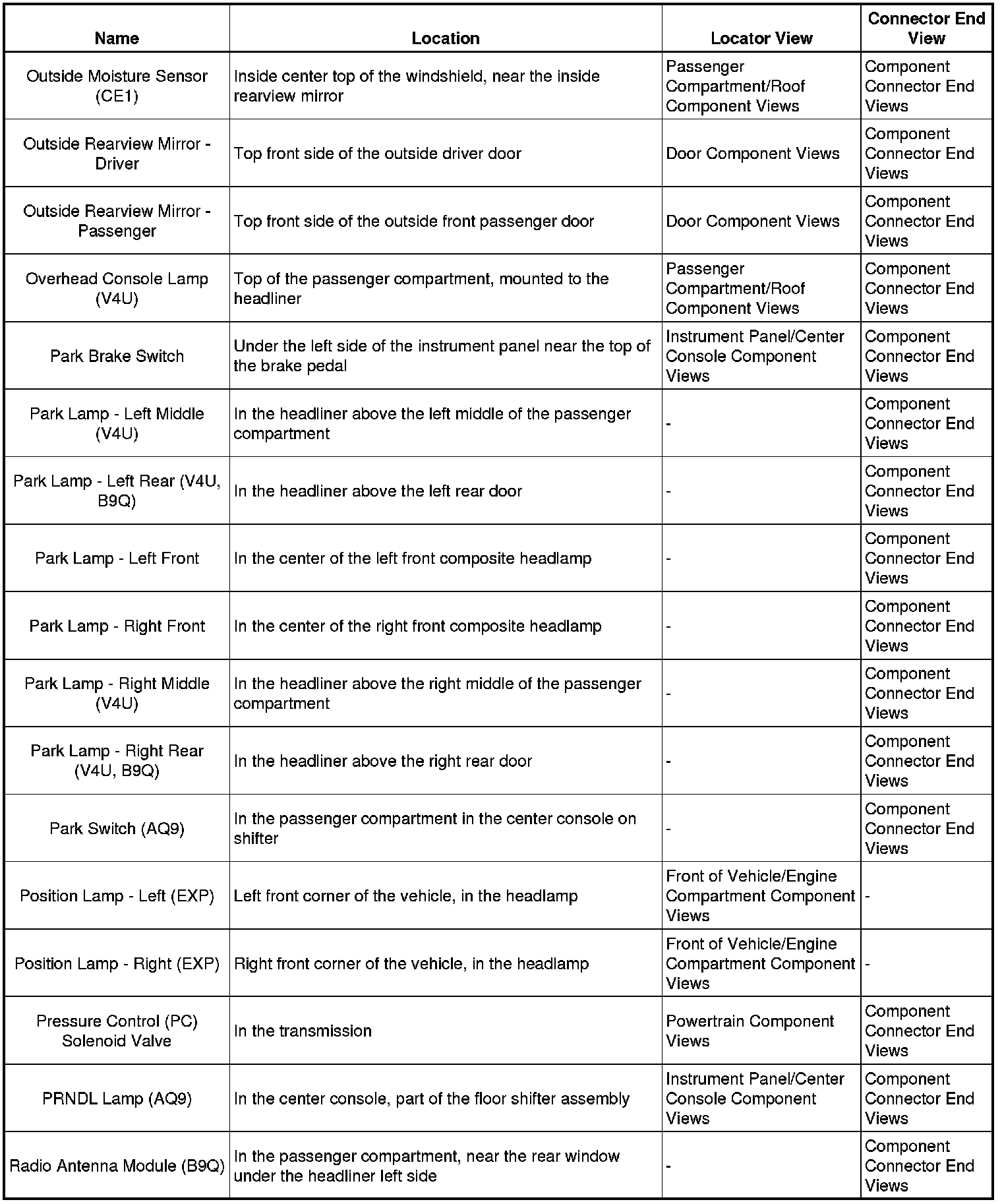

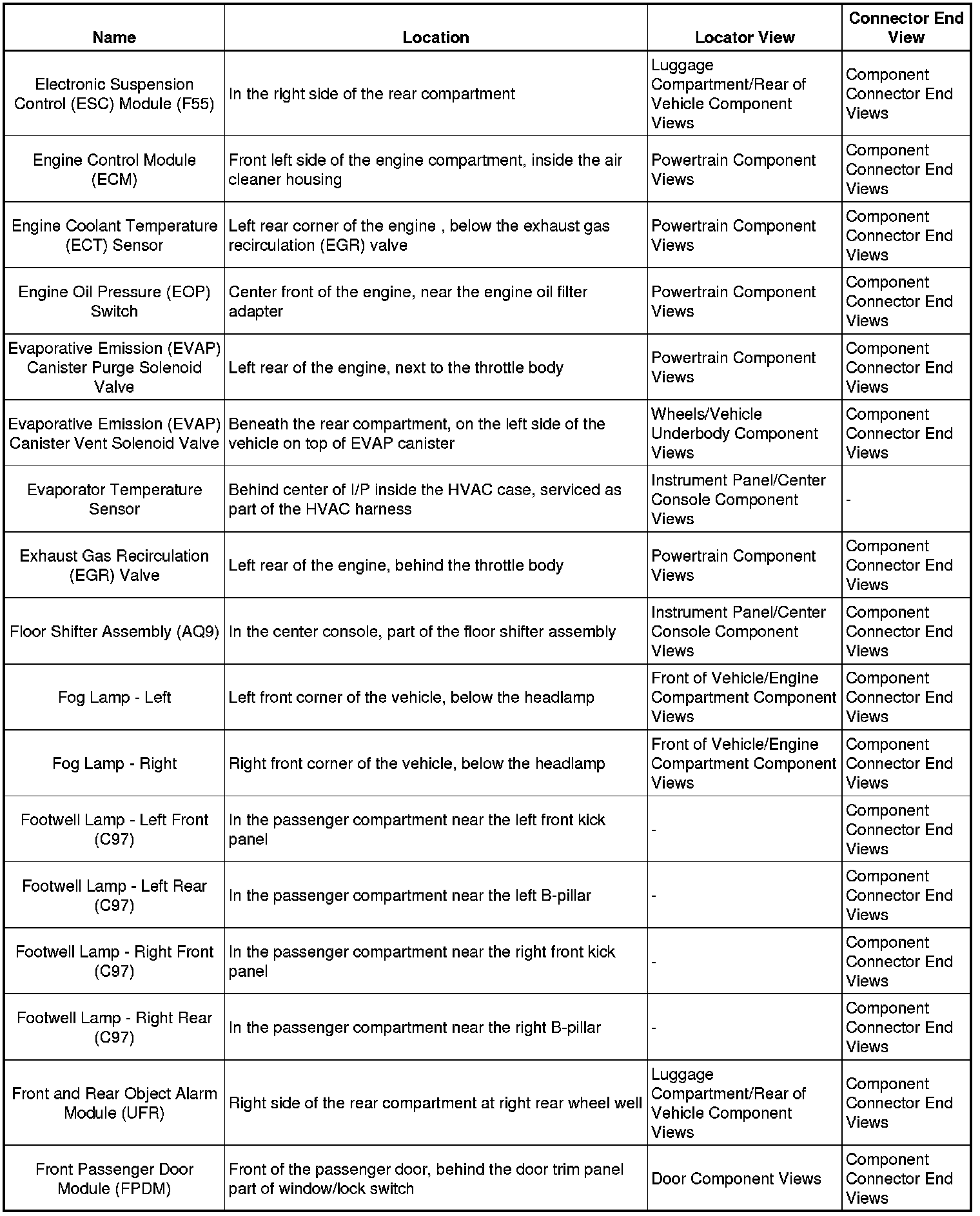

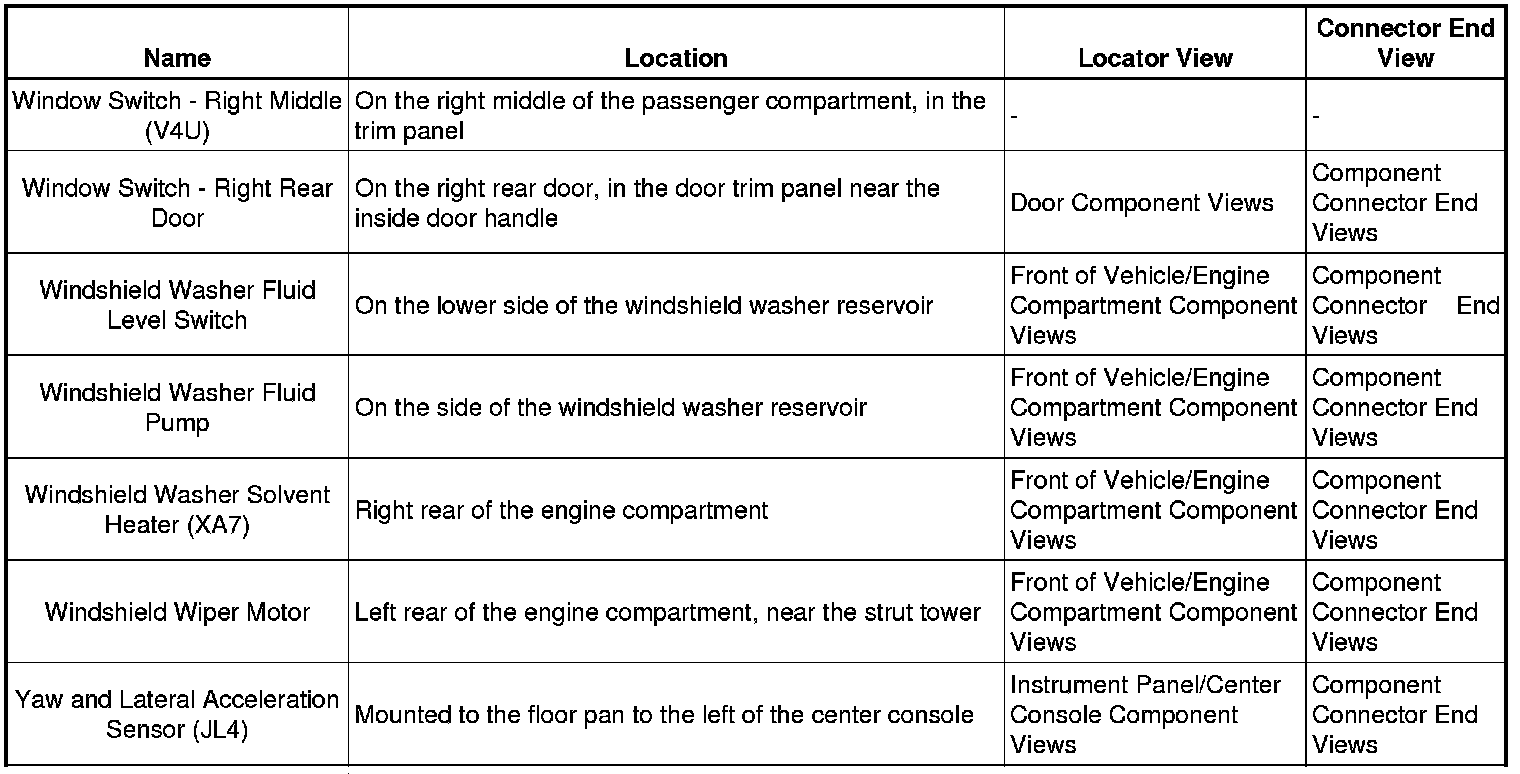

Master Electrical Component List

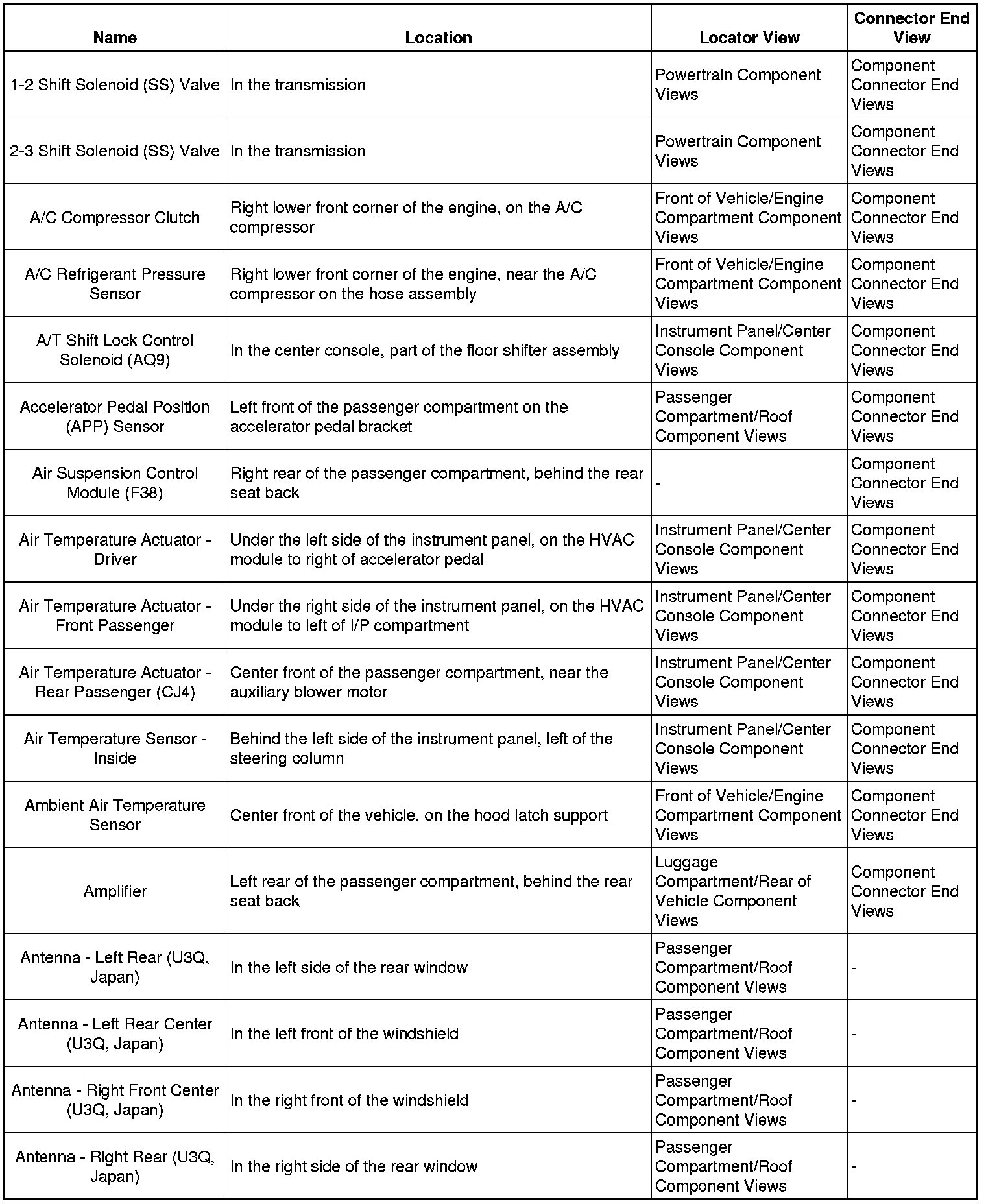

1-2 Sh - An:

As - Br:

Ca - C0:

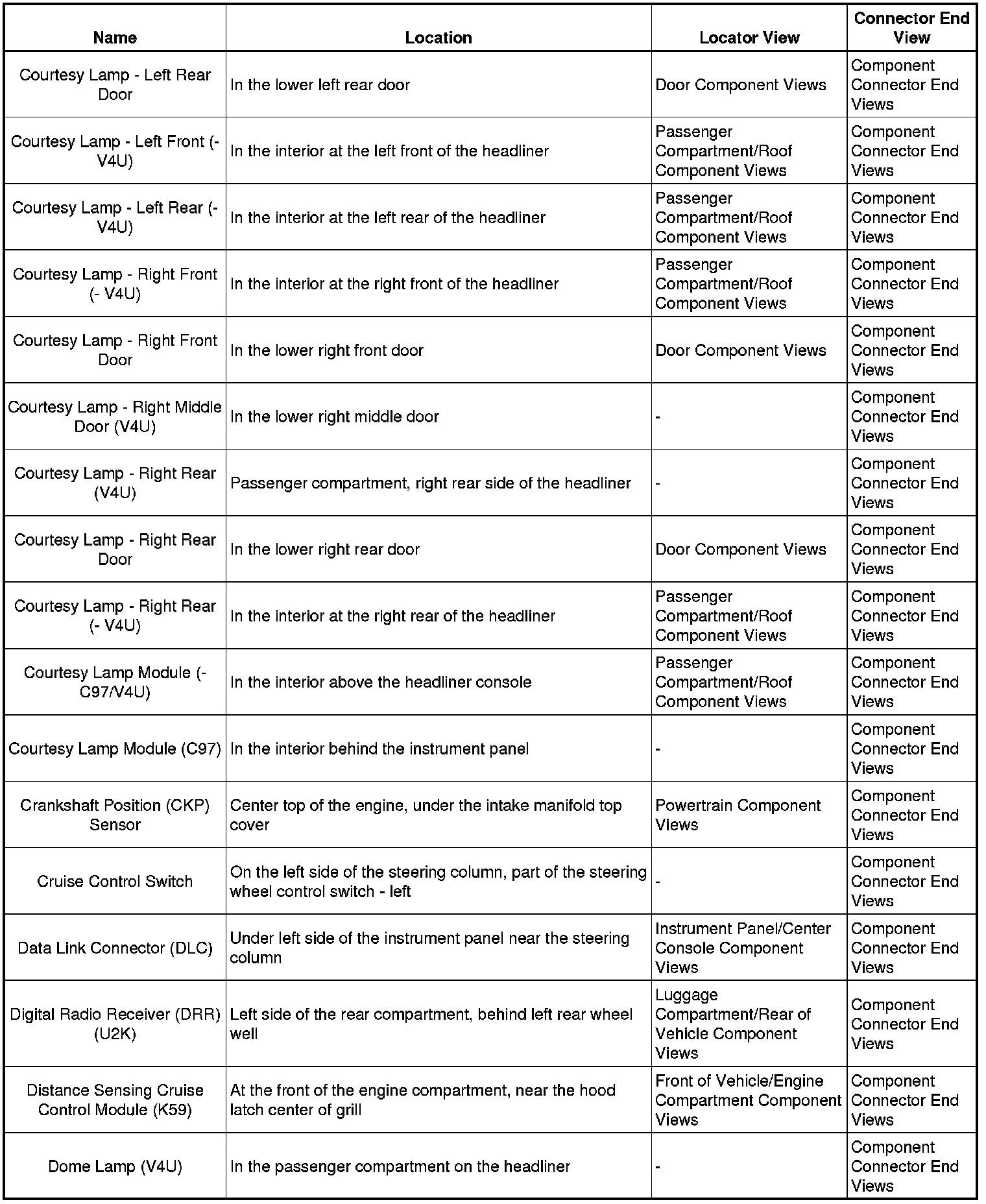

Co - Do:

Do - El:

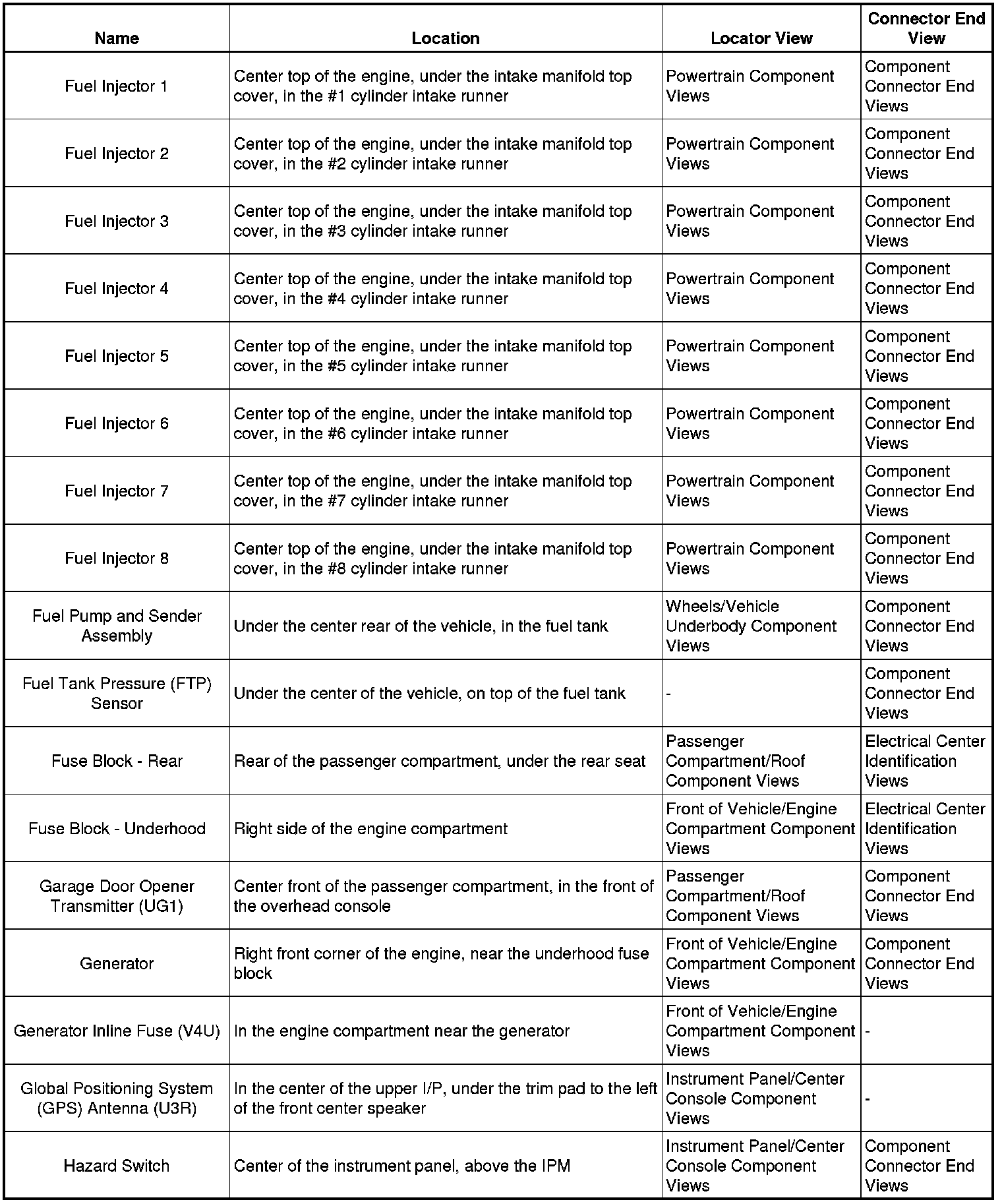

El - Fr:

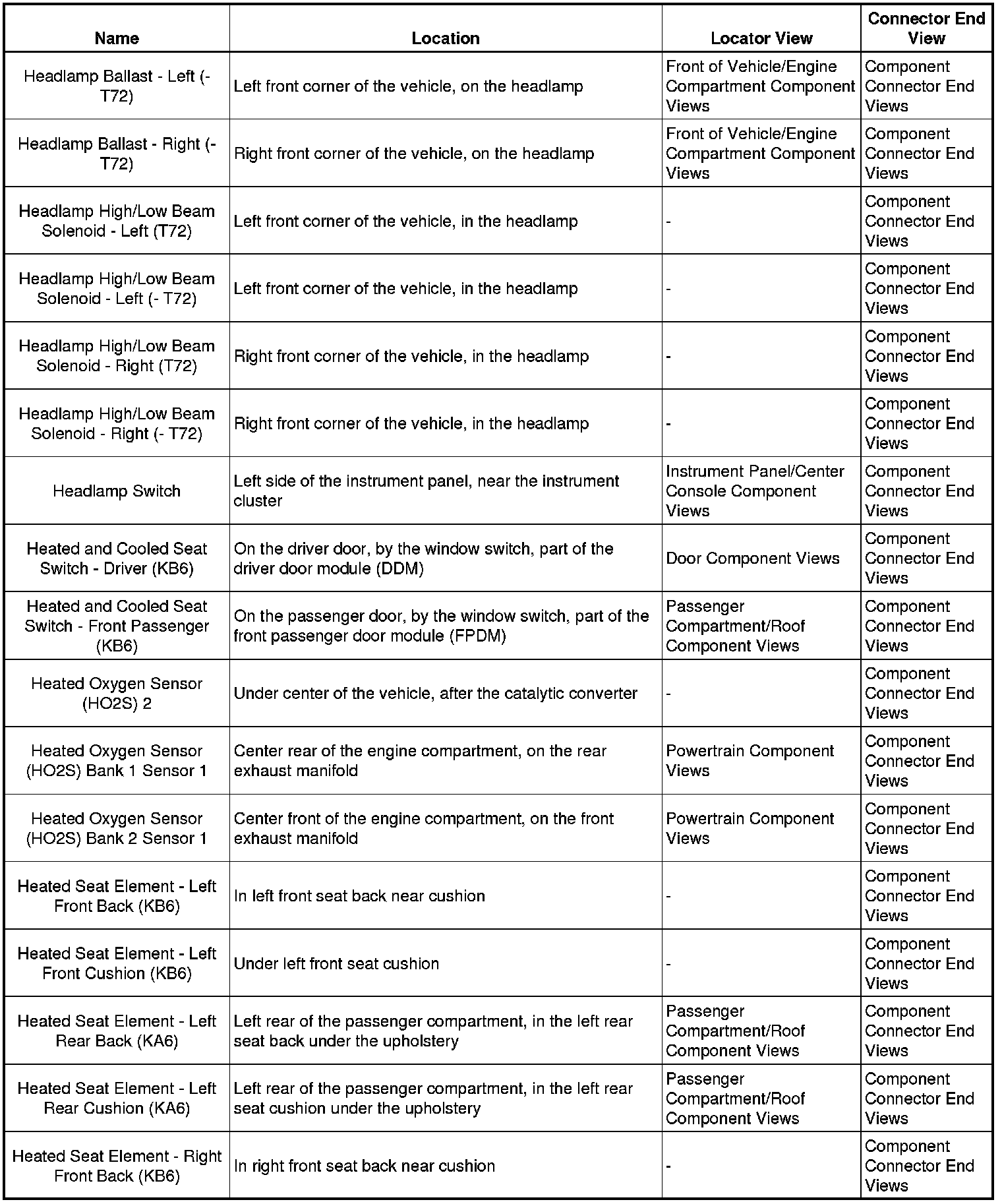

Fu - Ha:

He - He:

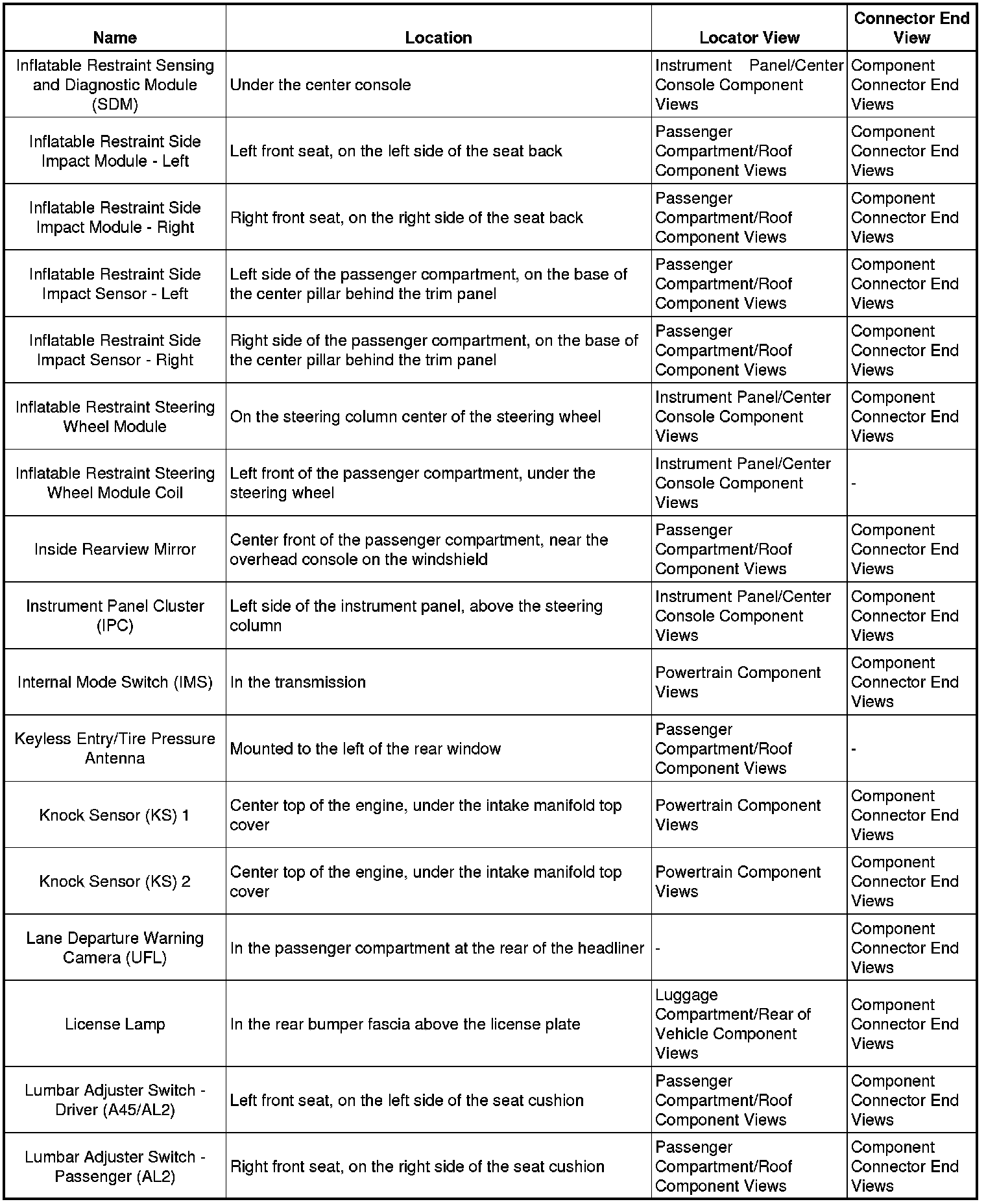

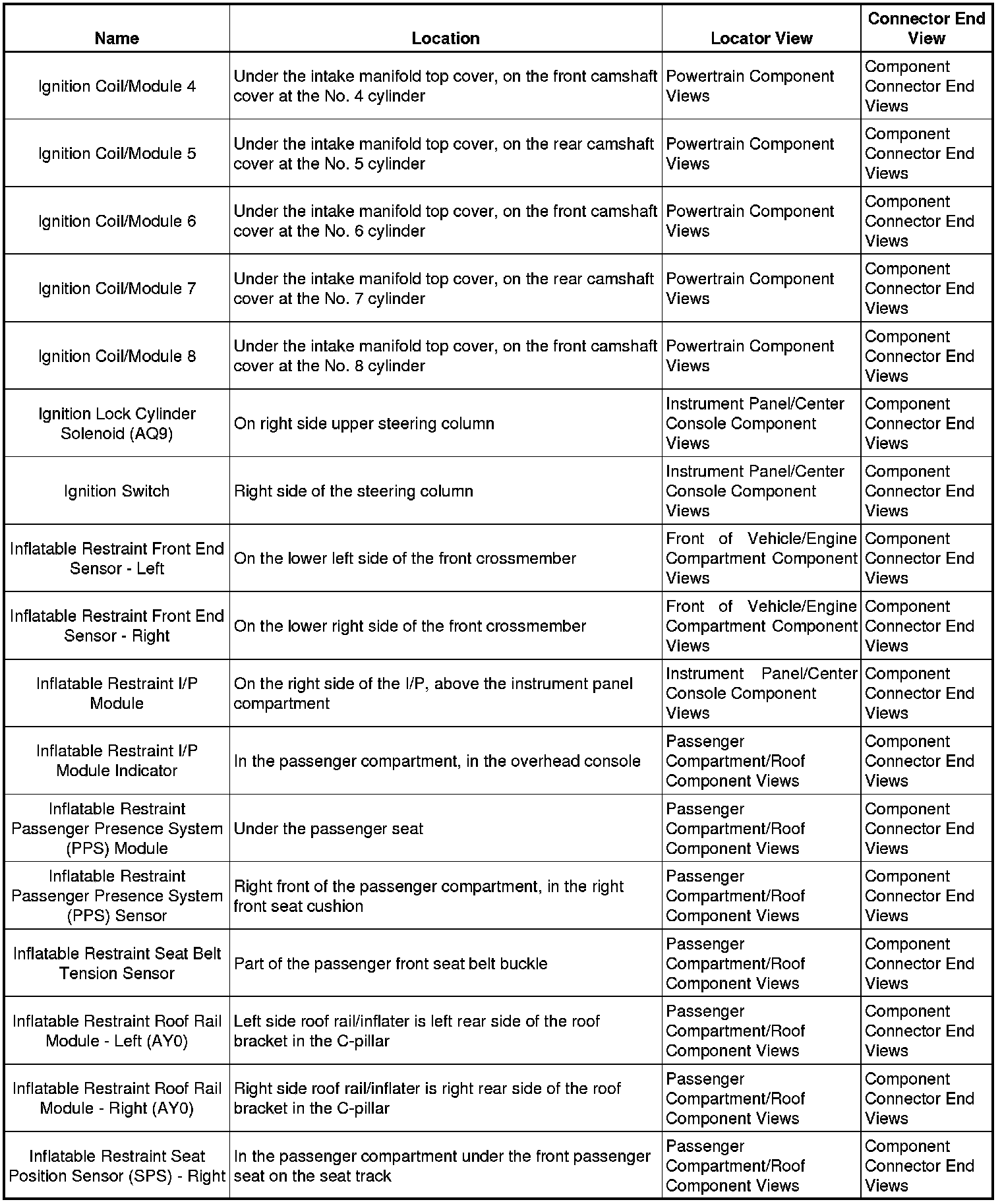

He - Ig:

Ig - In:

In - Lu:

Ma - Ob:

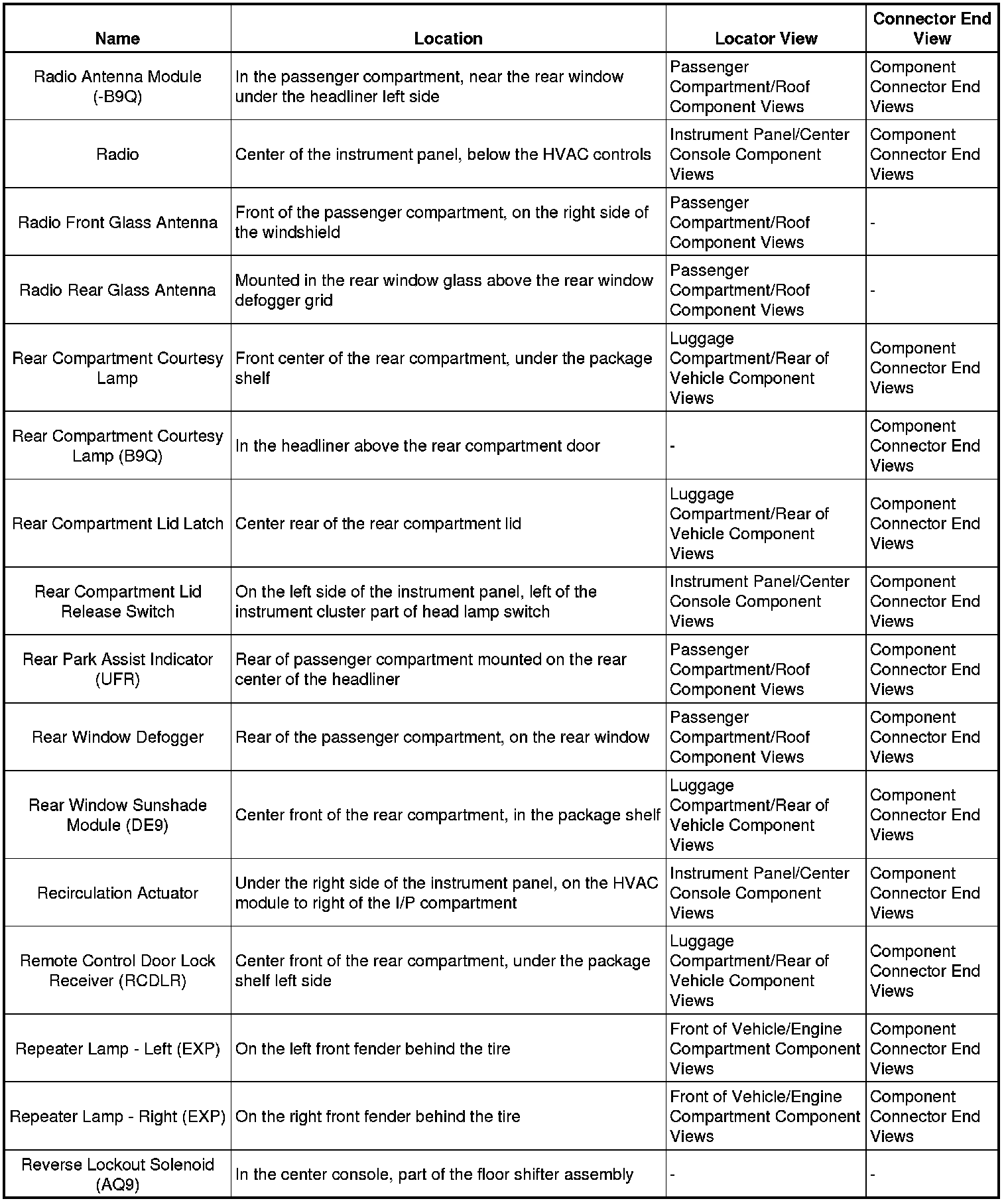

Ou - Ra:

Ra - Re:

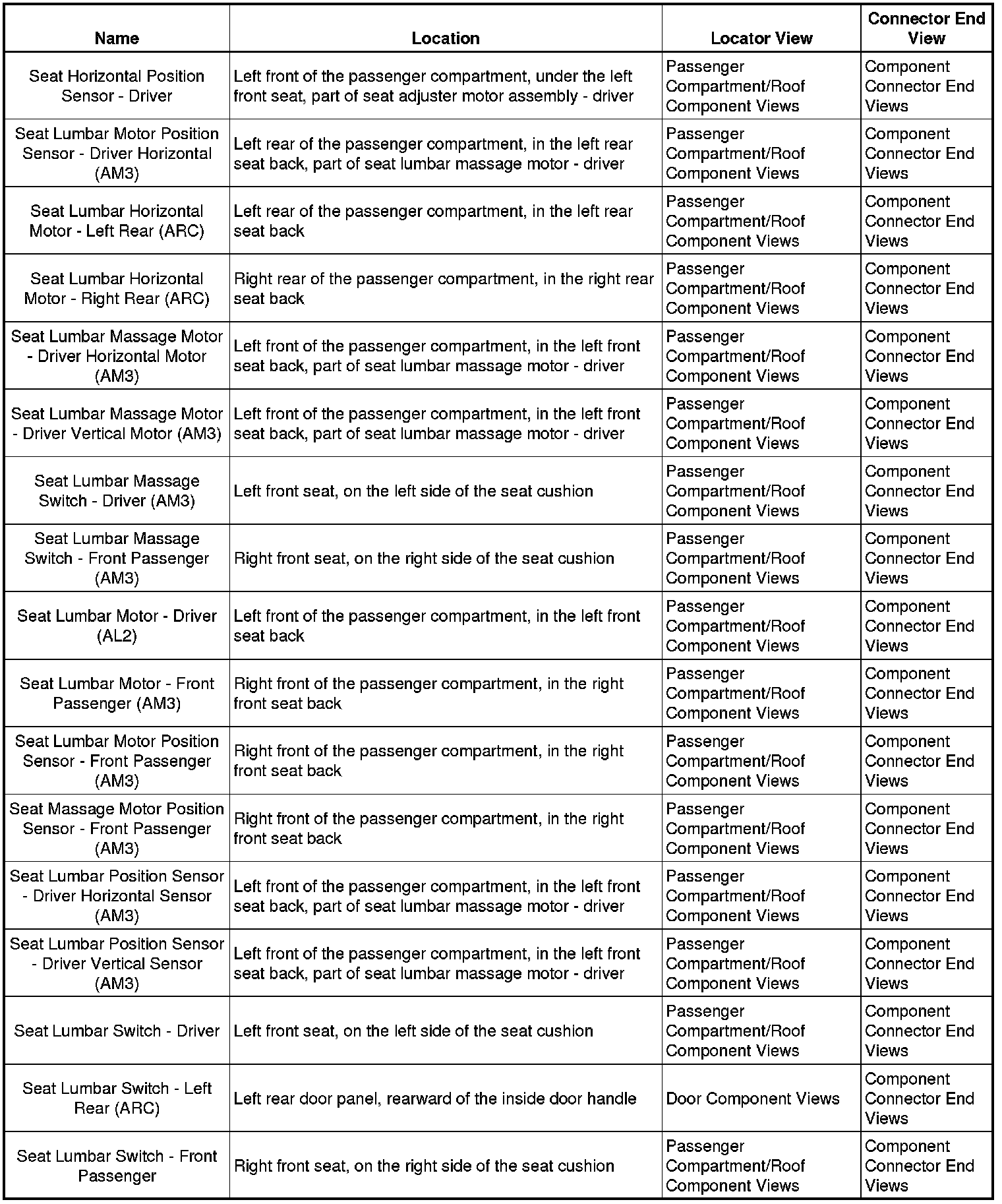

Ro - Se:

Se - Se:

Se - Sp:

Sp - Su:

Su - Th:

Th - TV:

TV - Wi:

Wi - Ya:
