Timing Chain Tensioner

Timing Chain Tensioner Torque

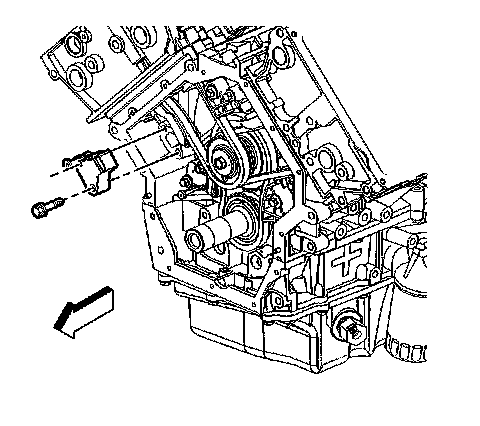

Primary Camshaft Drive Chain Tensioner






Important: Ensure the tensioner release lever is facing outward.


Tighten the primary camshaft drive chain tensioner bolts to 25 N.m (18 lb ft)

Secondary Camshaft Drive Chain Tensioner

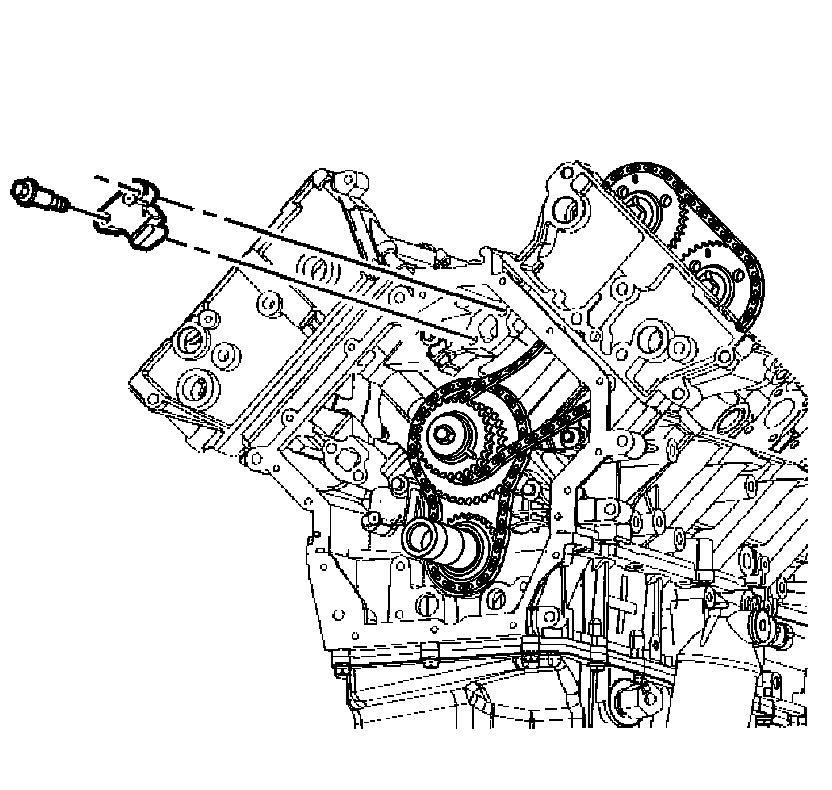

Left Side






Important: Ensure the tensioner release lever is facing outward.


Tighten the secondary camshaft drive chain tensioner bolts to 25 N.m (18 lb ft)

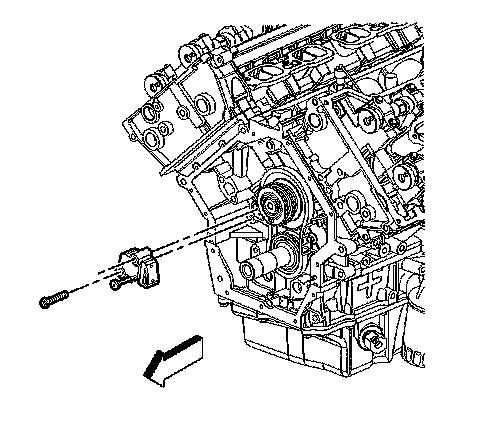

Right Side






Important: Ensure the tensioner release lever is facing outward.


Tighten the secondary camshaft drive chain tensioner bolts to 25 N.m (18 lb ft)
