Camshaft Position Sensor Replacement - Bank 2 (Left Side) Intake

Camshaft Position Sensor Replacement - Bank 2 (Left Side) Intake

Removal Procedure

1. Turn the ignition OFF.

Important: Do not disconnect the power steering fluid lines/hoses from the reservoir.


2. Remove the power steering fluid reservoir bolts and reposition the power steering fluid reservoir in order to provide access. Refer to Remote Power Steering Fluid Reservoir Replacement (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6) (Service and Repair)Remote Power Steering Fluid Reservoir Replacement (LH2 - Gas, 8 Cylinder, 4.6L, SFI, V8, DOHC, HO) (Service and Repair) .

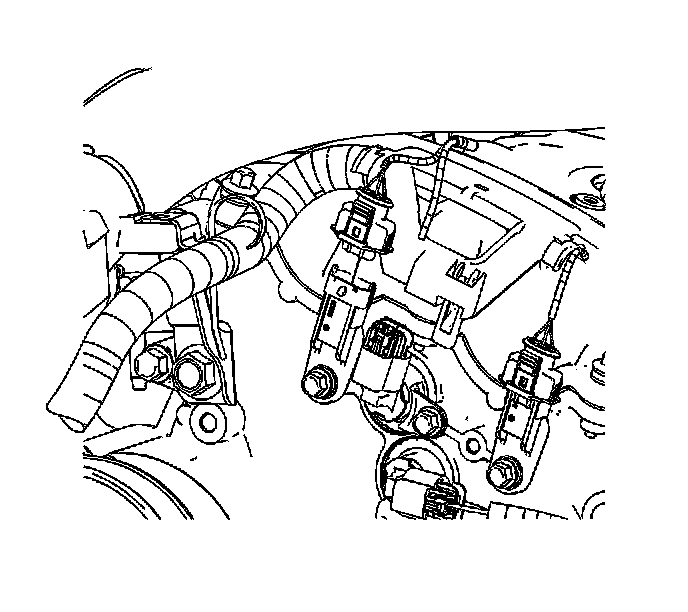

3. Remove the camshaft position (CMP) sensor electrical connector.




4. Remove the CMP sensor bolt.
5. Remove the CMP sensor.



Installation Procedure





1. Install the CMP sensor.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the CMP sensor bolt.

Tighten the CMP sensor bolt to 10 N.m (89 lb in).





3. Install the CMP sensor electrical connector.
4. Install the power steering fluid reservoir. Refer to Remote Power Steering Fluid Reservoir Replacement (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6) (Service and Repair)Remote Power Steering Fluid Reservoir Replacement (LH2 - Gas, 8 Cylinder, 4.6L, SFI, V8, DOHC, HO) (Service and Repair) .
