Electrical Diagrams



Engine Controls Schematics

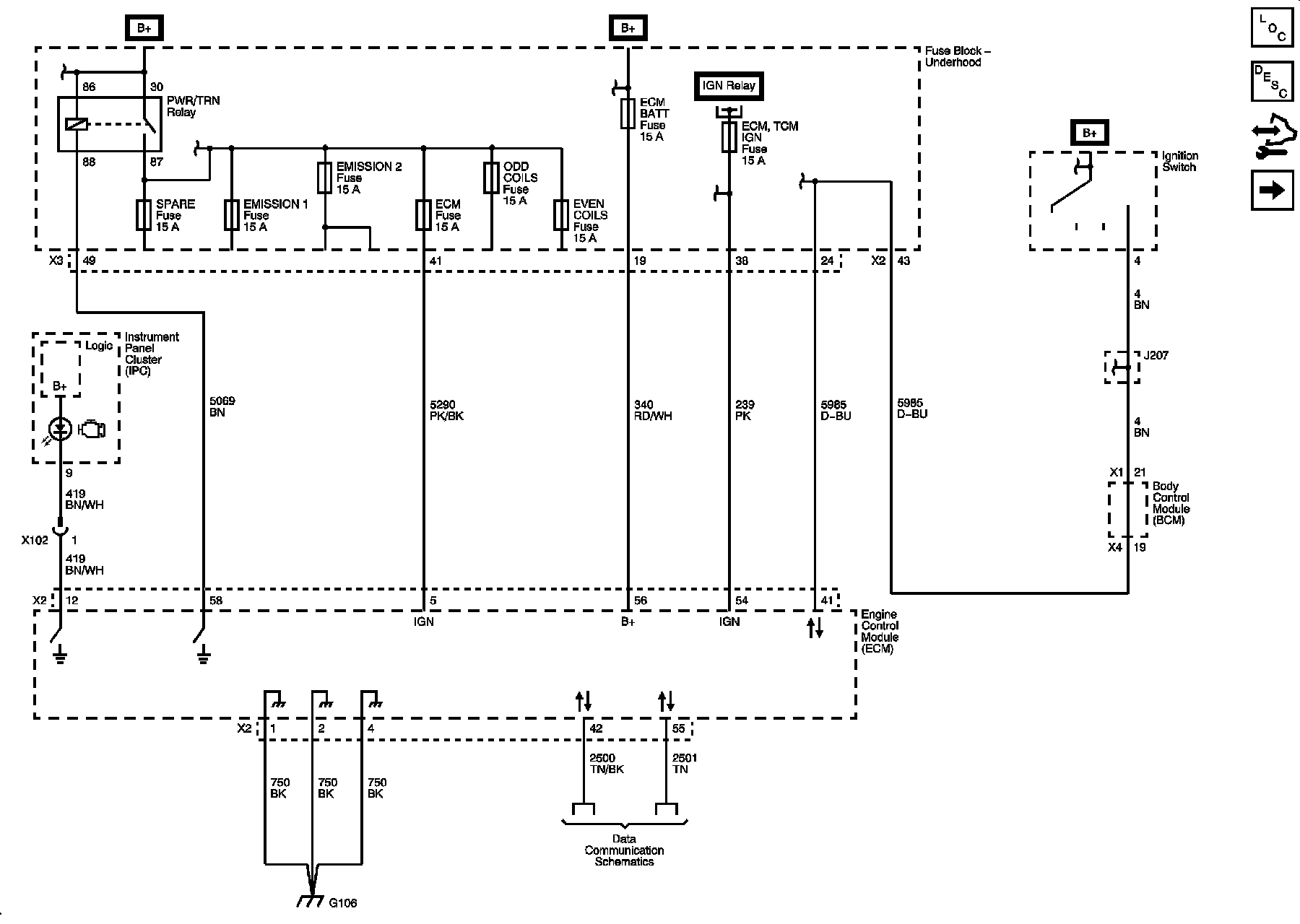

Module Power, Ground, Serial Data and MIL

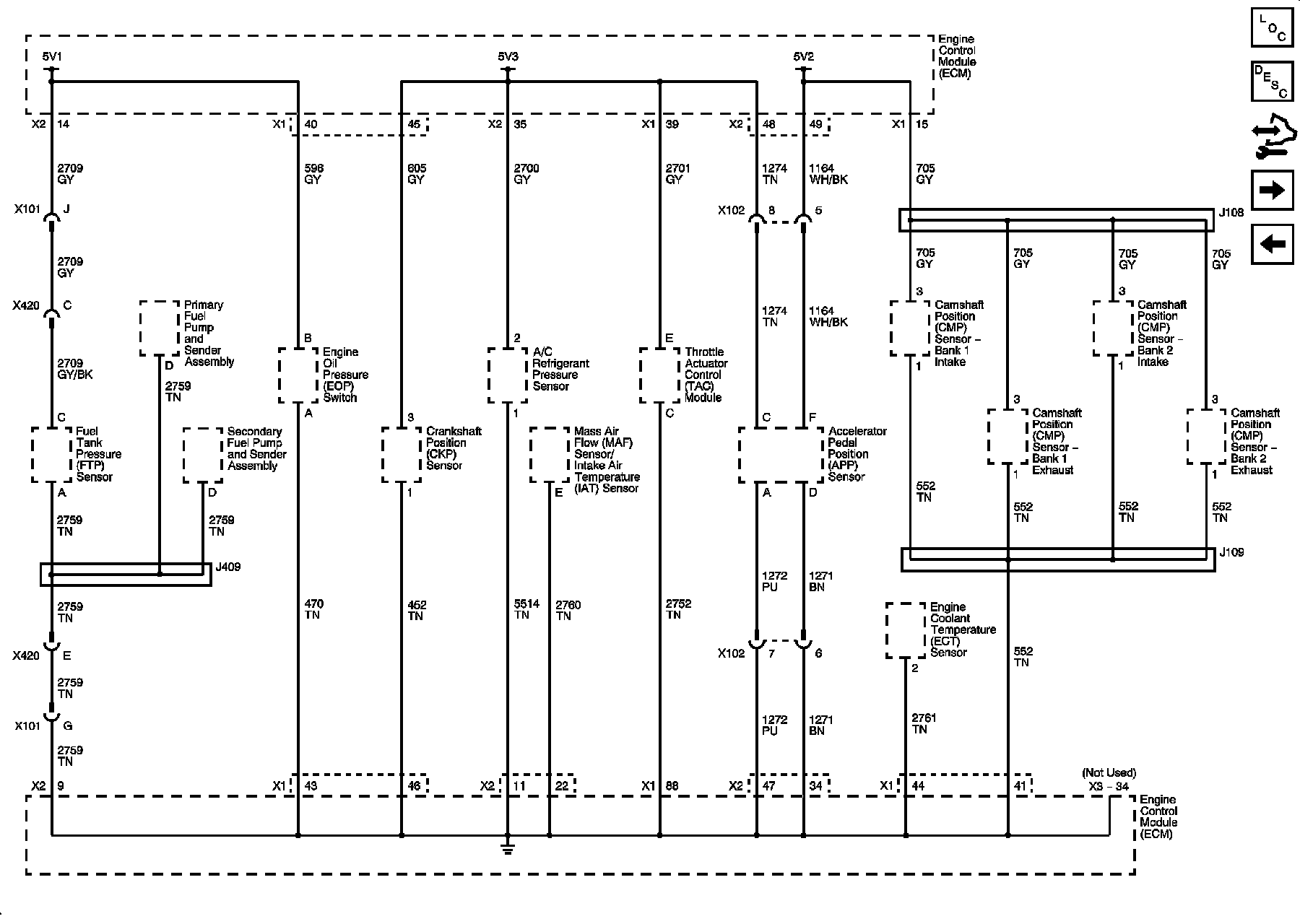

Engine Data Sensors - 5-Volt Reference






Engine Data Sensors - MAF and Engine Coolant Temperature Sensor

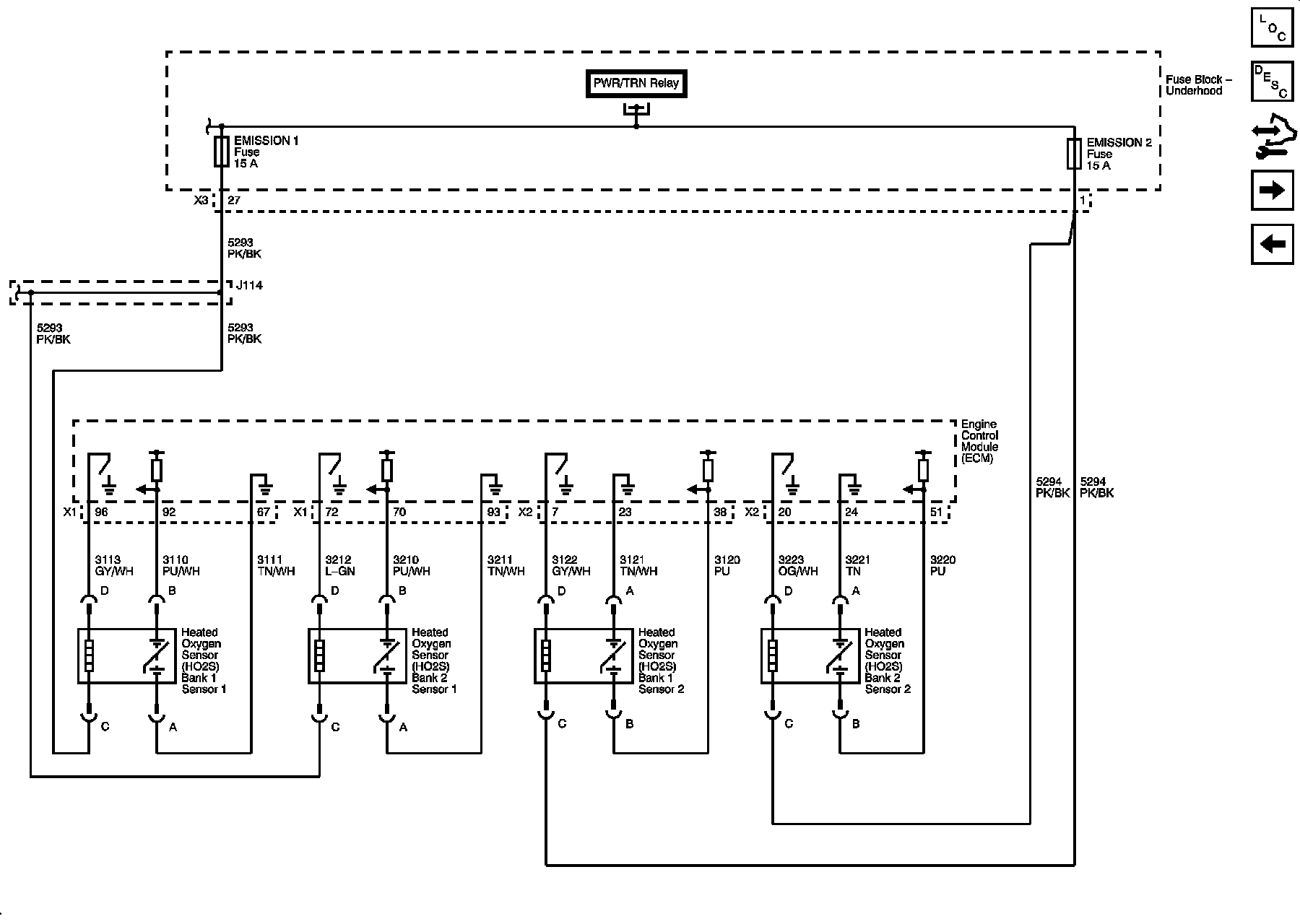

Engine Data Sensors - Oxygen Sensors






Engine Data Sensors - Throttle Actuator Controls






Ignition Controls - Bank 1 Ignition Coils






Ignition Controls - Bank 2 Ignition Coils

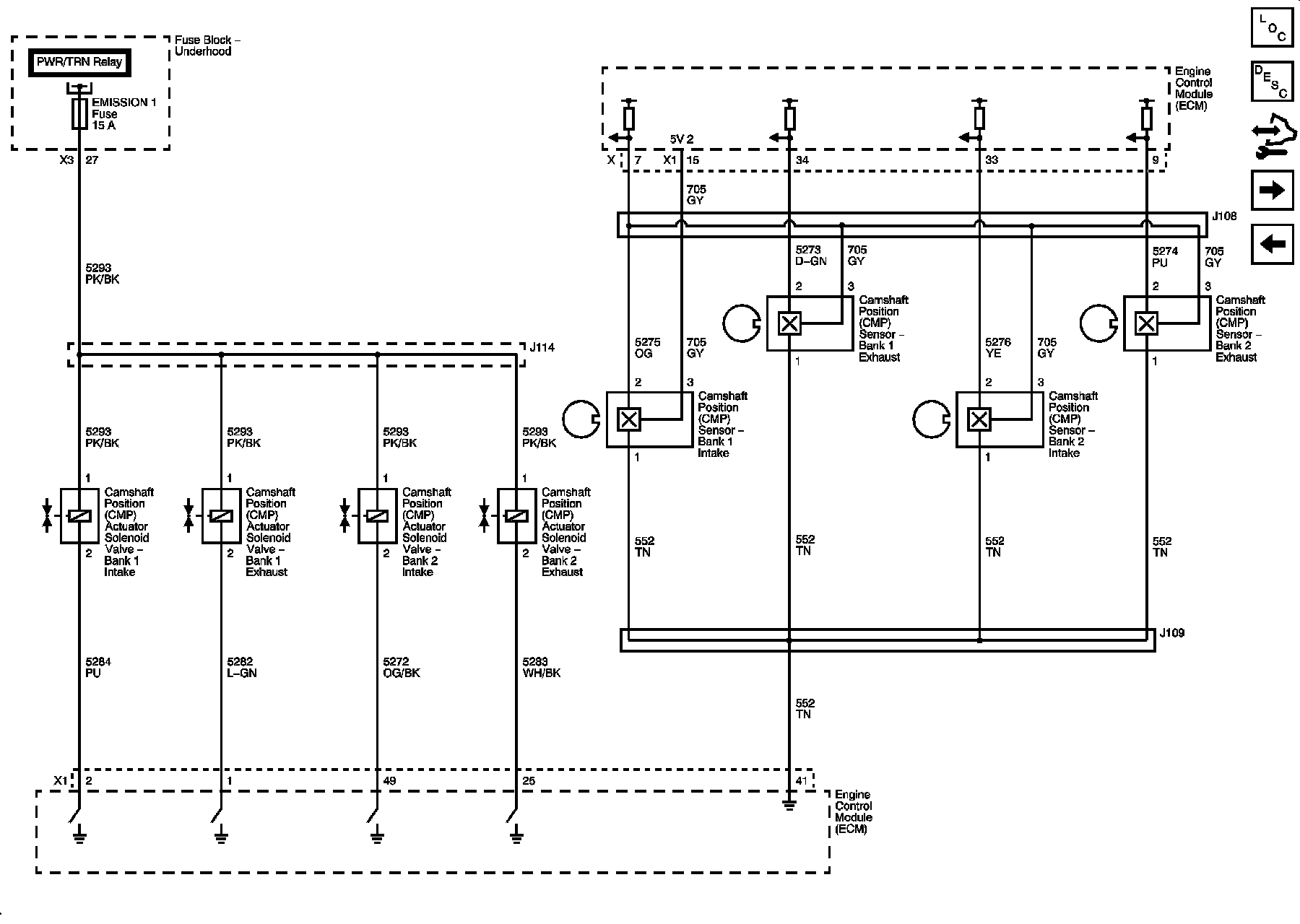

Ignition Controls - CMP Sensors and Solenoids






Crankshaft Position (CKP) and Knock Sensors

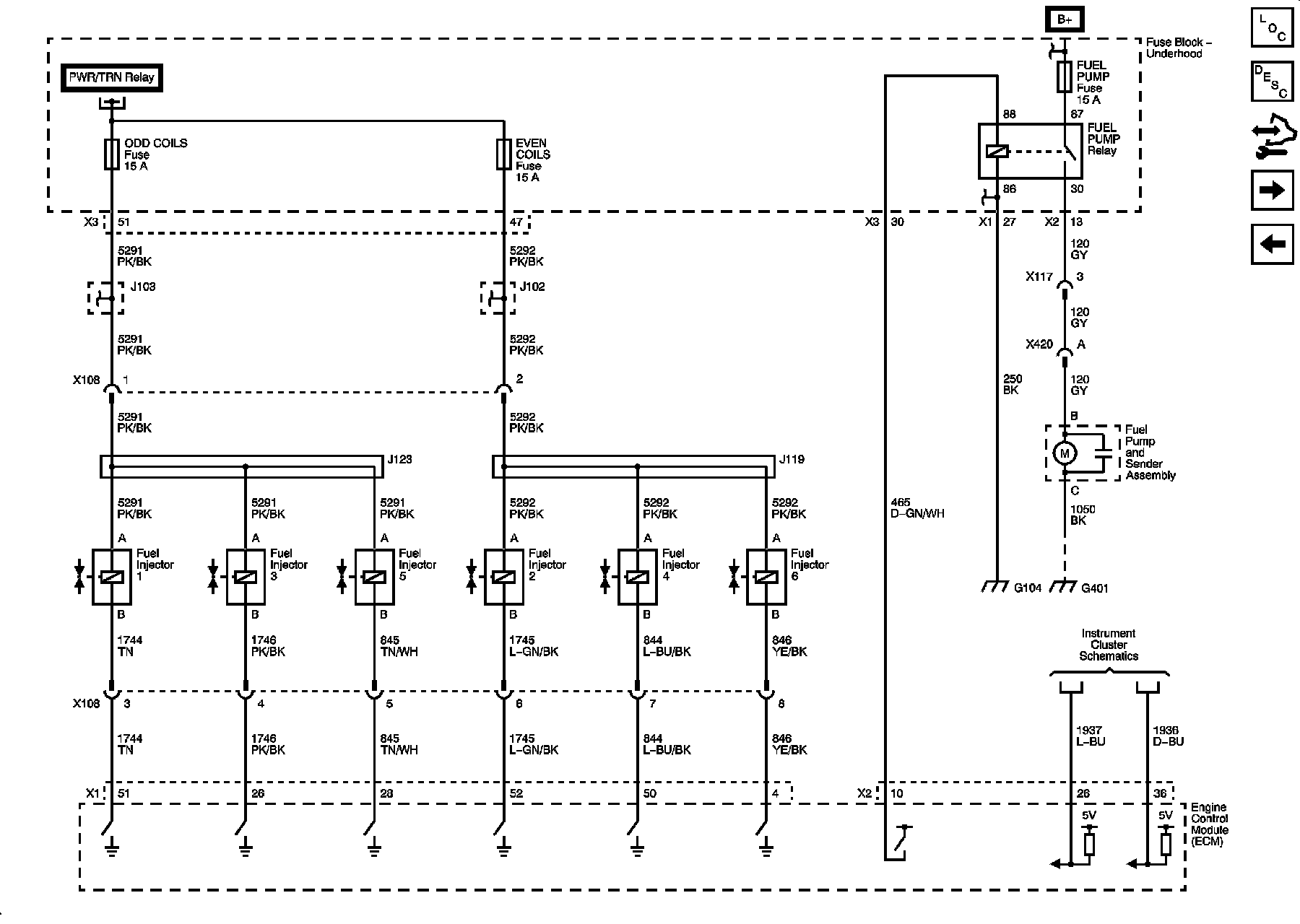

Fuel Controls - Fuel Pump and Injectors

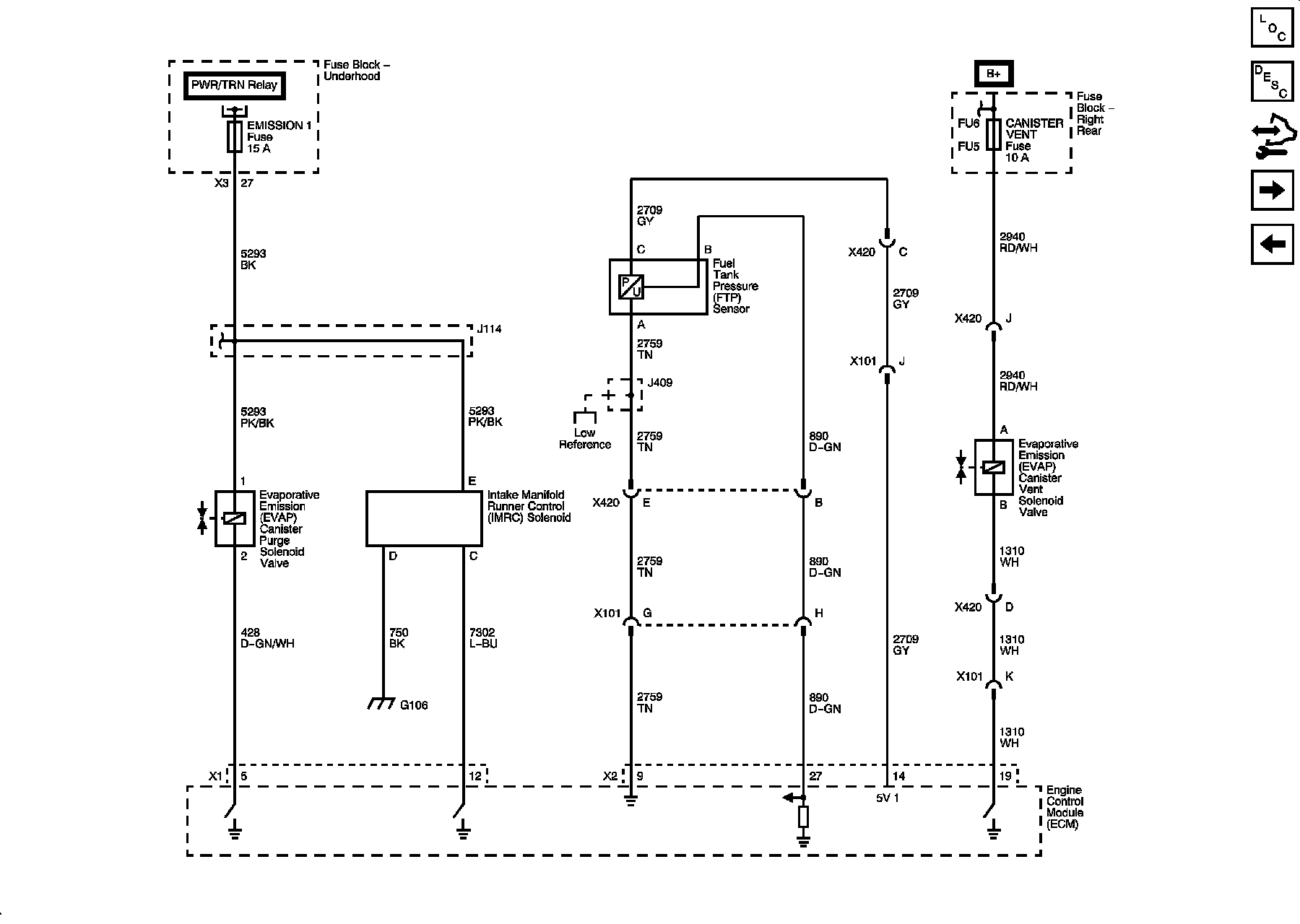

Fuel Controls - EVAP Controls






Controlled/Monitored Subsystem References
