Battery Tray Replacement (LHD)



Battery Tray Replacement (LHD)

Removal Procedure





1. Remove the battery. Refer to Battery Replacement (LHD) (Battery Replacement)Battery Replacement (RHD) (Battery Replacement (RHD)) .

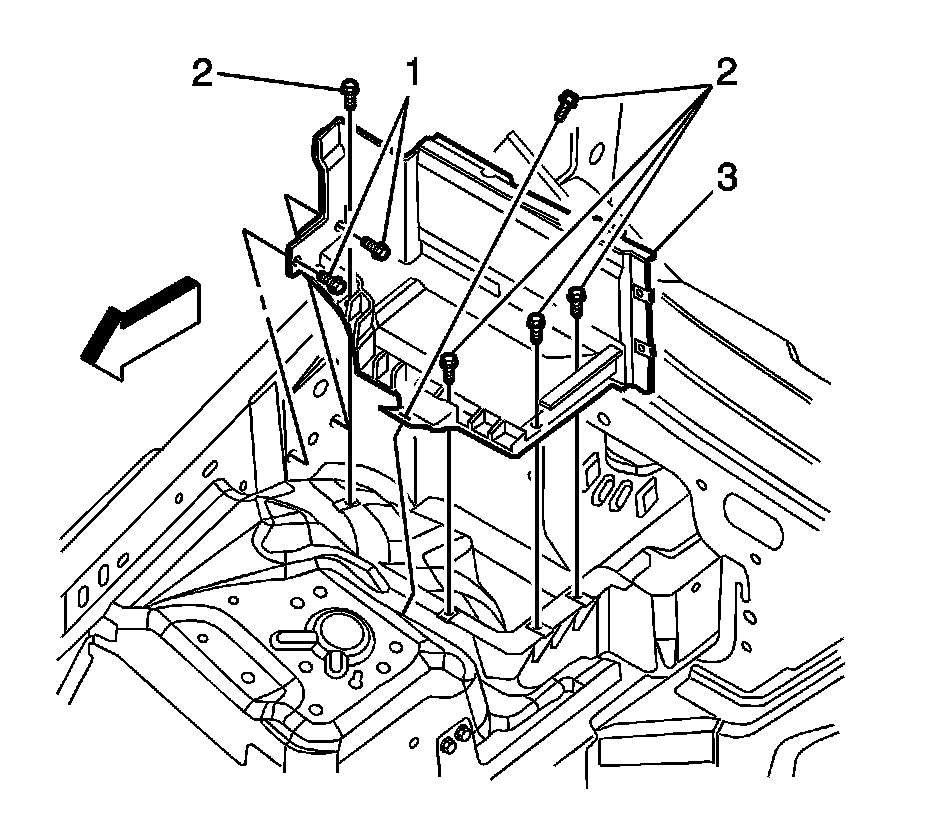

2. Remove the battery tray bolts (1, 2).
3. Remove the battery tray (3) from the vehicle.



Installation Procedure





1. Install the battery tray (3) into the vehicle.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the battery tray bolts (1, 2).

Tighten the bolts to 6 N.m (53 lb in).

3. Install the battery. Refer to Battery Replacement (LHD) (Battery Replacement)Battery Replacement (RHD) (Battery Replacement (RHD)) .
