Differential Mount: Service and Repair



Differential Housing Support Bushing Replacement (Solid Rubber Bushing)

Tools Required

J 45007 Bushing Remover/Installer


Removal Procedure





1. Remove the differential assembly. Refer to Differential Replacement (Differential Replacement) .

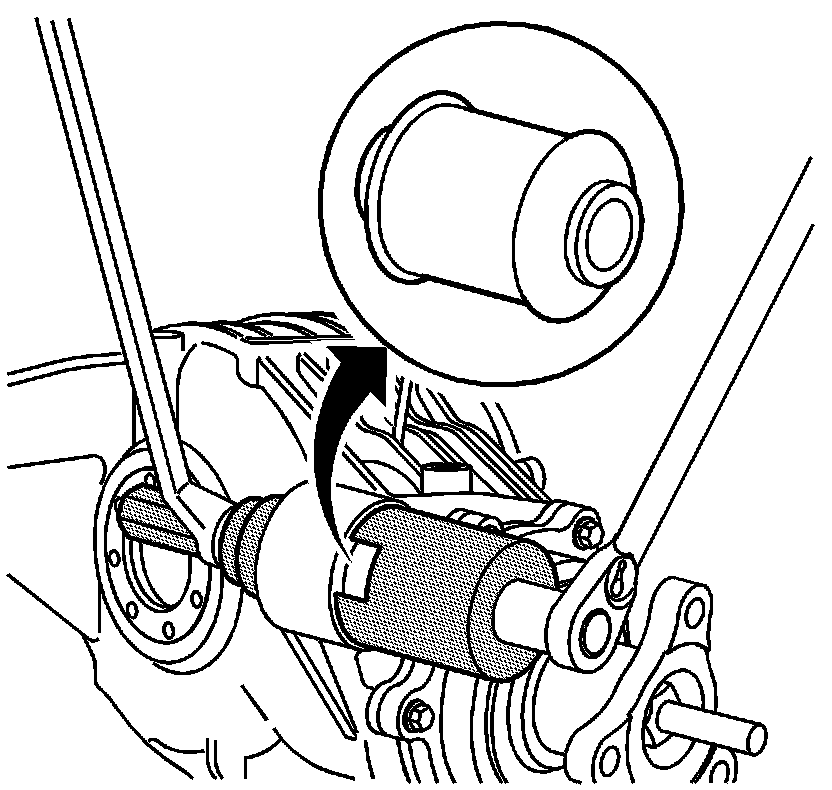

2. Using the J 45007 , remove the housing support bushing.



Installation Procedure





1. Using the J 45007 , install the housing support bushing.
2. Install the differential assembly. Refer to Differential Replacement (Differential Replacement) .
