Seat Temperature Control Module: Locations




Passenger Compartment/Roof Component Views

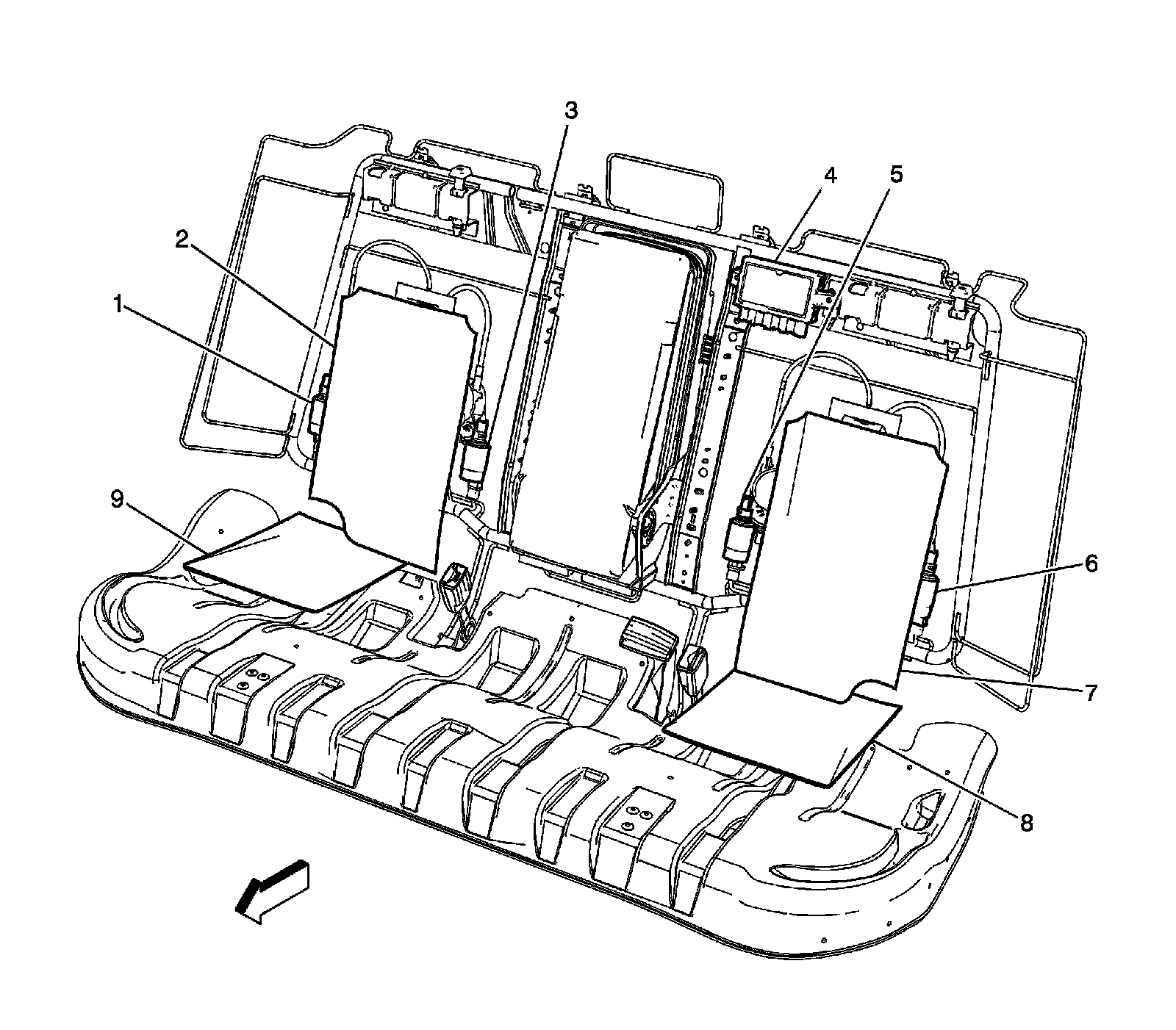

Rear Seat Components




1 - Seat Lumbar Vertical Motor - Left Rear (ARC)
2 - Heated Seat Element - Right Rear Back (KA6)
3 - Seat Lumbar Horizontal Motor - Left Rear (ARC)
4 - Heated Seat Module - Rear (KA6)
5 - Seat Lumbar Horizontal Motor - Right Rear (ARC)
6 - Seat Lumbar Vertical Motor - Right Rear (ARC)
7 - Heated Seat Element - Left Rear Back (KA6)
8 - Heated Seat Element - Left Rear Cushion (KA6)
9 - Heated Seat Element - Right Rear Cushion (KA6)

Driver Seat




1 - Inflatable Restraint Side Impact Module - Left
2 - Seat Back Ventilation Heat and Cool Module - Driver (KB6)
3 - Seat Lumbar Motor - Driver (AL2)
4 - Seat Recline Motor - Driver (AG1/A45)
5 - Seat Lumbar Switch - Driver (AL2/A45)
6 - Memory Seat Module (MSM) (A45/AM3/KB6)
7 - Seat Cushion Ventilation Heat and Cool Module - Driver (KB6)
8 - Seat Belt Switch - Left
9 - Seat Rear Vertical Motor - Driver
10 - Seat Rear Vertical Position Sensor - Driver (A45)
11 - Seat Horizontal Motor - Driver
12 - Seat Adjuster Motor Assembly - Driver (AG1/A45)
13 - Seat Horizontal Position Sensor - Driver (A45)
14 - Seat Front Vertical Position Sensor - Driver (A45)
15 - Seat Adjuster Switch - Driver (AG1/A45)
16 - Seat Lumbar Massage Switch - Driver (AM3)
17 - Seat Lumbar Massage Motor - Driver (AM3)
18 - Seat Recline Position Sensor - Driver (A45)

Passenger Seat




1 - Seat Back Ventilation Heat and Cool Module - Passenger (KB6)
2 - Inflatable Restraint Side Impact Module - Right
3 - Seat Lumbar Motor - Front Passenger (AL2)
4 - Seat Adjuster Switch - Passenger (AG2)
5 - Seat Lumbar Massage Switch - Front Passenger (AM3)
6 - Inflatable Restraint Passenger Presence System (PPS) Sensor
7 - Seat Belt Switch - Right
8 - Inflatable Restraint Seat Position Sensor (SPS) - Right
9 - Climate Control Seat Module - Front (KB6)
10 - Seat Cushion Ventilation Heat and Cool Module - Front Passenger (KB6)
11 - Inflatable Restraint Passenger Presence System (PPS) Sensor Connector
12 - Seat Horizontal Motor - Passenger
13 - Seat Front Vertical Motor - Passenger
14 - Seat Rear Vertical Motor - Passenger
15 - Seat Recline Motor - Front Passenger (AG2)
16 - Seat Lumbar Massage Motor - Front Passenger
