Axle Seals Replacement




Axle Seals Replacement

Special Tools
* J 39051-1 - Right Seal Driver
* J 39051-2 - Left Seal Driver

For equivalent regional tools, refer to Special Tools (Tools and Equipment).

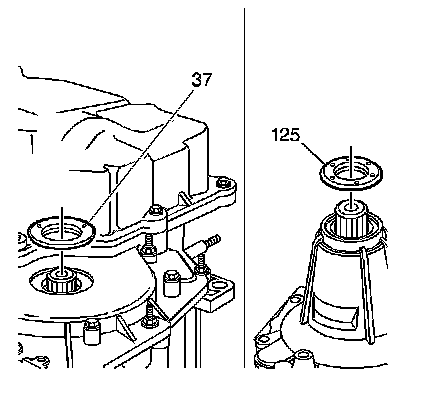

1. Using a screw driver remove the right and left axle seals (37, 125) by prying them out.

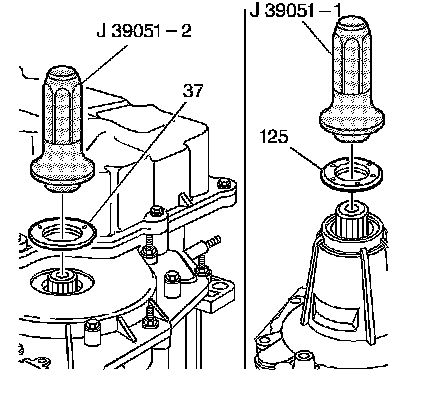

2. Using the J 39051-1 - right seal driver and the J 39051-2 - left seal driver , install the new axle seals (37, 125). Use the output shaft (57) to pilot the seals and the tool into the case. Ensure that the snap rings are installed on the output shaft.
