Control Valve Upper Body Assemble

Control Valve Upper Body Assemble

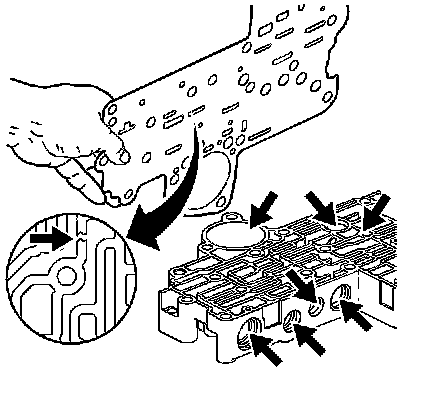

1. Inspect all valve body passages for debris, and then inspect the gasket for damage.





Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the automatic transmission fluid temperature sensor (350) and tighten to 3.4 Nm (30 lb in).




3. Install the following parts:

* The 1-2, 3-4 accumulator valves (301, 302)
* The bushing (303)
* The coiled spring pin (304)




4. Install the following parts:

* The 2-3 accumulator valve (306)
* The bore plug (307)
* The retainer clip (308)




5. Install the following parts:

* The actuator feed limit valve (309)
* The actuator feed limit valve spring (310)
* The spring retaining plate (311)




6. Install the following parts:

* The converter feed limit valve (312)
* The converter feed limit valve spring (313)
* The bore plug (307)
* The retaining clip (308)




7. Install the following parts:

* The torque converter clutch enable valve (322)
* The torque converter clutch enable valve spring (323)
* The bore plug (307)
* The retainer clip (308)




8. Install the following parts:

* The converter regulator valve (318)
* The converter regulator valve spring (319)
* The bore plug (307)
* The retainer clip (308)




9. Install the following parts:

* The converter clutch control spring (316)
* The converter clutch control valve (317)
* The coiled spring pin (304)
* The torque converter clutch solenoid valve (336)
* The spring retainer clip from the torque converter clutch solenoid valve (337)




10. Install the following parts:

* The pressure control solenoid filter and seal (338)
* The pressure control solenoid valve (339)
* The pressure control solenoid clamp (340)

11. Install the clamp bolt (15) and tighten to 11-13 Nm (8.0-9.5 lb ft).




12. Install the following parts:

* The 2-3 accumulator pin (348)
* The snap ring (349)
* The 2-3 accumulator piston spring (347)
* The accumulator piston and seal (345, 346)
* The 2-3 piston cushion spring (351)
