Reaction Carrier/Shell and Third Transmission




Reaction Carrier/Shell and Third Clutch Installation

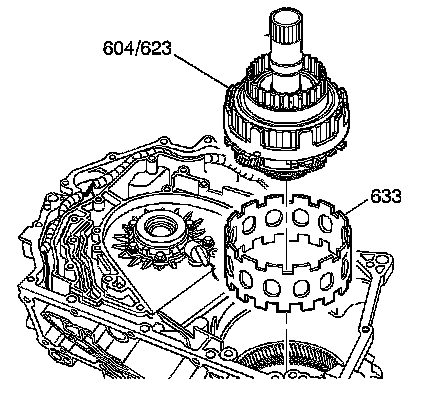

1. Inspect the reaction shell (633) for damage or wear.
2. Install the reaction shell (633) into the forward clutch housing, with the small teeth facing down.

Note: Following installation, the reaction carrier teeth must seat in the reaction shell.

3. Install the third clutch housing and reaction carrier assembly (604/623) into the case. Twist the housing to install and to insure proper seating.
