Luggage Compartment/Rear of Vehicle Component Views

Luggage Compartment/Rear of Vehicle Component Views

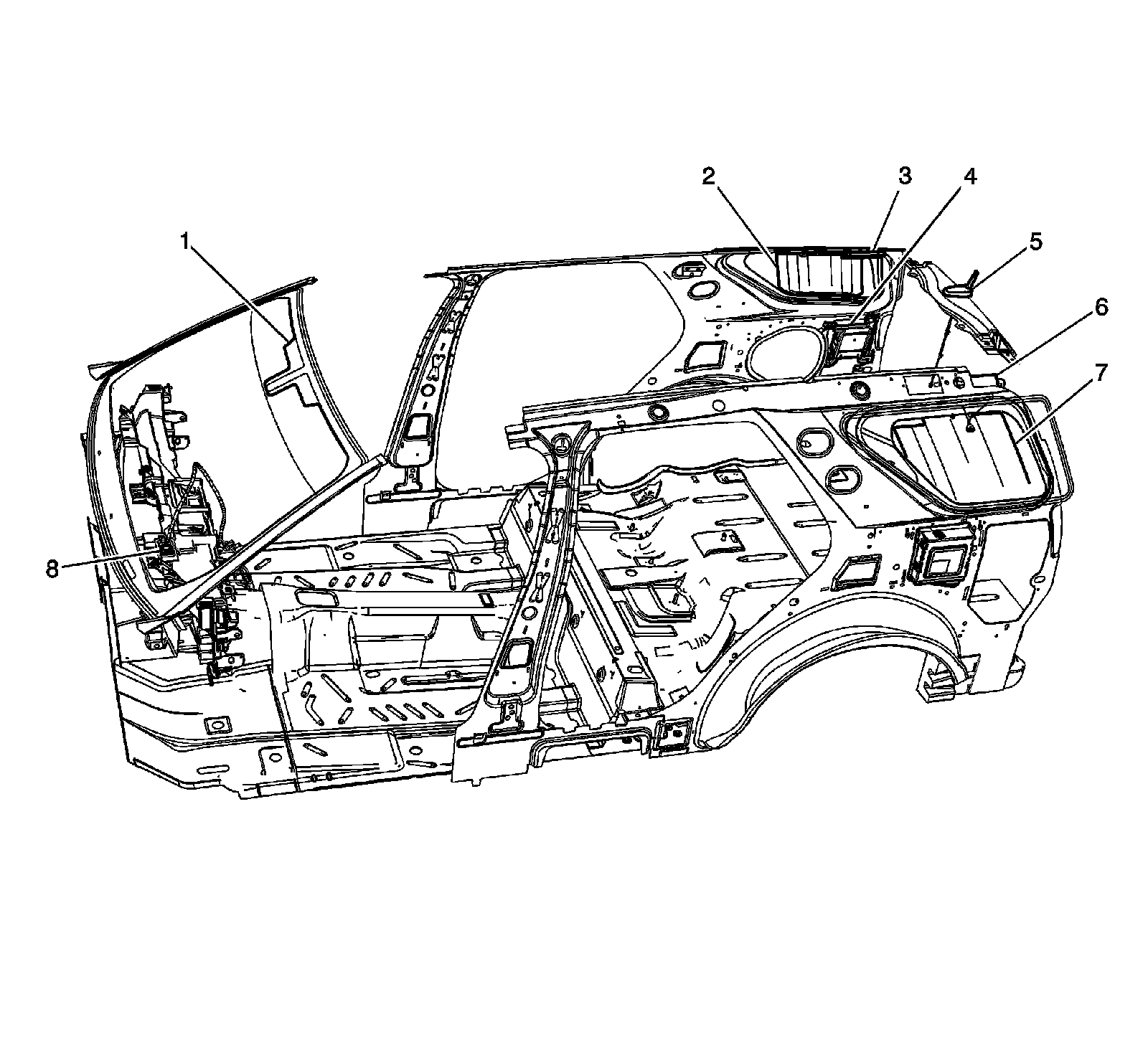

Antenna Components (without EXP)




1 - Front Windshield
2 - Radio Antenna - Right
3 - Radio Antenna Module - Right
4 - Digital Radio Receiver (U2K)
5 - Cellular, Navigation, and Digital Radio Antenna (U2K/UE1)
6 - Radio Antenna Module - Left
7 - Radio Antenna - Left
8 - Navigation Antenna (U2V/U2X/U2Y)

Antenna Components (EXP)




1 - Television Antenna - Right Front
2 - Television Antenna Amplifier - Right Front
3 - Television Antenna Amplifier - Right Rear
4 - Television Antenna - Right Rear
5 - Digital Radio Receiver (U2K)
6 - Television Antenna Amplifier - Left Rear
7 - Television Antenna - Left Rear
8 - Television Antenna Module (U2Y/U2X)
9 - Television Antenna Amplifier - Left Front
10 - Television Antenna - Left Front

Right Rear Cargo Area Components 1 of 5




1 - X408
2 - X401
3 - X410 (CF5)
4 - Data Link Resistor
5 - G401
6 - Digital Radio Receiver (U2K)
7 - Vehicle Communication Interface Module (VCIM) (UE1)
8 - Speaker - Subwoofer
9 - X411
10 - Electronic Suspension Control (ESC) Module (F55)
11 - JX304
12 - X414
13 - X416

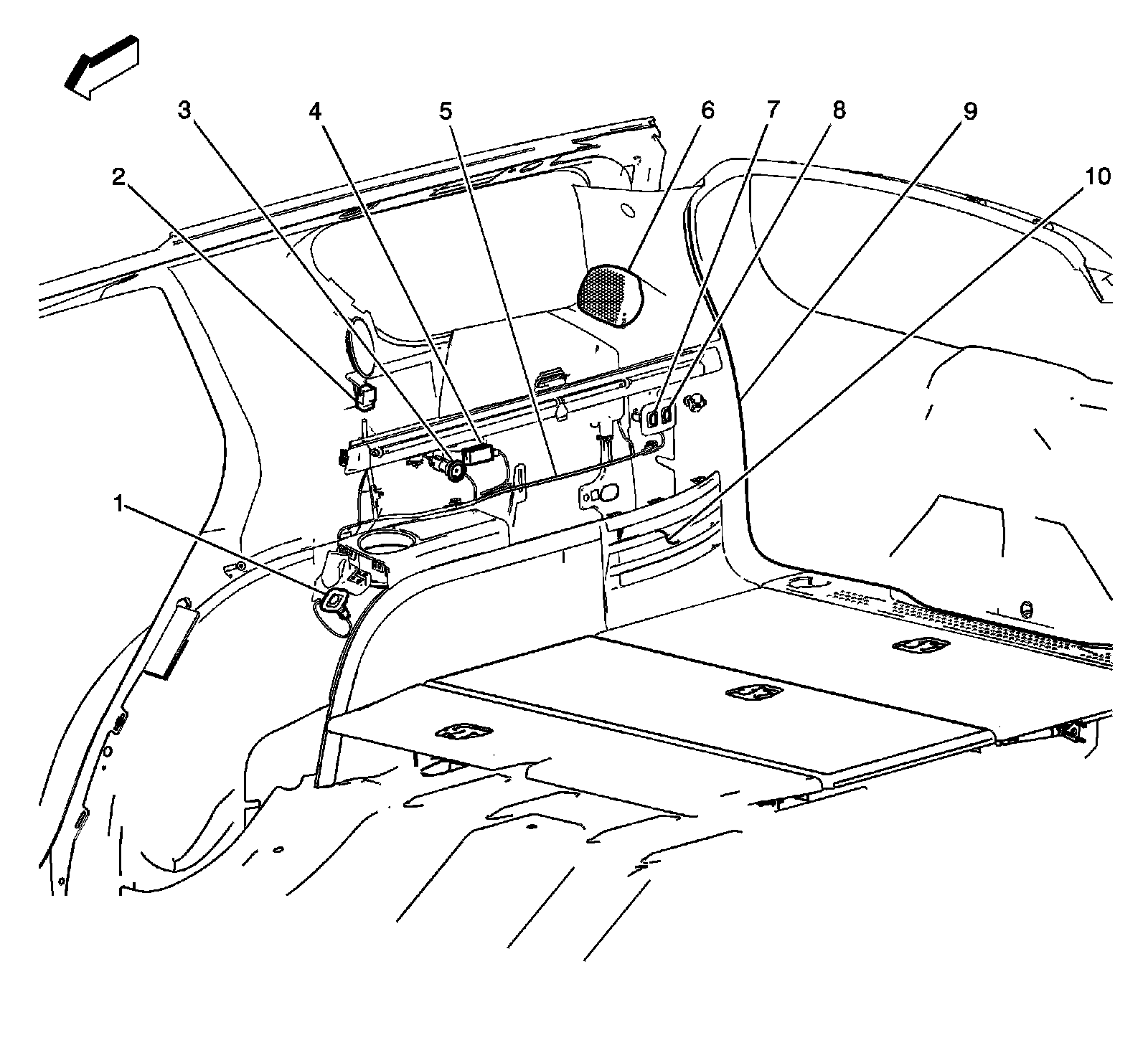

Right Rear Cargo Area Components 2 of 5




1 - Folding Seat Recline Switch (AM0)
2 - X416
3 - Accessory Power Outlet - Rear
4 - Remote Control Door Lock Receiver (RCDLR)
5 - J405 (AM0)
6 - Speaker - Right D-Pillar (UQS)
7 - Folding Seat Control Switch - Front (AM0)
8 - Folding Seat Control Switch - Rear (AM0)
9 - Right Rear Quarter Trim Panel
10 - Speaker - Subwoofer

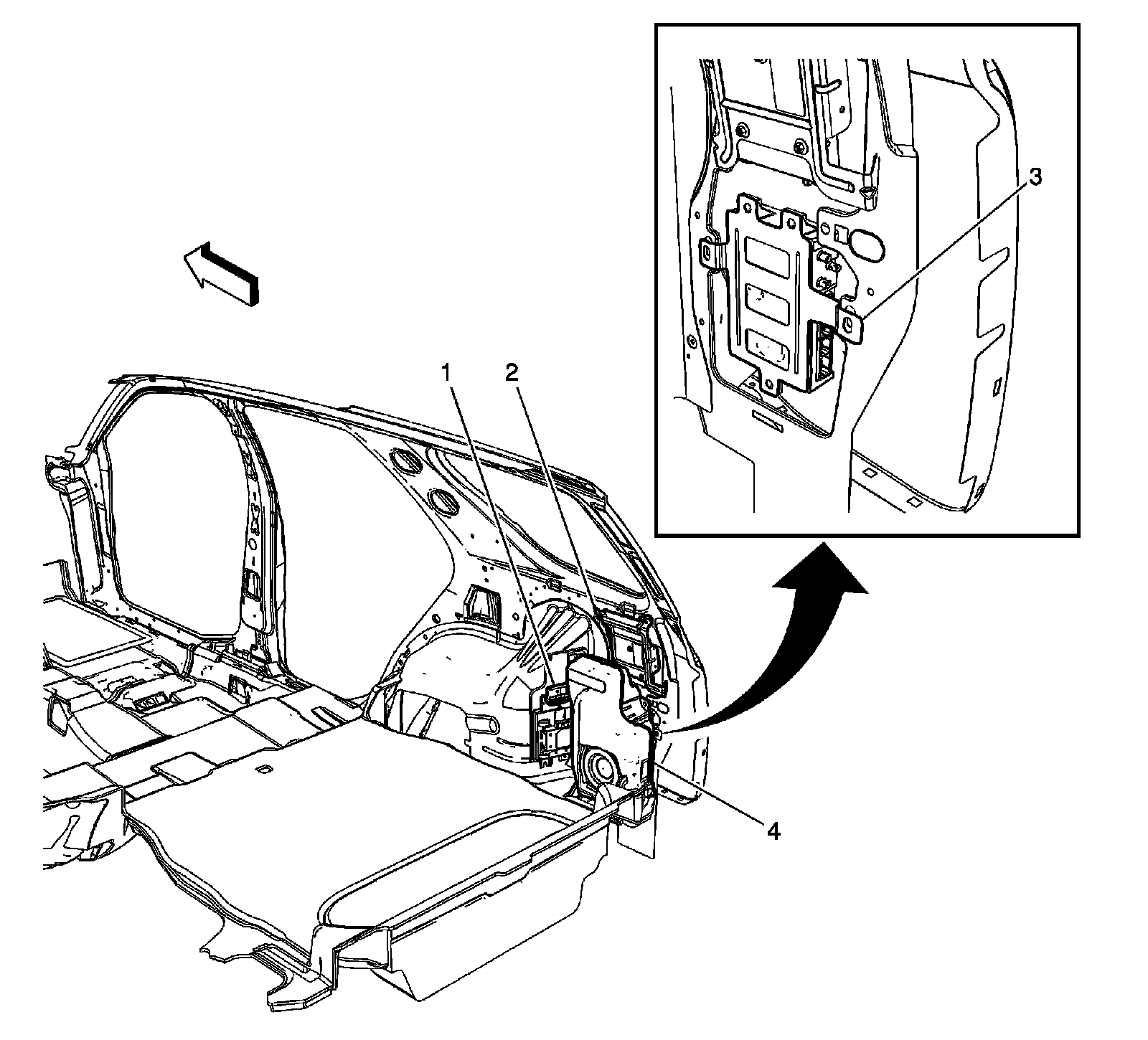

Right Rear Cargo Area Components 3 of 5




1 - Radio Antenna Module - Right
2 - Radio Antenna - Right
3 - Digital Radio Receiver (U2K)
4 - Auxiliary Body Control Module (XBCM) (EXP)
5 - Theft Deterrent Alarm Siren (UTA/UTC)

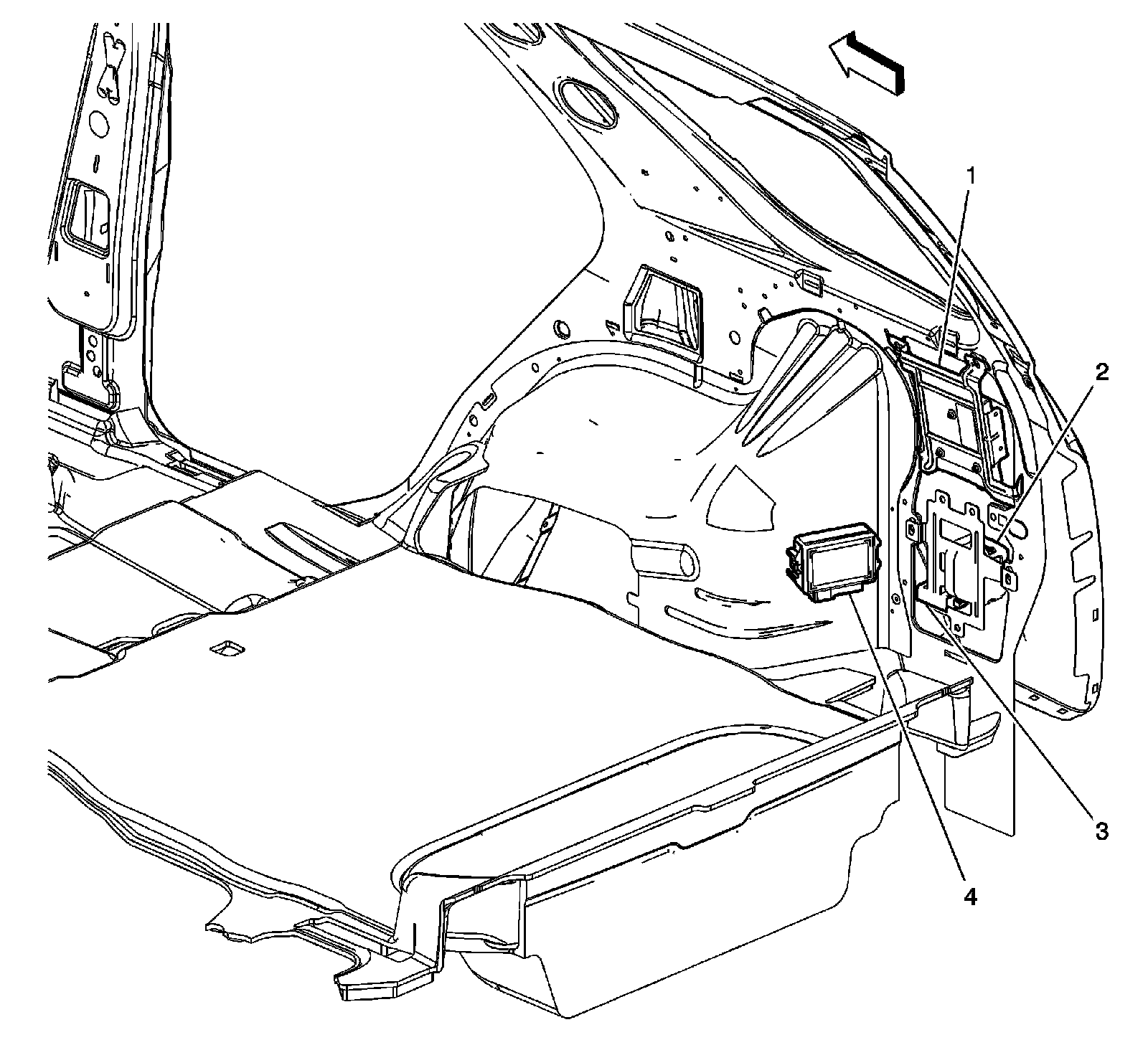

Right Rear Cargo Area Components 4 of 5




1 - Electronic Suspension Control (ESC) Module (F55)
2 - Digital Radio Receiver (U2K)
3 - Vehicle Communication Interface Module (VCIM) - (UE1)
4 - Speaker - Subwoofer

Right Rear Cargo Area Components 5 of 5




1 - Digital Radio Receiver (U2K)
2 - Theft Deterrent Alarm Siren (UTA/UTC)
3 - Vehicle Inclination Sensor (UTA/UTC)
4 - Auxiliary Body Control Module (XBCM) (EXP)

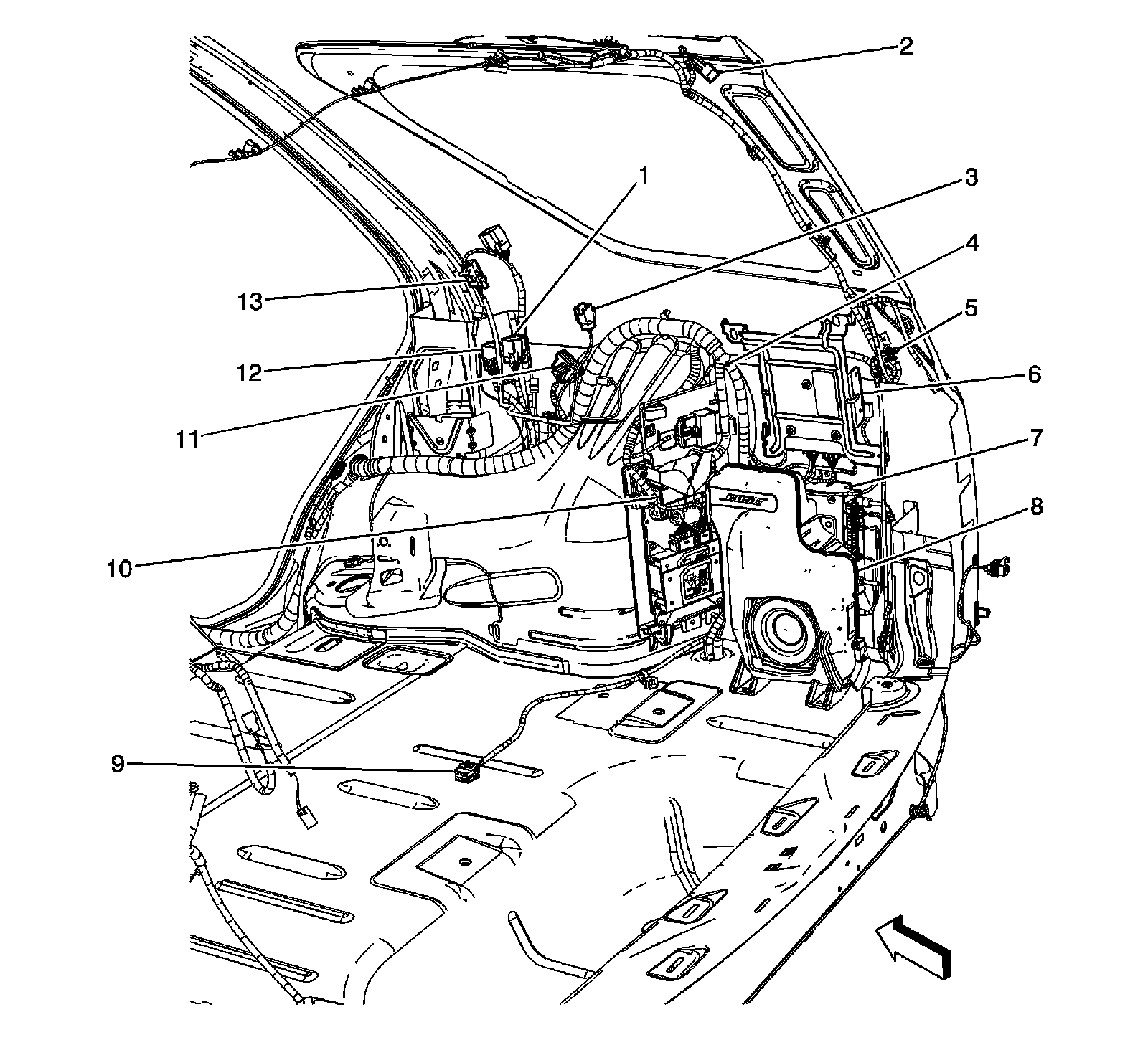

Left Rear Cargo Area




1 - Liftgate Ajar Switch
2 - Liftgate Module (LGM)
3 - Liftgate Motor Assembly
4 - Power Liftgate Clutch (PLC)
5 - Audio Amplifier (UQA/UQS)
6 - Rear Object Sensor Control Module
7 - Television Antenna Module (U2Y/U2X)
8 - Blower Motor Resistor Auxiliary (C57)
9 - Blower Motor-Auxiliary (C57)
10 - HVAC Control Module-Auxiliary (C57)

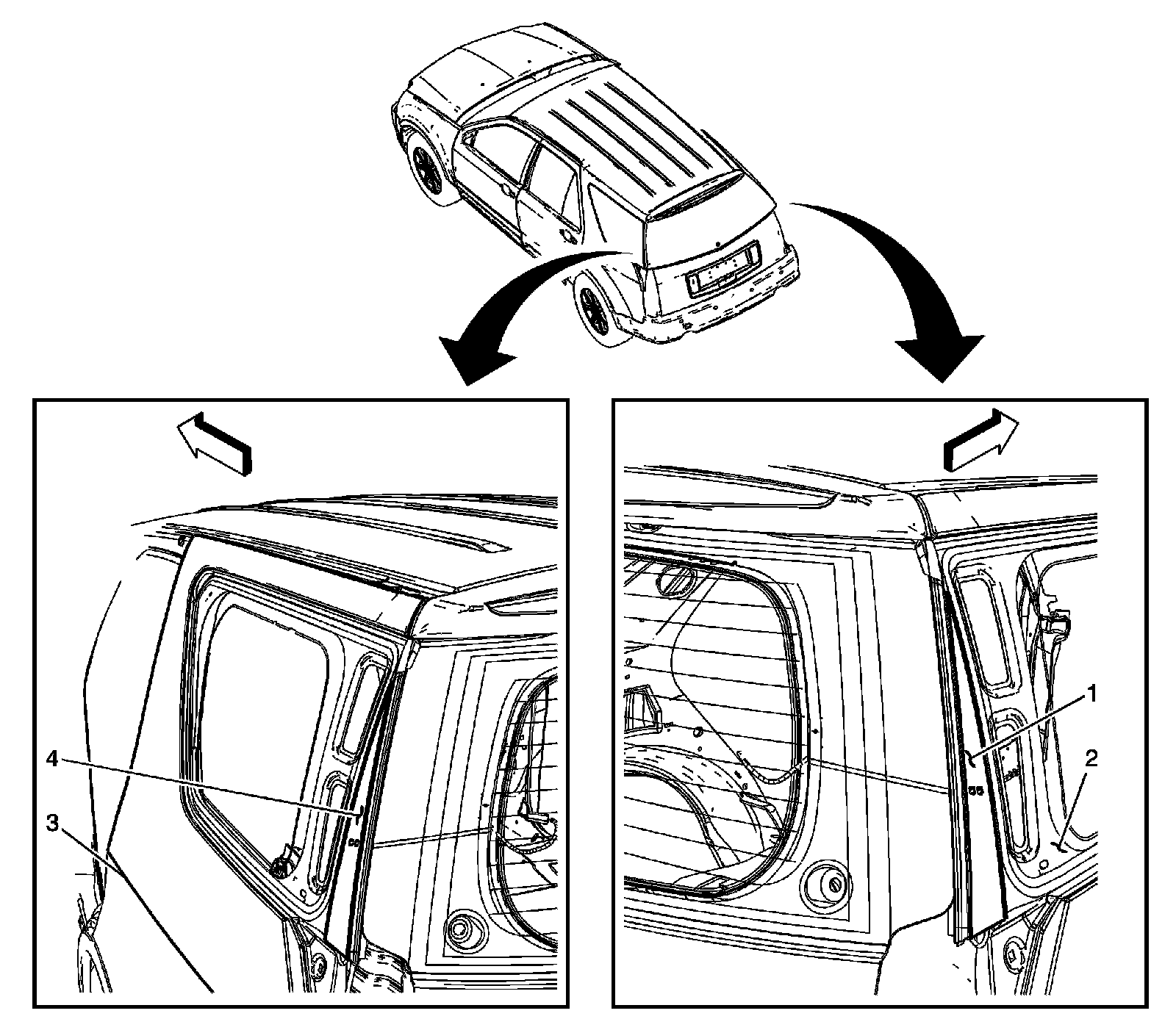

Outer Upper Liftgate Components




1 - Liftgate Object Sensor - Right
2 - Inner Side Panel - Right Rear
3 - Quarter Panel - Left Rear
4 - Liftgate Object Sensor - Left

Liftgate Components




1 - Liftgate Courtesy Lamp
2 - Rear Window Defogger Grid
3 - Rear Window Wiper Motor
4 - Liftgate Handle Switch
5 - Liftgate Latch

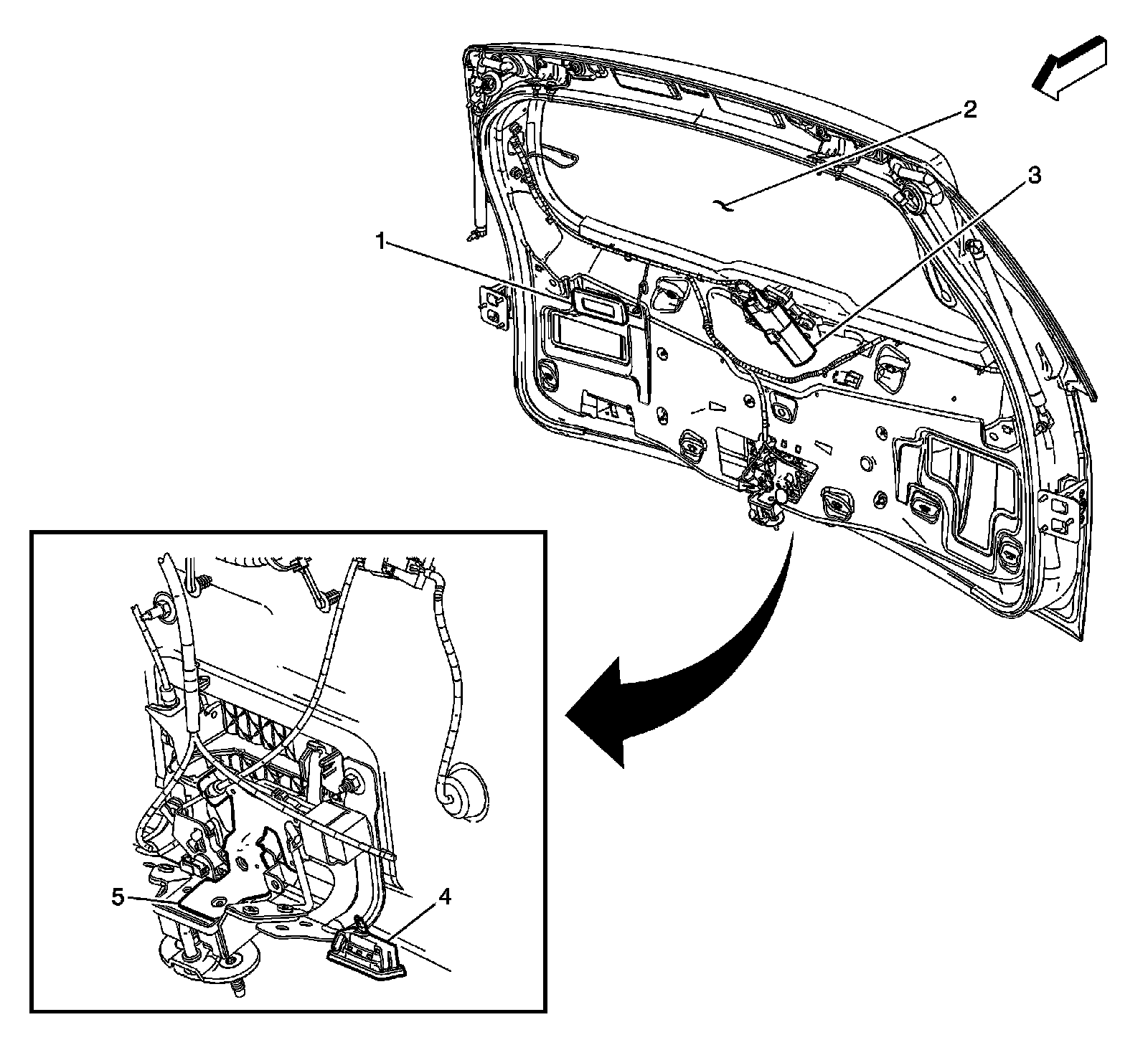

Inner Liftgate Components




1 - Liftgate Handle Switch
2 - Liftgate Close Switch
3 - Liftgate Latch

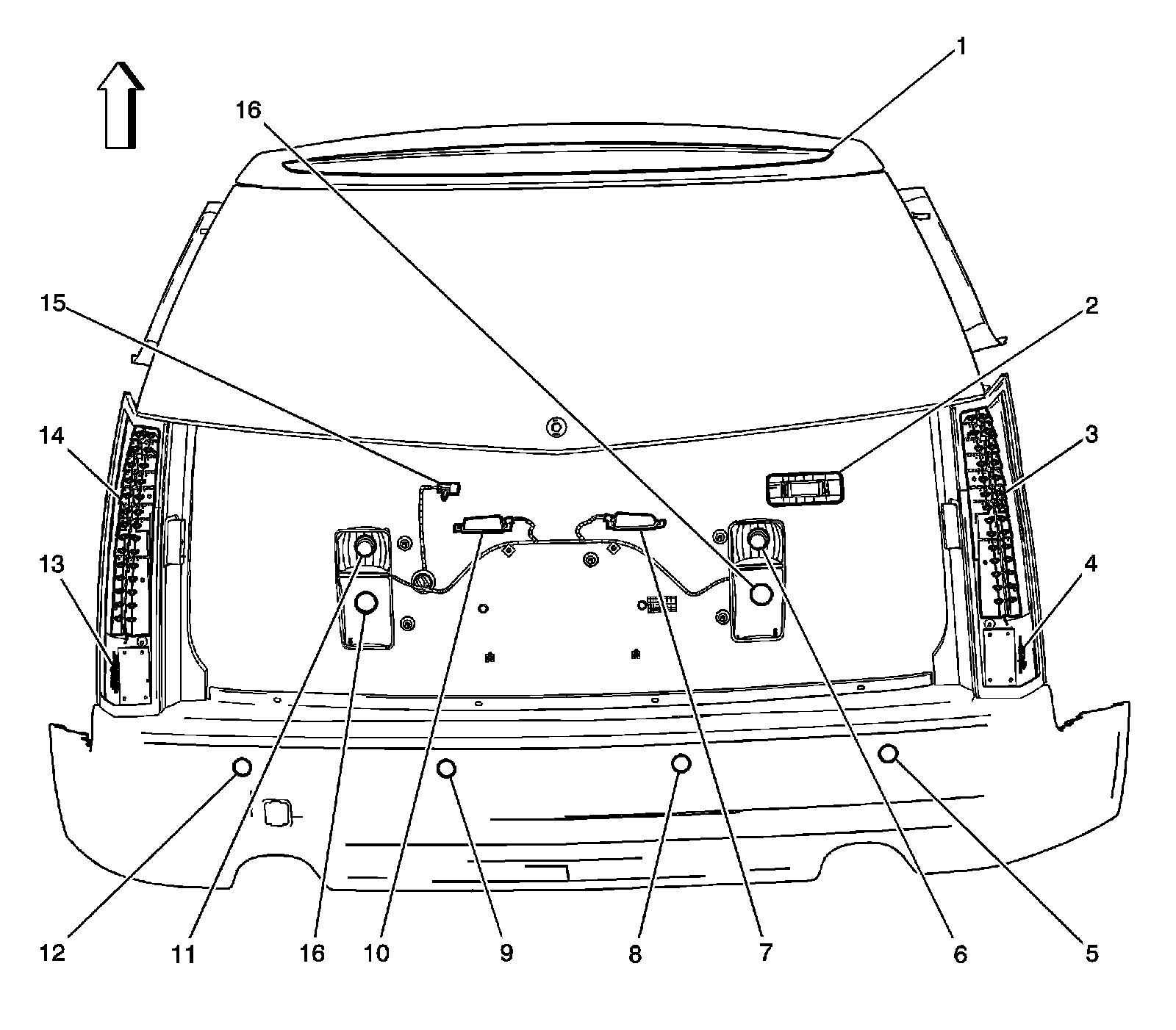

Exterior Lights Components 1 of 2




1 - Center High Mounted Stop Lamp (CHMSL)
2 - Liftgate Courtesy Lamp
3 - Tail Lamp - Right
4 - Tail Lamp Circuit Board - Right
5 - Object Alarm Sensor - Right Rear Corner
6 - Backup Lamp - Right
7 - License Lamp - Right
8 - Object Alarm Sensor - Right Rear Middle
9 - Object Alarm Sensor - Left Rear Middle
10 - License Lamp - Left
11 - Backup Lamp - Left
12 - Object Alarm Sensor - Left Rear Corner
13 - Tail Lamp Circuit Board - Left
14 - Tail Lamp - Left
15 - X901
16 - Fog Lamp - Left Rear (T79)

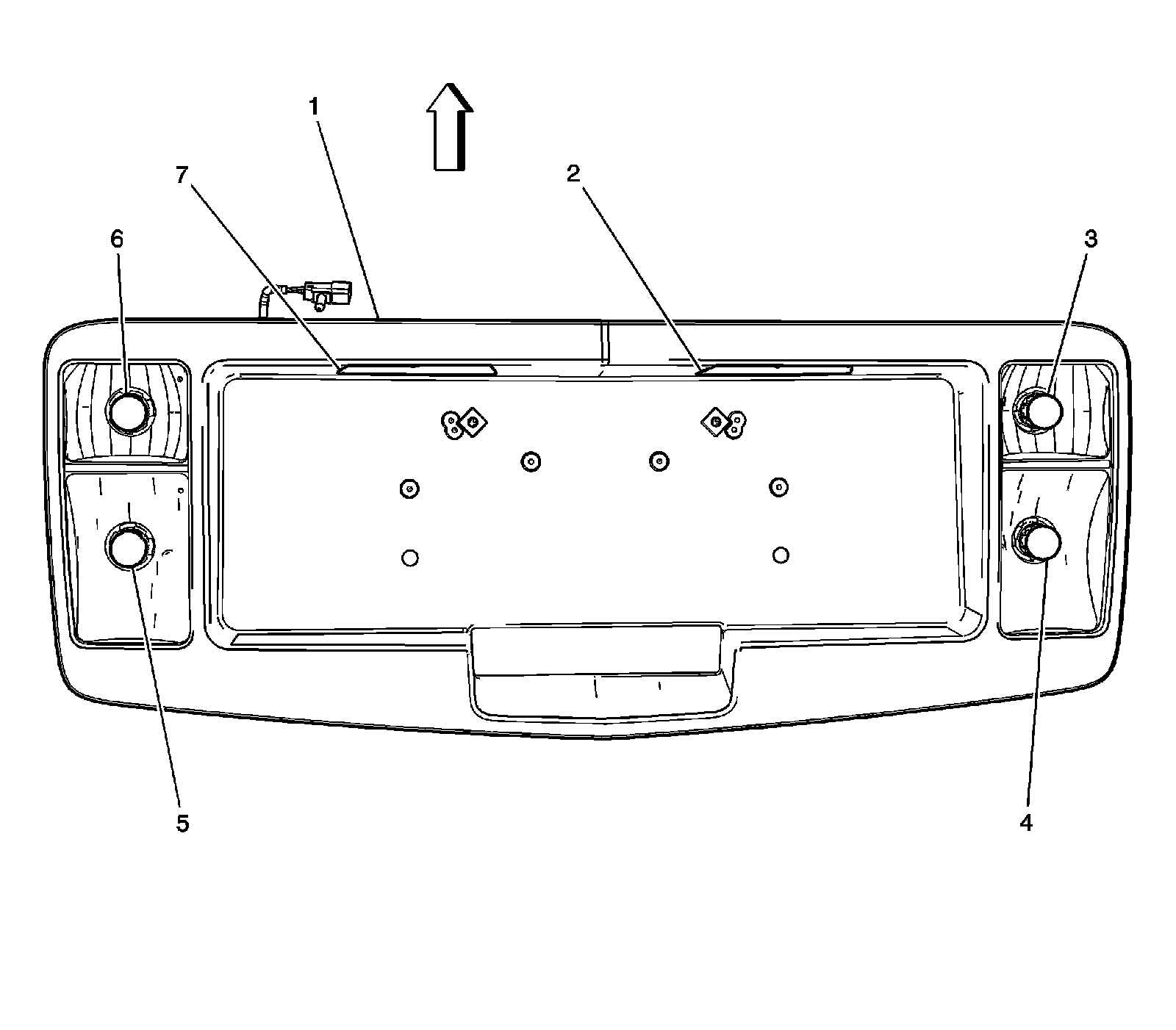

Exterior Lights Components 2 of 2




1 - License Lamp Assembly
2 - License Lamp - Right
3 - Backup Lamp - Right
4 - Fog Lamp - Right Rear (T79)
5 - Fog Lamp - Left Rear (T79)
6 - Backup Lamp - Left
7 - License Lamp - Left

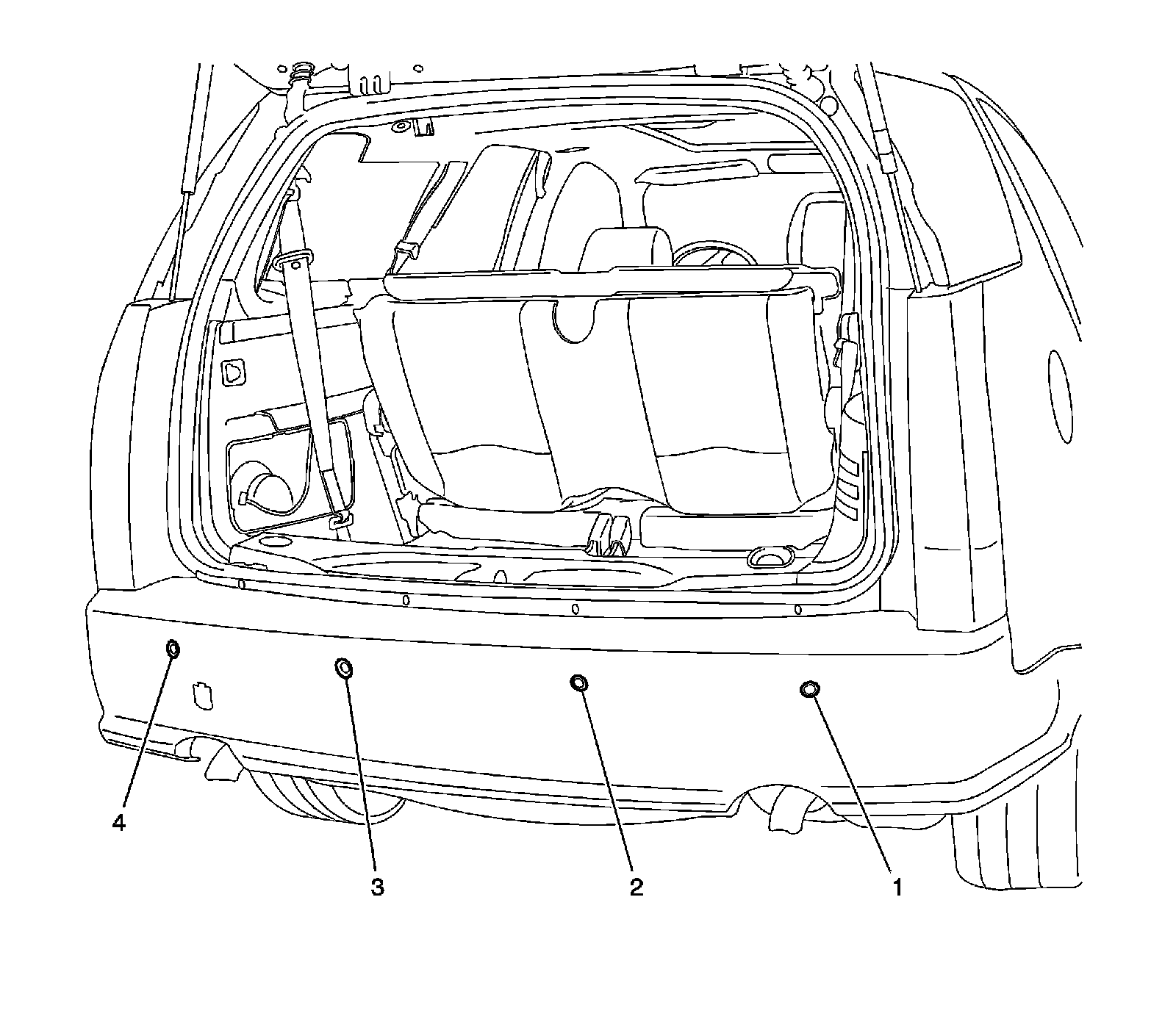

Rear Bumper Components




1 - Object Alarm Sensor - Right Rear Corner
2 - Object Alarm Sensor - Right Rear Middle
3 - Object Alarm Sensor - Left Rear Middle
4 - Object Alarm Sensor - Left Rear Corner
