142. Engine Prelubing




Engine Prelubing

Special Tools
* J 42907 Oil Pressure Tester
* J 45299 Engine Preluber




1. Remove the engine oil filter.

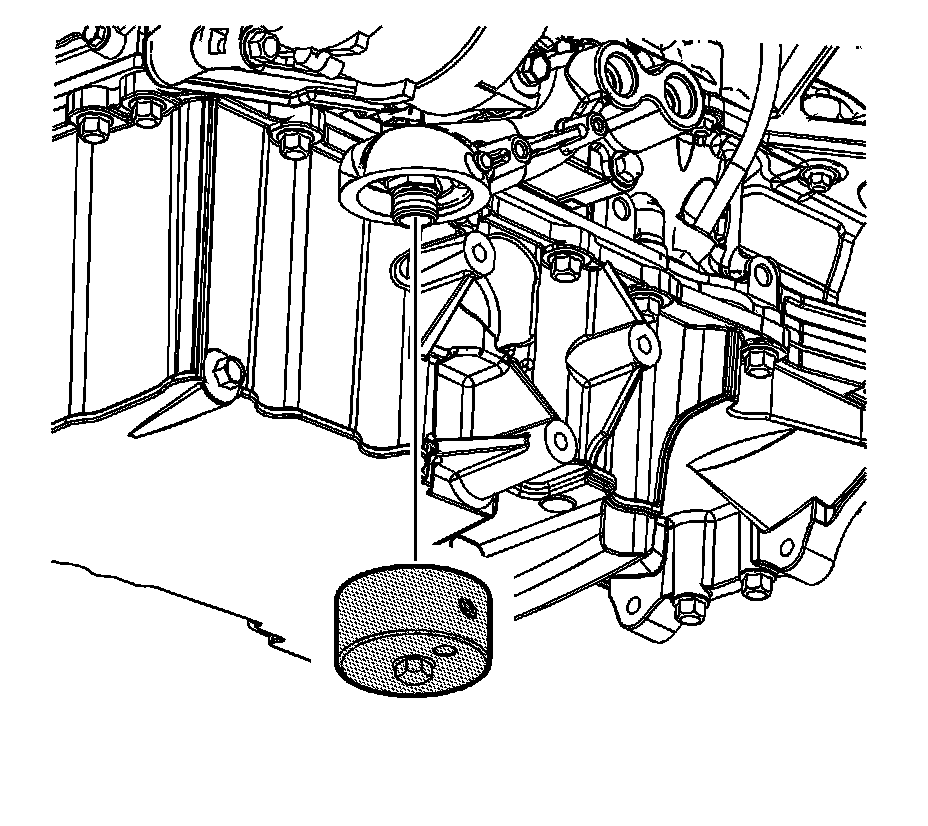

2. Install the J 42907 onto the oil filter adapter.

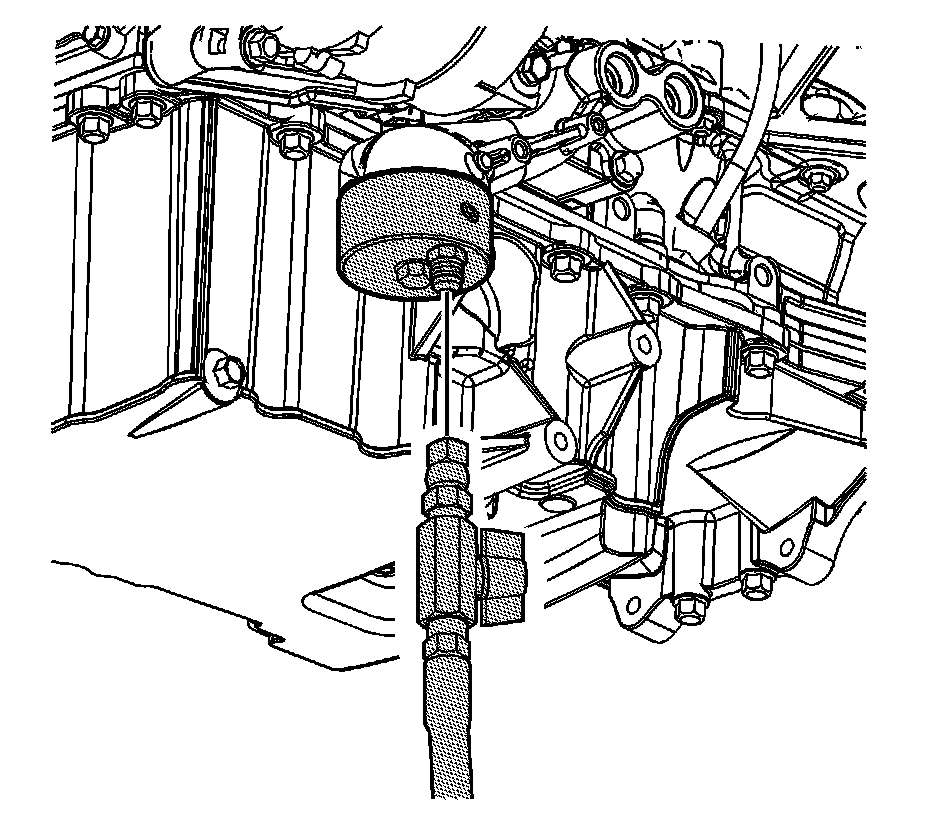

3. Install the 1/8 NPT fitting from the J 45299 into the port on the J 42907 .




4. Install the J 45299 flexible hose to the fitting.




5. Open the valve of the J 45299 .

Note: A constant and continuous flow of clean engine oil is required in order to properly prime the engine. Use the approved engine oil.

6. Pump the handle of the J 45299 in order to flow a minimum of 1-1.9 liters (1-2 quarts) of fresh clean engine oil. Observe the flow of engine oil through the flexible hose and into the engine assembly.
7. Close the valve of the J 45299 .




8. Remove the J 45299 flexible hose.

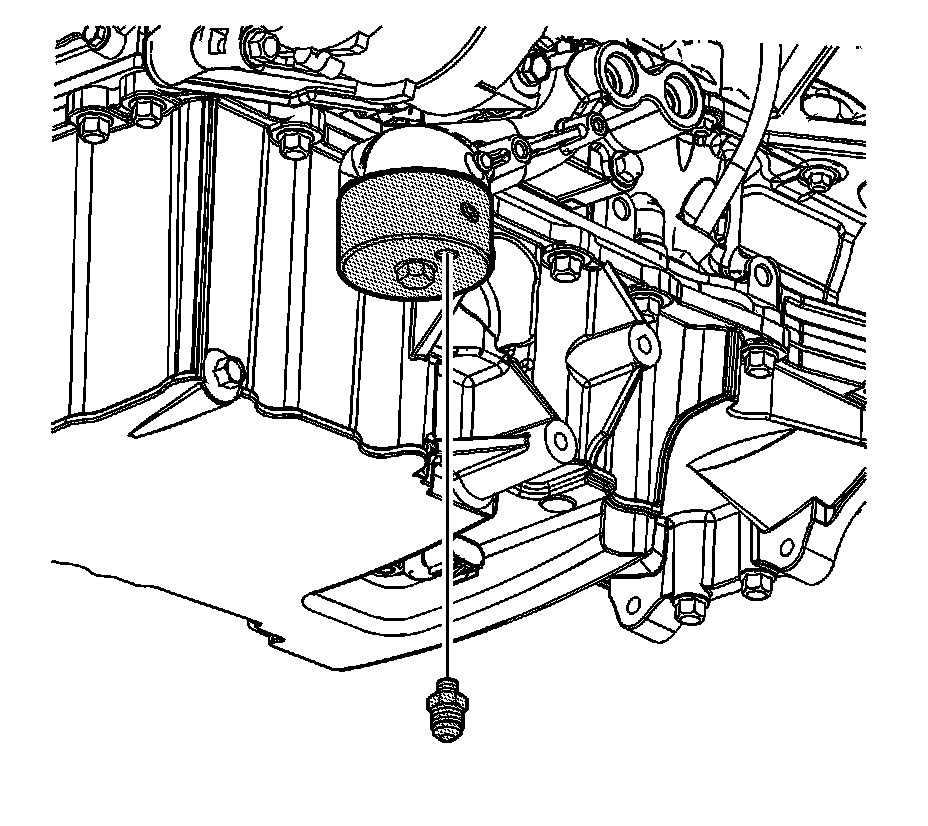

9. Remove the fitting from the J 42907 .




10. Remove the J 42907 from the oil filter adapter.
11. Ensure the NEW oil filter is filled with clean fresh engine oil.





Caution: Refer to Fastener Caution (Fastener Caution).

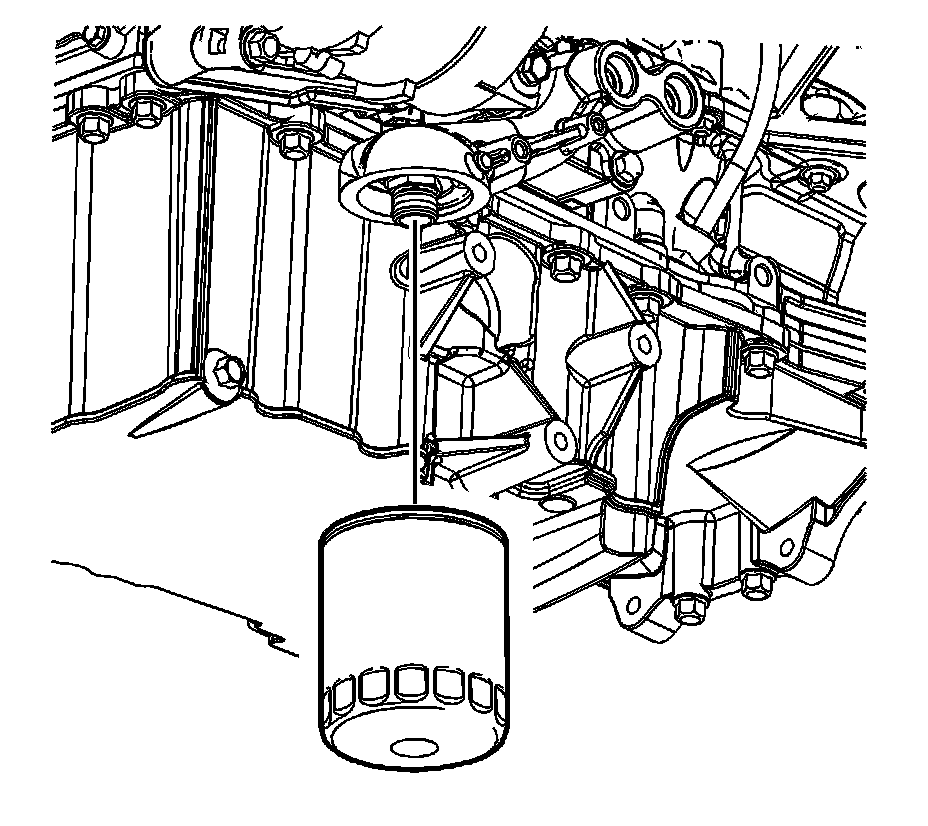

12. Install the NEW oil filter and tighten to 30 Nm (22 lb ft).
