Harness Routing Views (RHD)

Harness Routing Views (RHD)

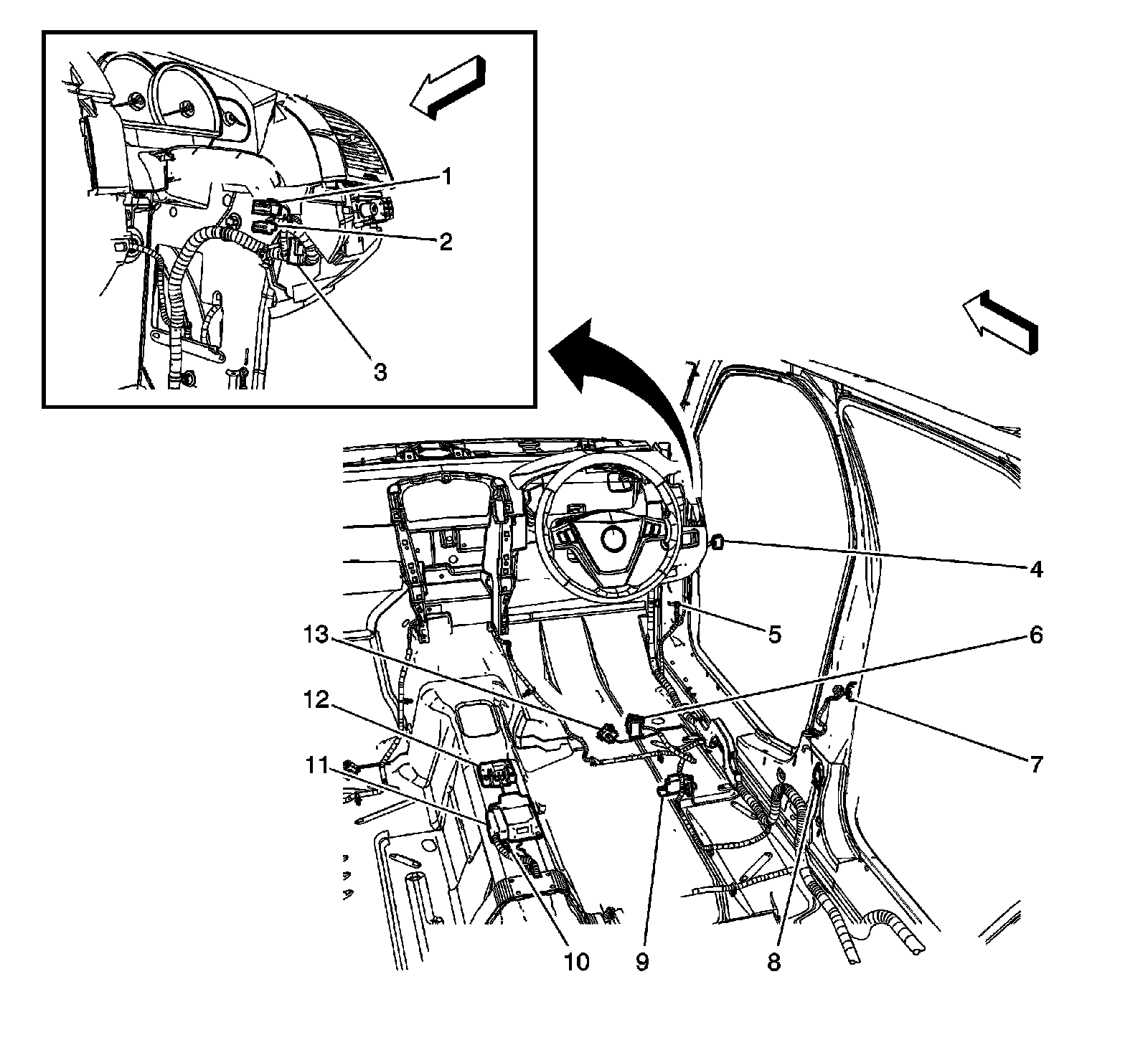

Body Harness Routing - Right Side of Passenger Compartment




1 - X203
2 - X201
3 - X209
4 - X600
5 - G201
6 - X300
7 - X800
8 - Right C-Pillar
9 - Yaw and Lateral Accelerometer Sensor
10 - G306
11 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
12 - Inflatable Restraint Vehicle Rollover Sensor
13 - X301

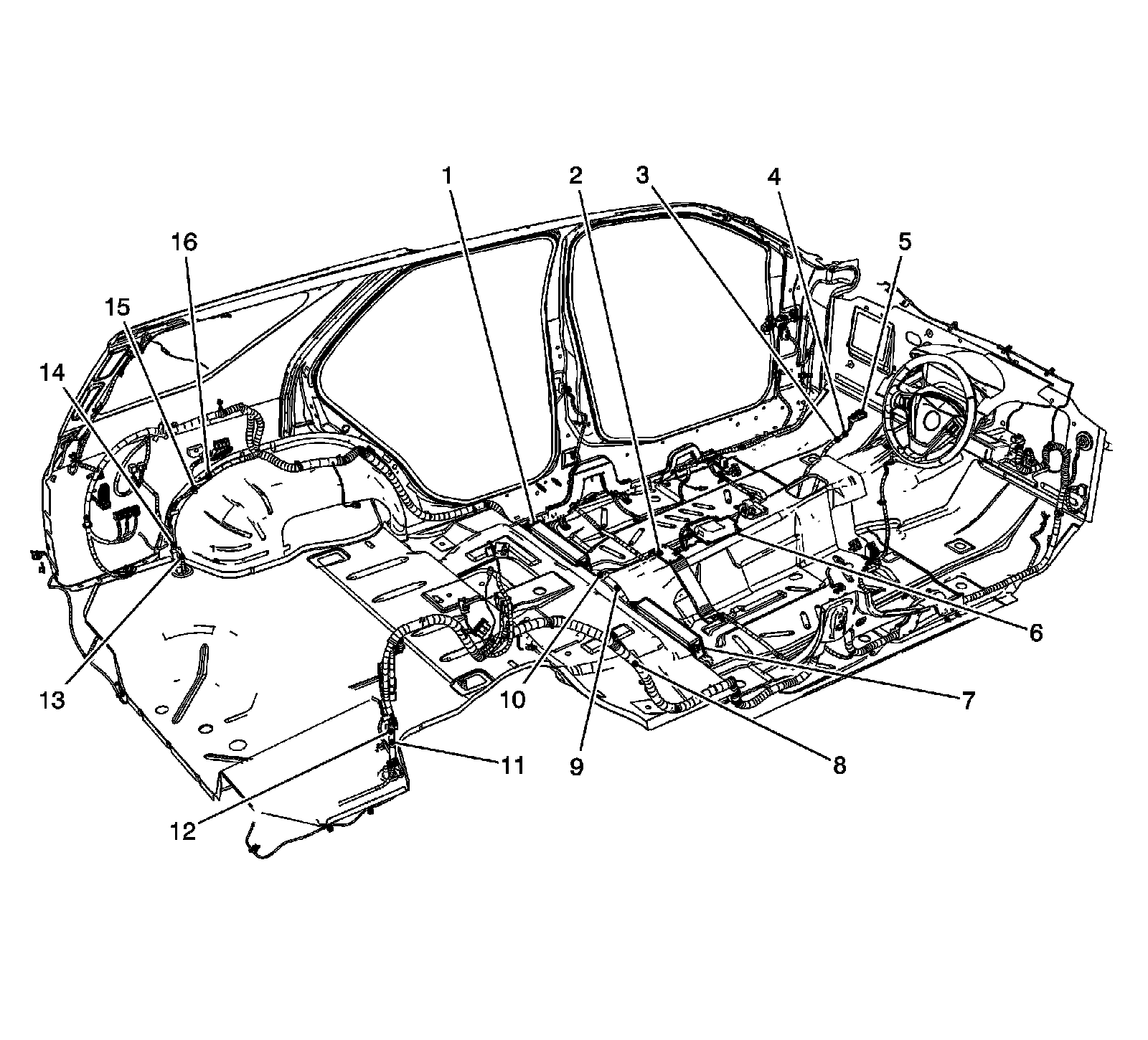

Body Harness Routing - Splices




1 - Fuse Block - Left Rear
2 - J305
3 - J309 (U2X/U2Y)
4 - J410
5 - X205
6 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
7 - Fuse Block - Right Rear
8 - J406
9 - J304 (AH8)
10 - J303
11 - J407 (C57)
12 - J402
13 - J403
14 - J404
15 - J416
16 - J415
