Battery Tray Replacement (LHD)




Battery Tray Replacement (LHD)

Removal Procedure




1. Remove the battery. Refer to Battery Replacement (LHD Top Post) (Battery Replacement)Battery Replacement (RHD) (Battery Replacement (RHD)).

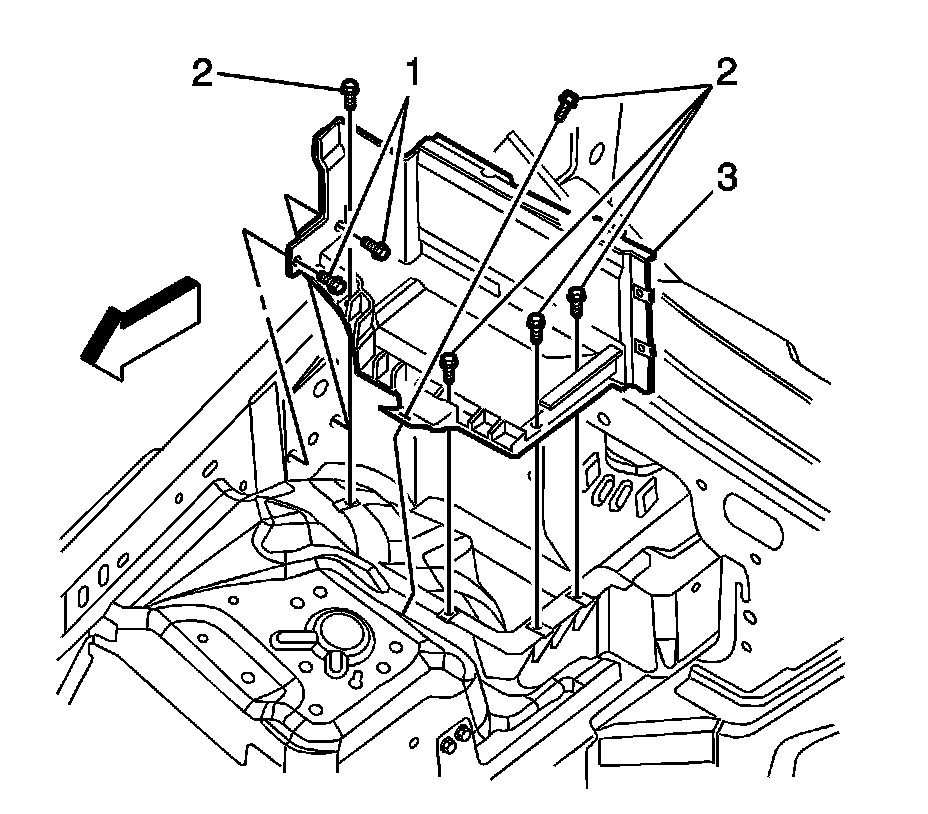

2. Remove the battery tray bolts (1, 2).
3. Remove the battery tray (3) from the vehicle.

Installation Procedure




1. Install the battery tray (3) into the vehicle.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the battery tray bolts (1, 2).

Tighten the bolts to 6 Nm (53 lb in).

3. Install the battery. Refer to Battery Replacement (LHD Top Post) (Battery Replacement)Battery Replacement (RHD) (Battery Replacement (RHD)).
