Rear Side Door Window Outer Sealing Strip Replacement




Rear Side Door Window Outer Sealing Strip Replacement

Removal Procedure

1. Lower the window to the full down position.





Important: Do not distort the sealing strip.

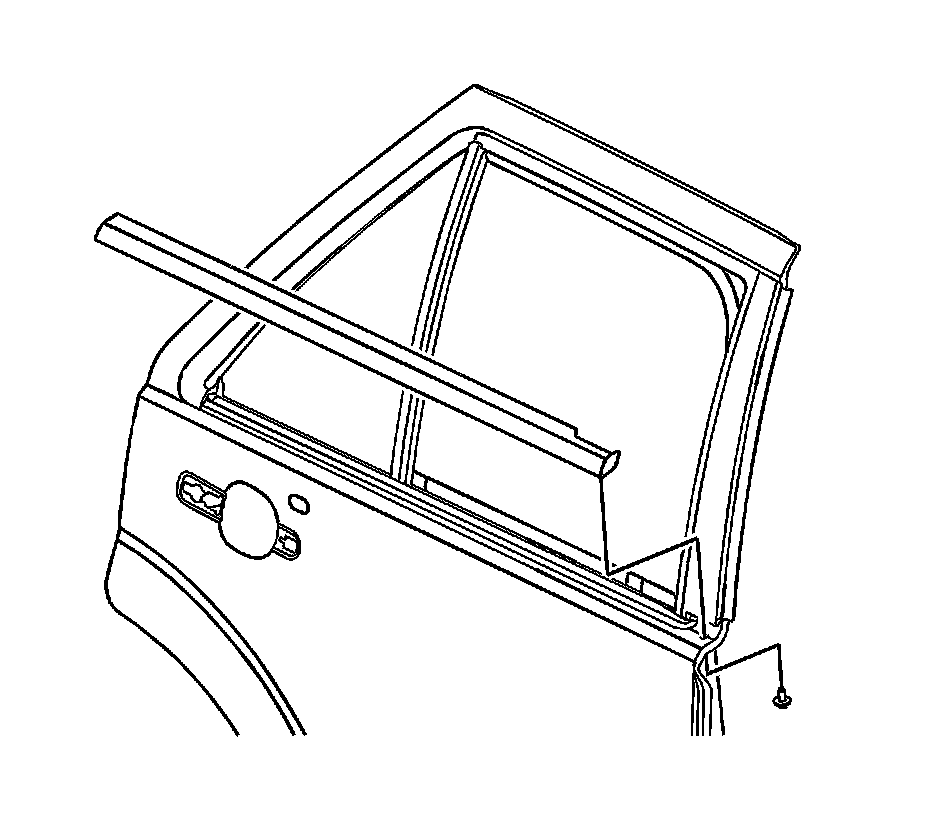

2. Remove the rear door outer belt sealing strip from the rear door pinch-weld flange by gently pulling up.

Installation Procedure




1. Install the rear door outer belt sealing strip to the rear door pinch-weld flange.

1. Align the sealing strip clips to the slots in the pinch-weld flange of the door.
2. Push the sealing strip downward to fully seat and secure the strip to the door.

2. Raise the rear door window.
