Instrument Panel Outer Air Outlet Deflector Replacement

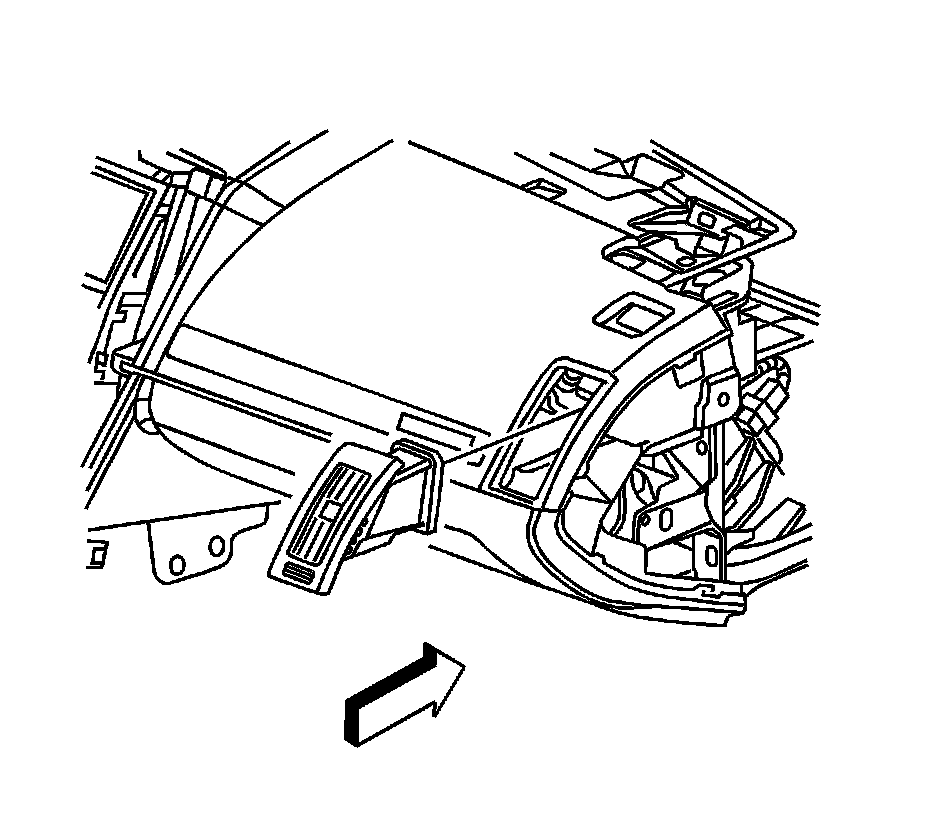

Instrument Panel Outer Air Outlet Deflector ReplacementRemoval Procedure 1.
Use a blunt trim tool in order to release the tabs securing the outlet air deflector to the instrument panel (I/P).
2.
Pull out on the deflector to remove from the I/P.
Installation Procedure 1.
Locate the vent to the I/P.
2.
Push the outlet vent securing the outlet air deflector to the I/P.
