Timing Components: Specifications
TIMING CHAIN/BELT TENSIONER
Drive BeltTensioner Bolt
50 Nm (37 lb ft)
Primary Camshaft Drive Chain
Tensioner Bolt
25 Nm (18 lb ft)
Secondary Camshaft Drive Chain
Tensioner Bolt
25 Nm (18 lb ft)
CRANKSHAFT PULLEY
Crankshaft Balancer Bolt
First Pass
100 Nm (74 lb ft)
Final Pass
150 Degrees

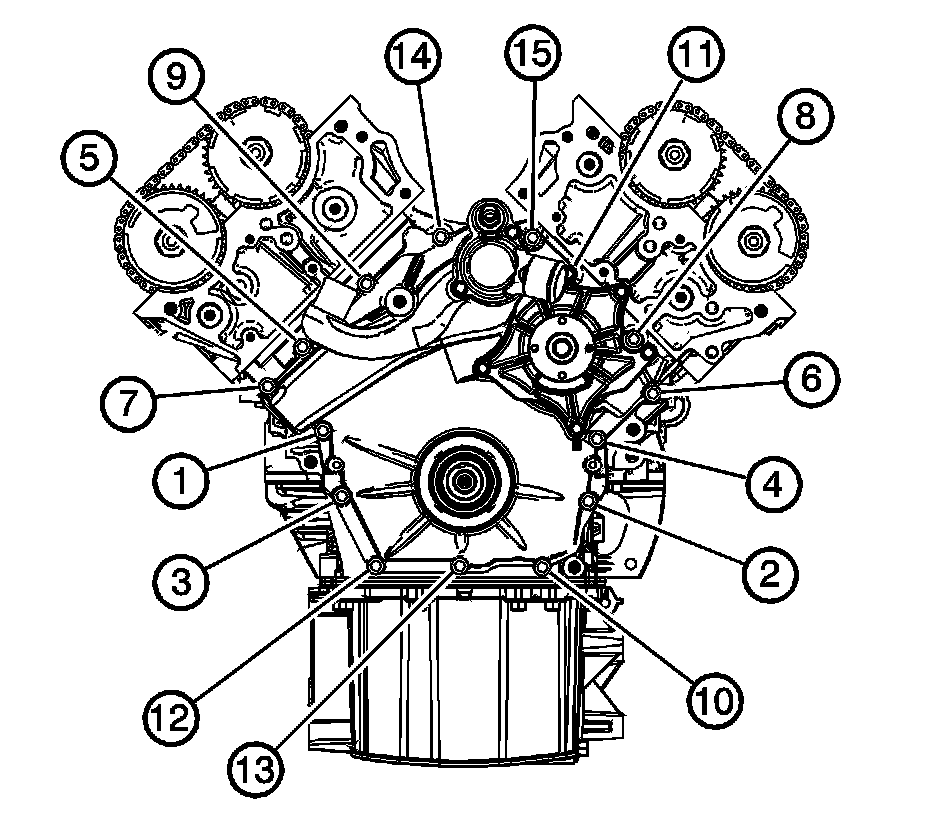

TIMING COVEREngine Front Cover Bolt
15 Nm (11 lb ft)
