Rear Compartment Front Partition Replacement

Rear Compartment Front Partition Replacement

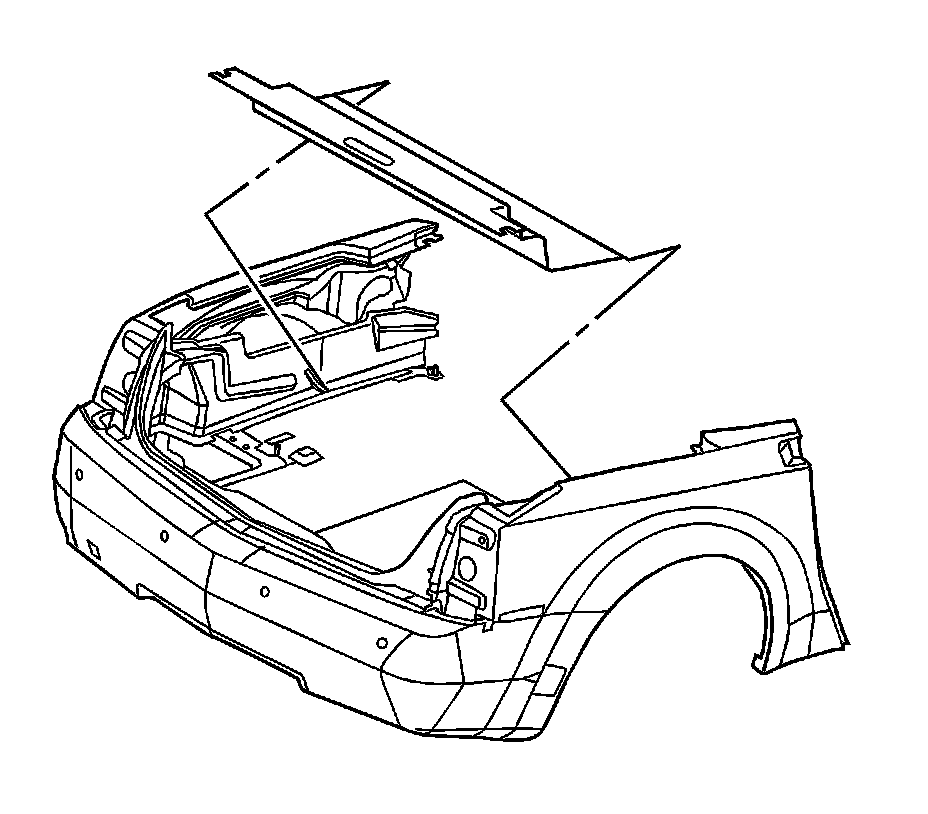

Removal Procedure

1. Open the rear compartment.




2. Using a small flat-bladed tool, remove the 2 compartment partition retainers.
3. Pull up to disengage the compartment partition from the rear compartment.

Installation Procedure




1. Position the compartment partition to the rear compartment.
2. Install the 2 compartment partition retainers to the compartment floor.
3. Verify the operation and the latching of the compartment partition to the latch and switch assembly.
4. Close the rear compartment.
