Scuff Plate: Service and Repair

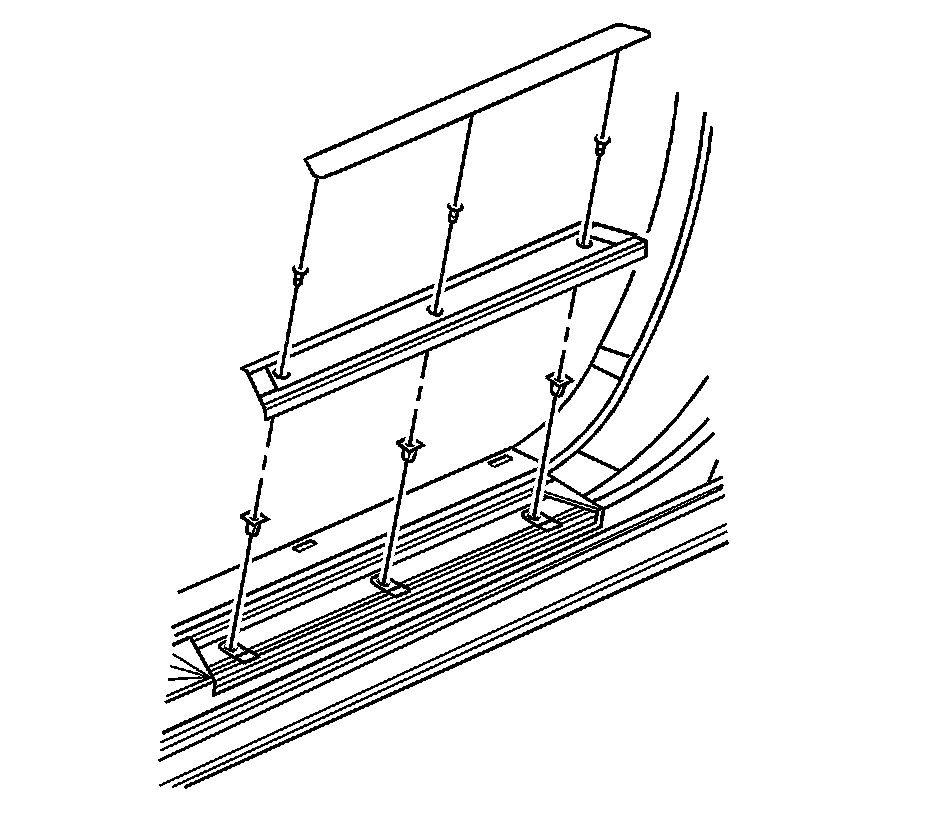

Door Sill Plate Replacement

Removal Procedure




1. Open the door.
2. Use a flat-bladed tool to remove the trim bezel from the door sill plate.
3. Remove the retaining screws from the sill plate.
4. Lift the door sill plate off of the rocker panel.

Installation Procedure




1. Position the door sill plate to the rocker panel.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the retaining screws to the door sill plate and tighten to 2.3 Nm (22 lb in).
3. Install the trim bezel to the door sill plate.
4. Close the door.
