123. Ignition Coil Module Installation - Left Side




Ignition Coil Module Installation - Left Side





Caution: Refer to Fastener Caution (Fastener Caution).

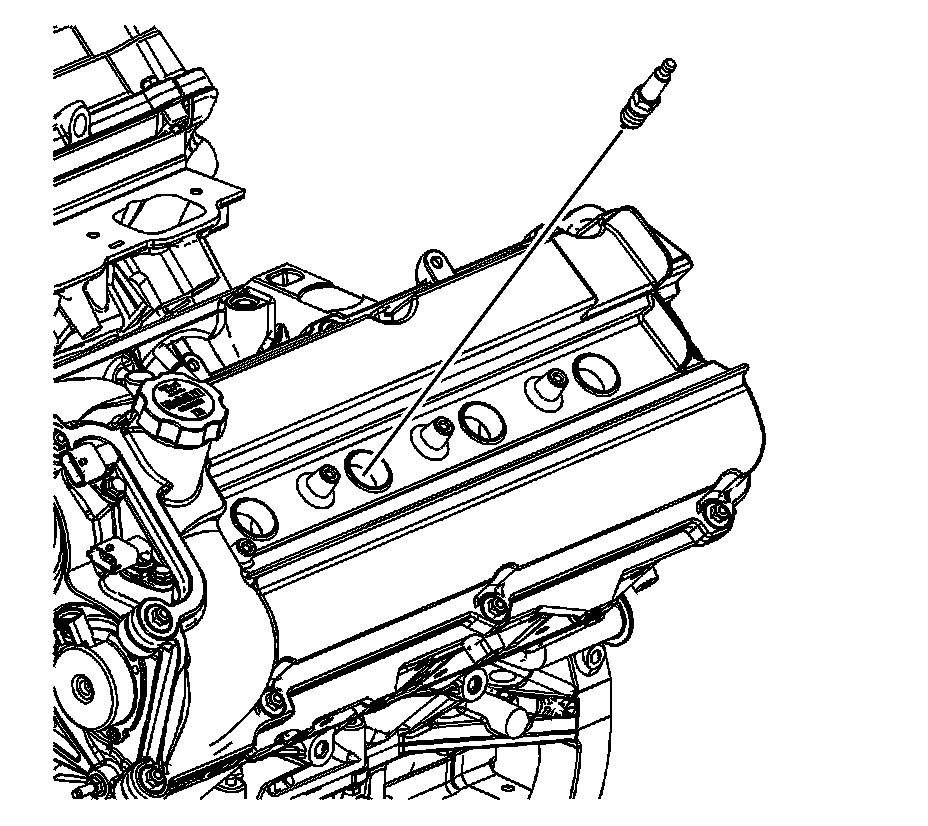

1. Install the left spark plugs.

Tighten the spark plugs to 15 Nm (11 lb ft).




2. Apply a small amount of dielectric grease GM P/N 12345579, (Canadian P/N 1974984), to each spark plug boot (1) of the ignition coil assembly.

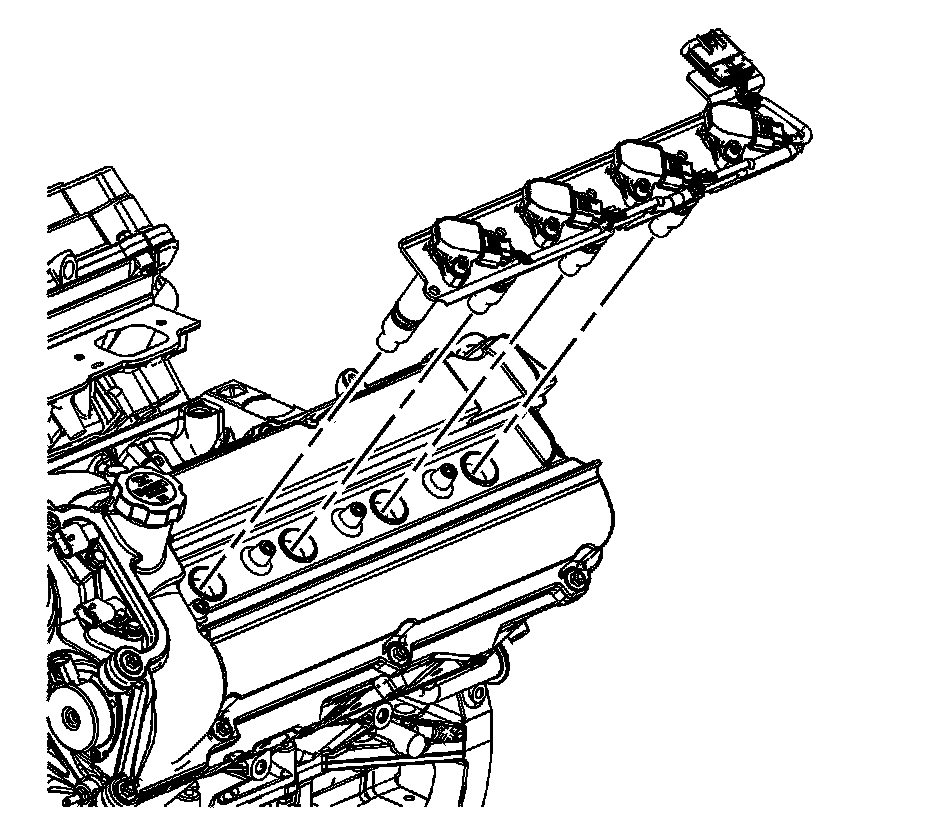

3. Carefully, install the left ignition coil assembly.

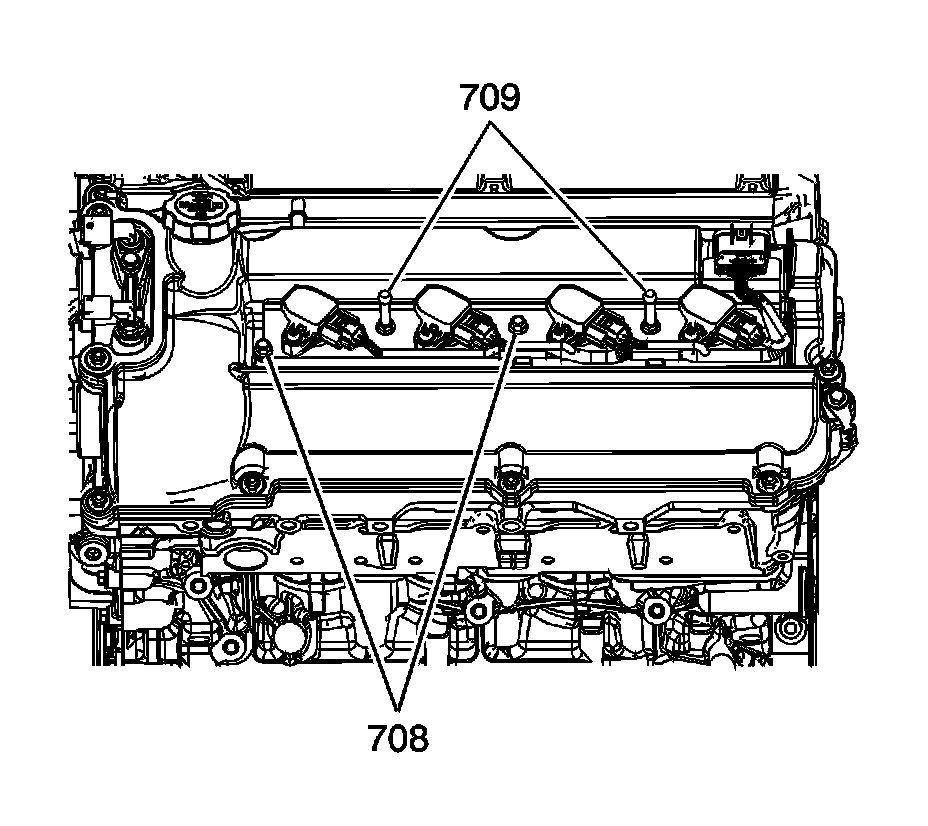

4. Install the left ignition coil assembly bolts (708) and ball studs (709).

Tighten the left ignition coil assembly bolts (708) and ball studs (709) to 10 Nm (89 lb in).
