Radiator Outlet Hose Replacement

Radiator Outlet Hose Replacement (LLT)

Special Tools

J 38185 - Hose Clamp Pliers

Removal Procedure

1. Drain the coolant. Refer to Cooling System Draining and Filling (Static Fill) (Cooling System Draining and Filling (Static Fill))Cooling System Draining and Filling (GE 47716) (Cooling System Draining and Filling (GE 47716)).

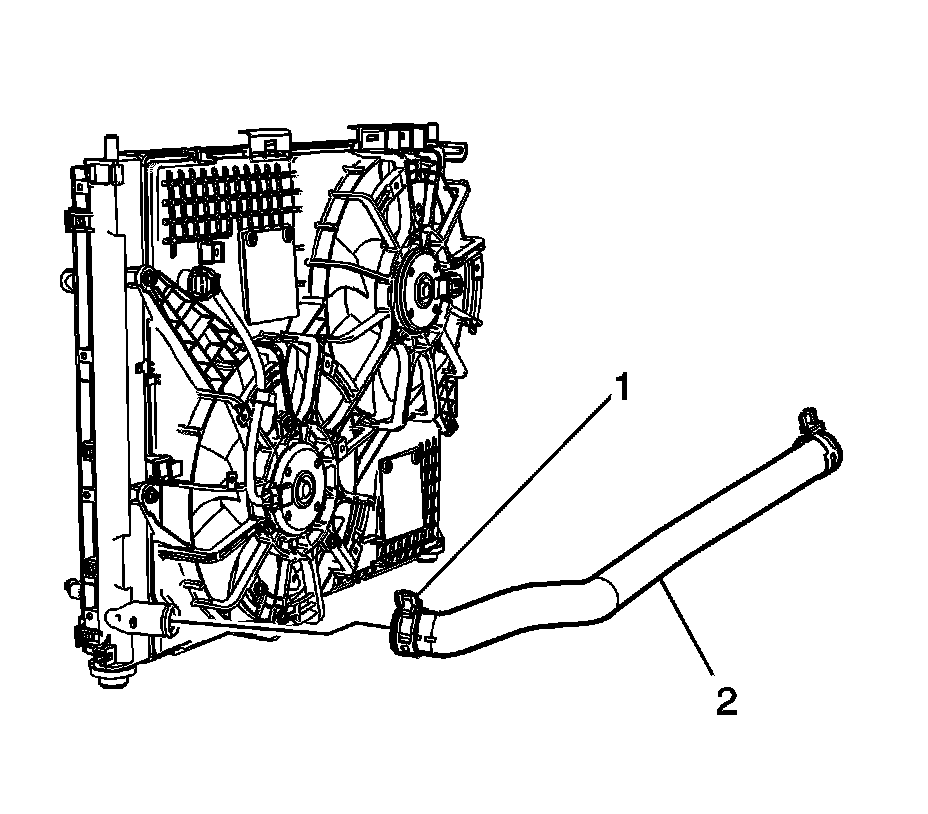

2. Using the J 38185 - Hose Clamp Pliers, disengage the tension on the hose clamp and remove the radiator outlet hose from the radiator.

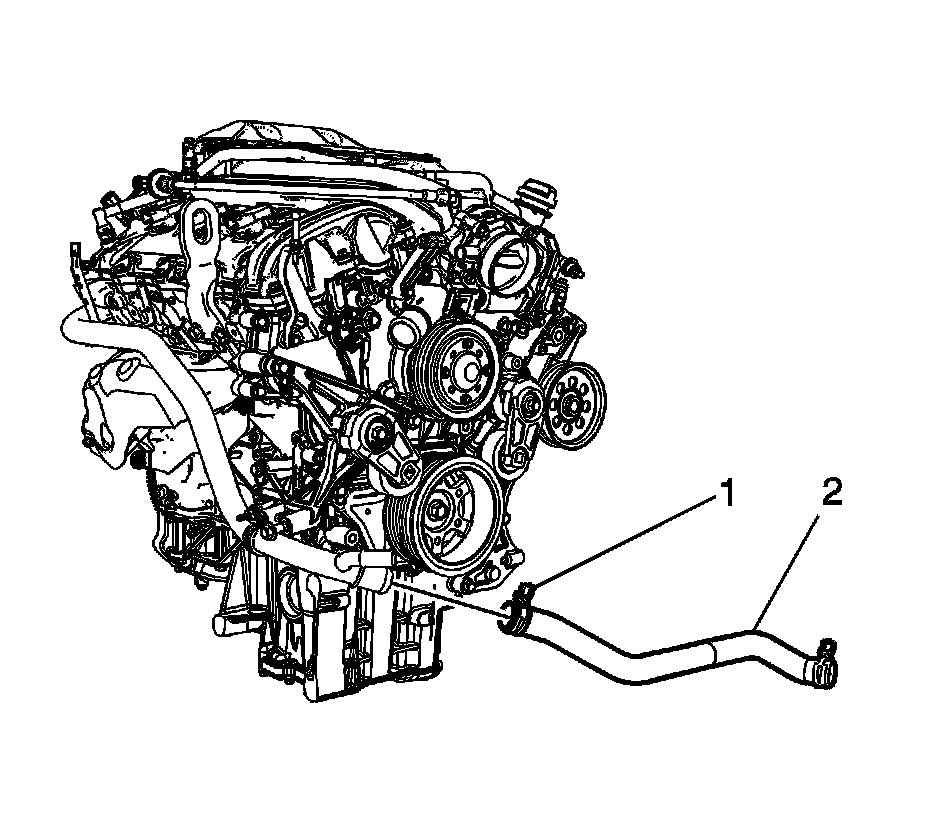

3. Using the J 38185 - Hose Clamp Pliers, disengage the tension on the hose clamp (1) and remove the radiator outlet hose (2) from the engine.
4. Remove the radiator outlet hose from the vehicle.

Installation Procedure




1. Install the outlet radiator hose into the vehicle.

Note: Lubricate the inside diameters of the hoses with clean coolant prior to installation.

2. Using the J 38185 - Hose Clamp Pliers, disengage the tension on the hose clamp (1) and Install the radiator outlet hose (2) to the engine.




3. Using the J 38185 - Hose Clamp Pliers, disengage the tension on the hose clamp and install the radiator outlet hose to the radiator.
4. Fill the cooling system. Refer to Cooling System Draining and Filling (Static Fill) (Cooling System Draining and Filling (Static Fill))Cooling System Draining and Filling (GE 47716) (Cooling System Draining and Filling (GE 47716)).
