Driver Door

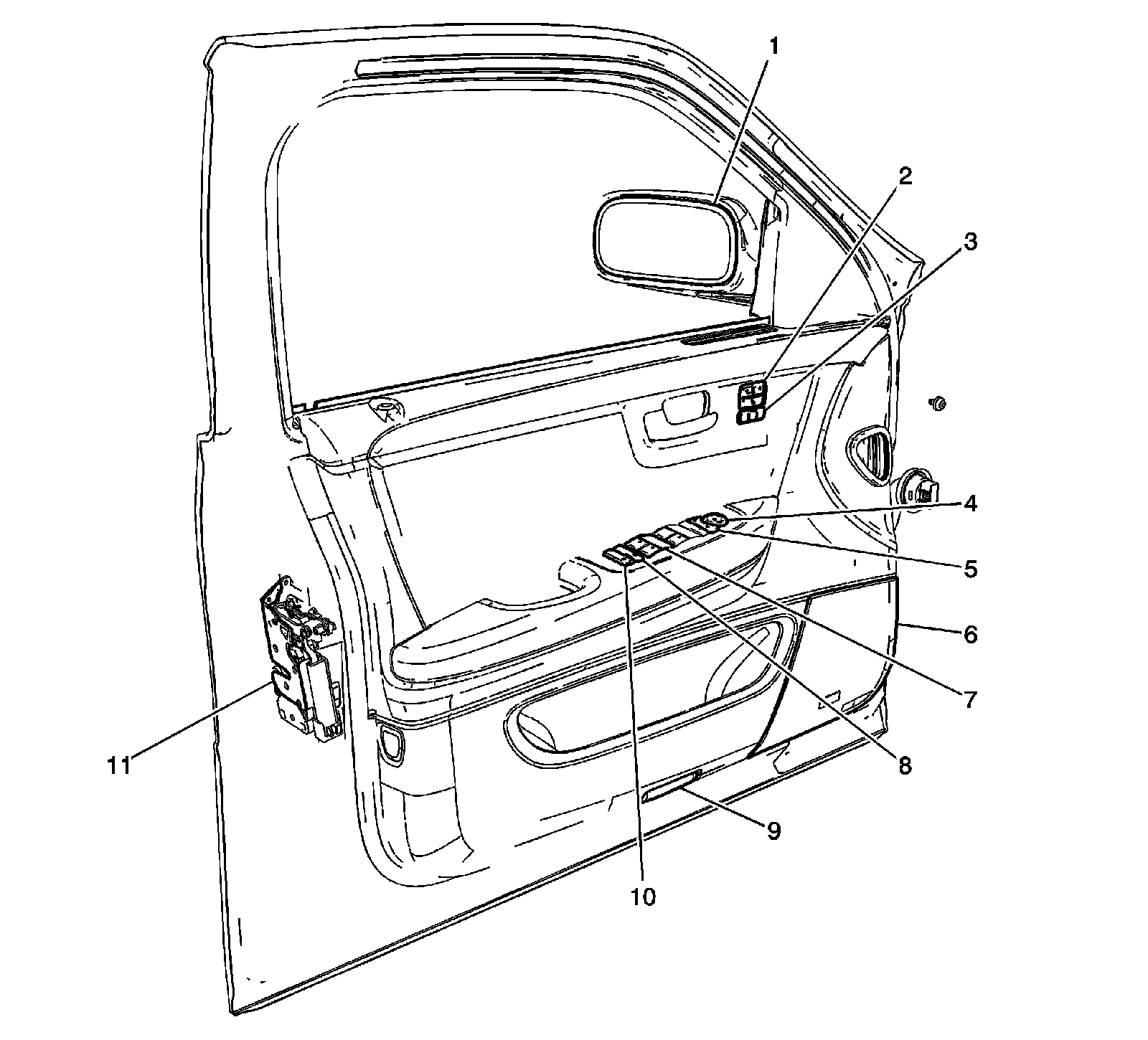

Door Component ViewsDriver Door1 - Outside Rearview Mirror - Driver
2 - Heated and Cooled Seat Switch - Driver (KB6)
3 - Memory/Personalization Switch (A45)
4 - Outside Rearview Mirror Switch
5 - Outside Power Folding Mirror Switch (DL3)
6 - Speaker - Left Front Door
7 - Power Window Switches
8 - Window Lock-Out Switch
9 - Courtesy Lamp - Left Front Door
10 - Door Lock-Out Switch
11 - Door Latch Assembly
