Passenger Seat (1 of 2)

Passenger Compartment/Roof Component Views

Passenger Seat (1 of 2)

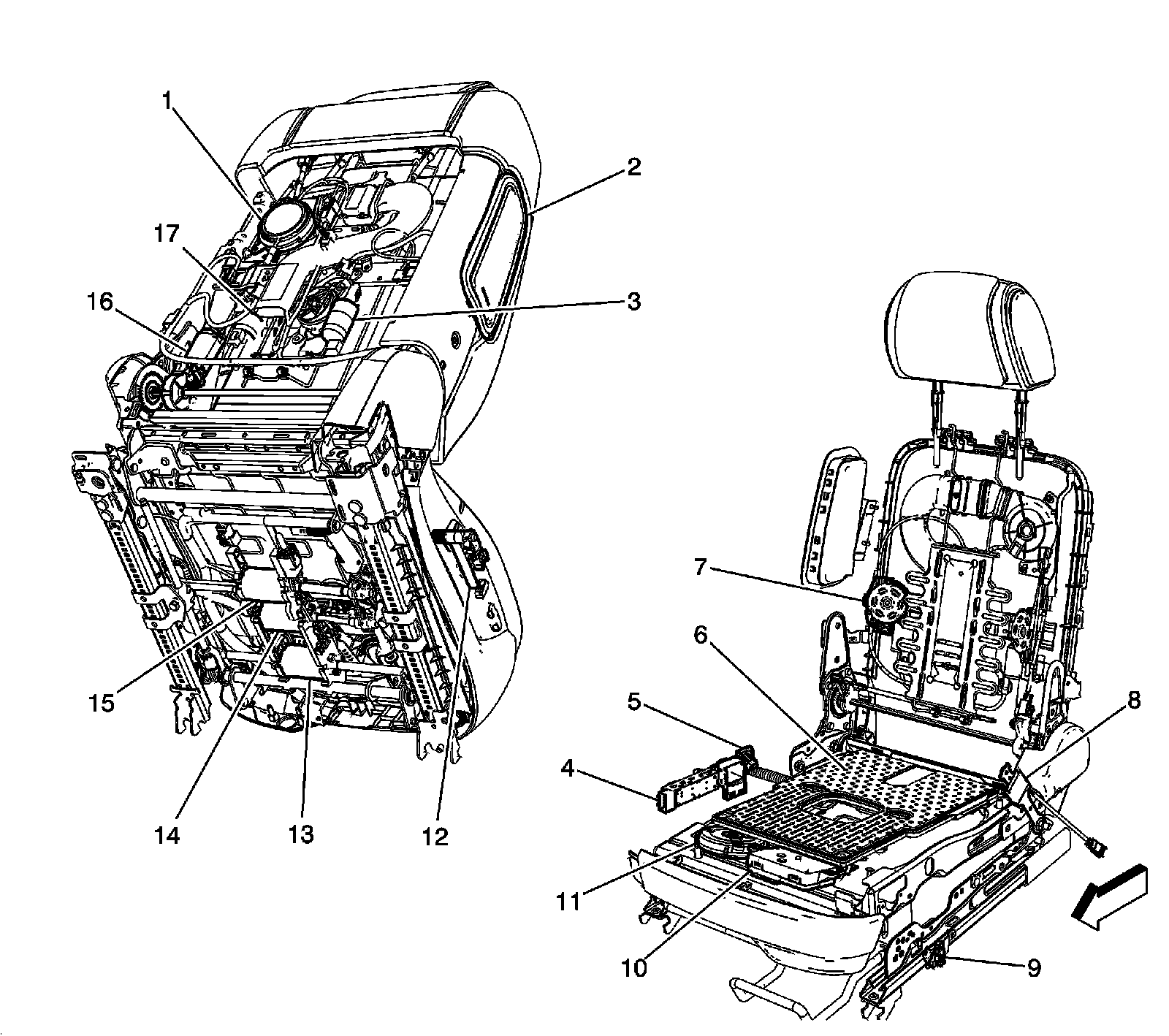

1 - Seat Back Ventilation Heat and Cool Module - Passenger (KB6)
2 - Inflatable Restraint Side Impact Module - Right
3 - Seat Lumbar Vertical Motor - Front Passenger (AL2) or Seat Lumbar Massage Motor - Front Passenger (AM3)
4 - Seat Adjuster Switch - Passenger (AG2)
5 - Seat Lumbar Massage Switch - Front Passenger (AM3)
6 - Inflatable Restraint Passenger Presence System (PPS) Sensor
7 - Seat Lumbar Horizontal Motor - Front Passenger (AL2)
8 - Seat Belt Switch - Right
9 - Inflatable Restraint Seat Position Sensor (SPS) - Right
10 - Climate Control Seat Module - Front (KB6)
11 - Seat Cushion Ventilation Heat and Cool Module - Front Passenger (KB6)
12 - Inflatable Restraint Passenger Presence System (PPS) Sensor Connector
13 - Seat Horizontal Motor - Passenger
14 - Seat Front Vertical Motor - Passenger
15 - Seat Rear Vertical Motor - Passenger
16 - Seat Recline Motor - Front Passenger (AG2)
17 - Seat Lumbar Massage Motor - Front Passenger
