System Diagram

Component Connector End Views

Courtesy Lamp - Front (V4U)

Courtesy Lamp - Left Front (V4U)

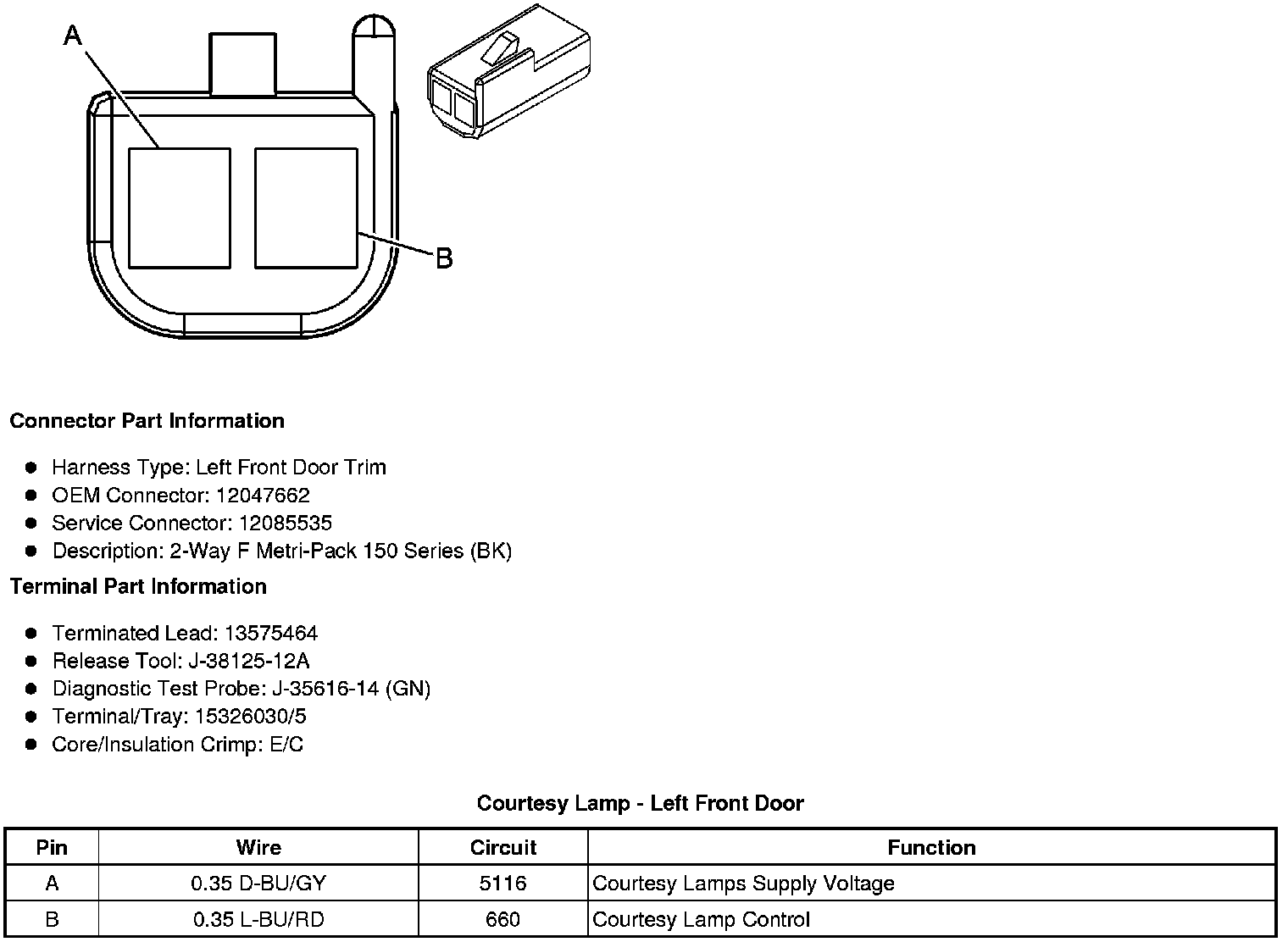

Courtesy Lamp - Left Front Door

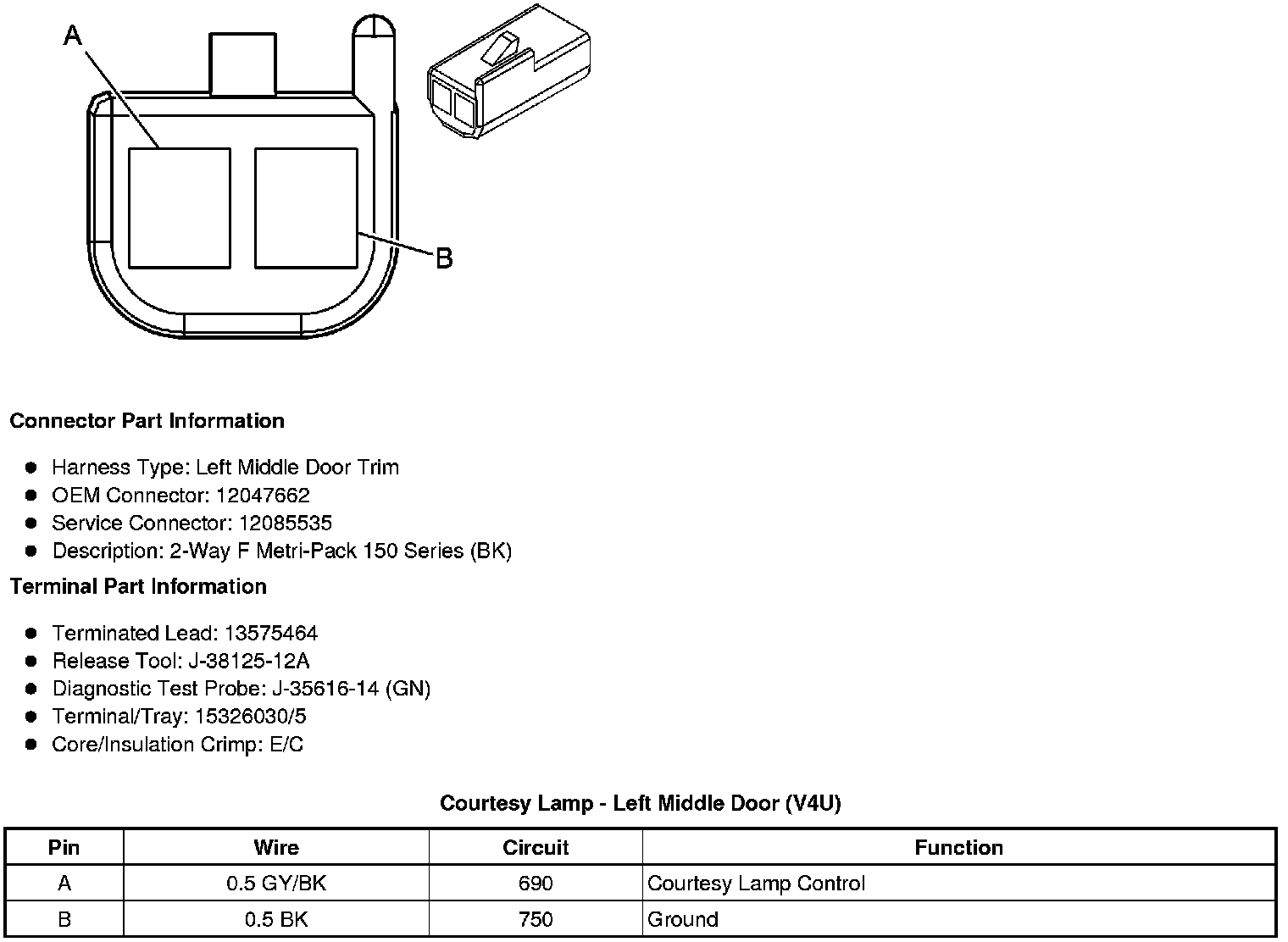

Courtesy Lamp - Left Middle Door (V4U)

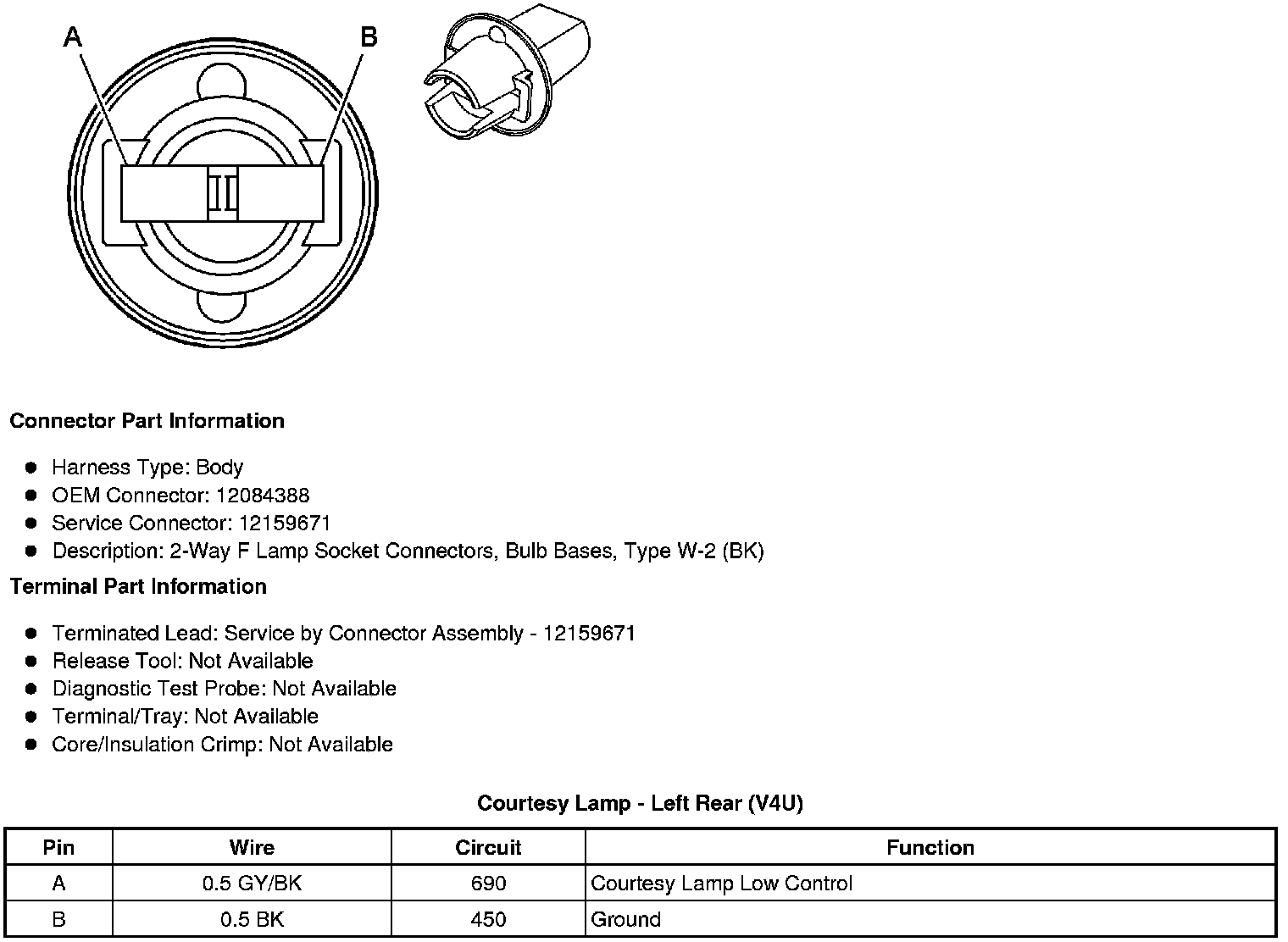

Courtesy Lamp - Left Rear (V4U)

Courtesy Lamp - Left Rear (without V4U)

Courtesy Lamp - Left Rear Door

Courtesy Lamp - Right Front

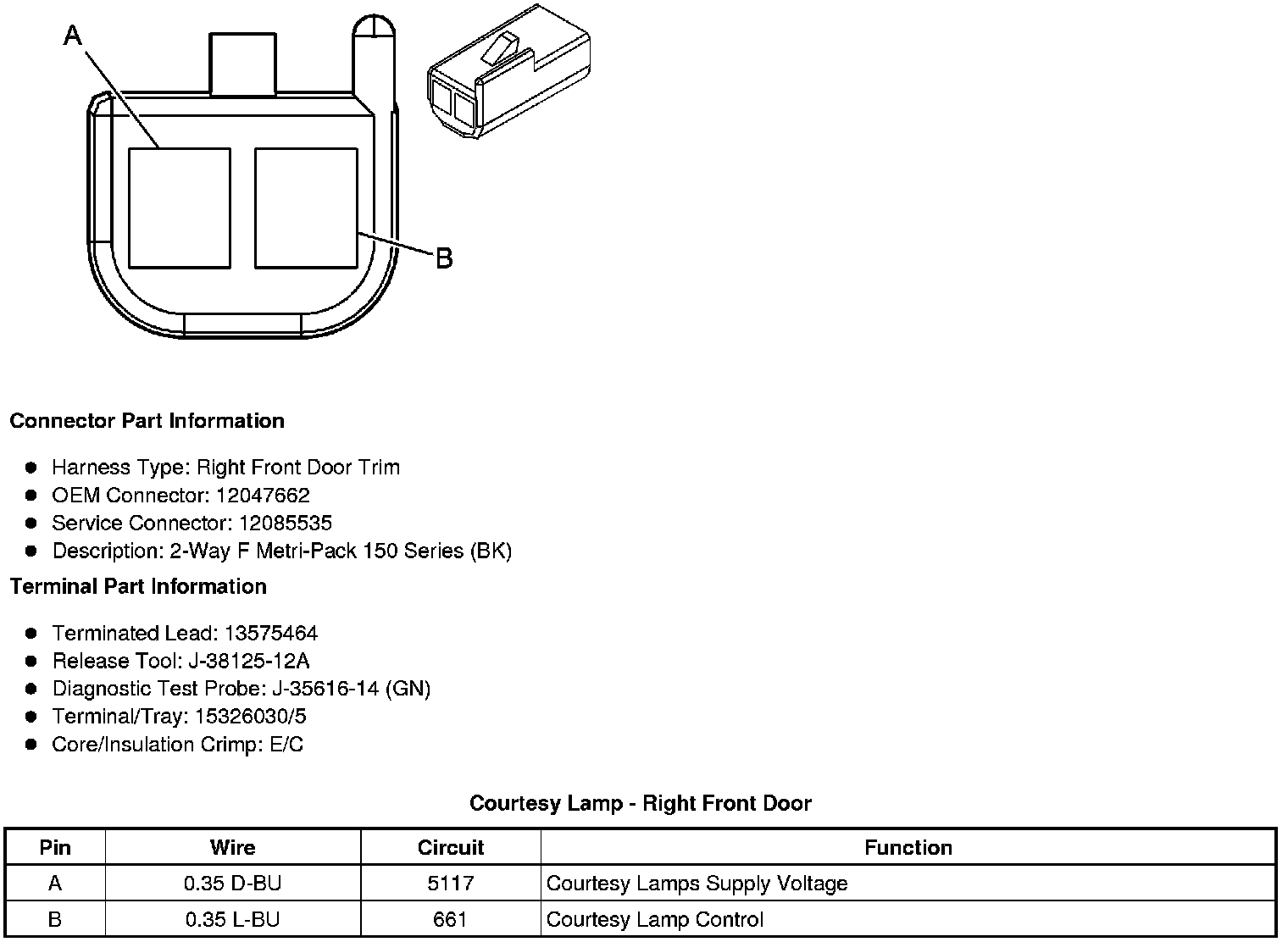

Courtesy Lamp - Right Front Door

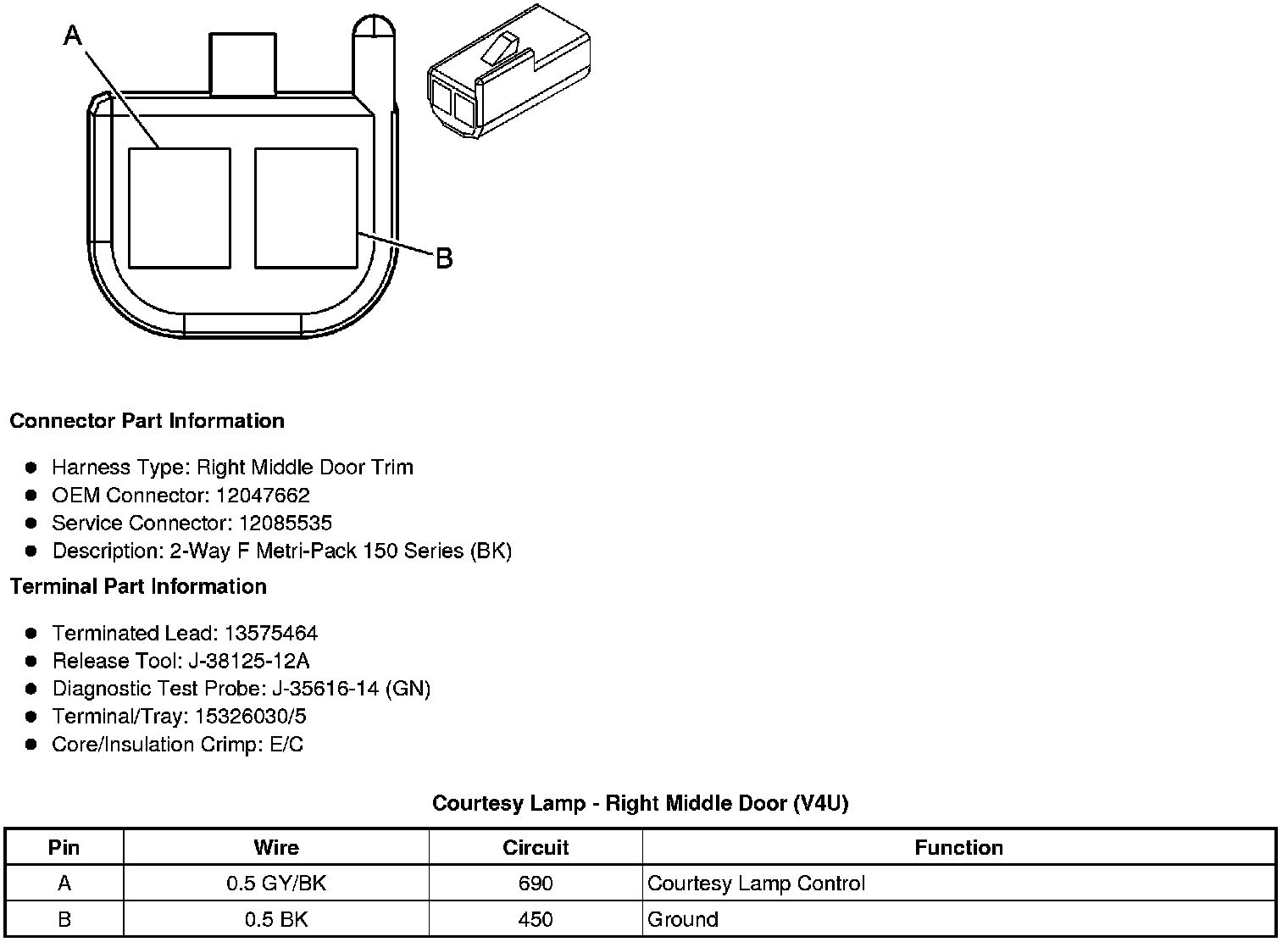

Courtesy Lamp - Right Middle Door (V4U)

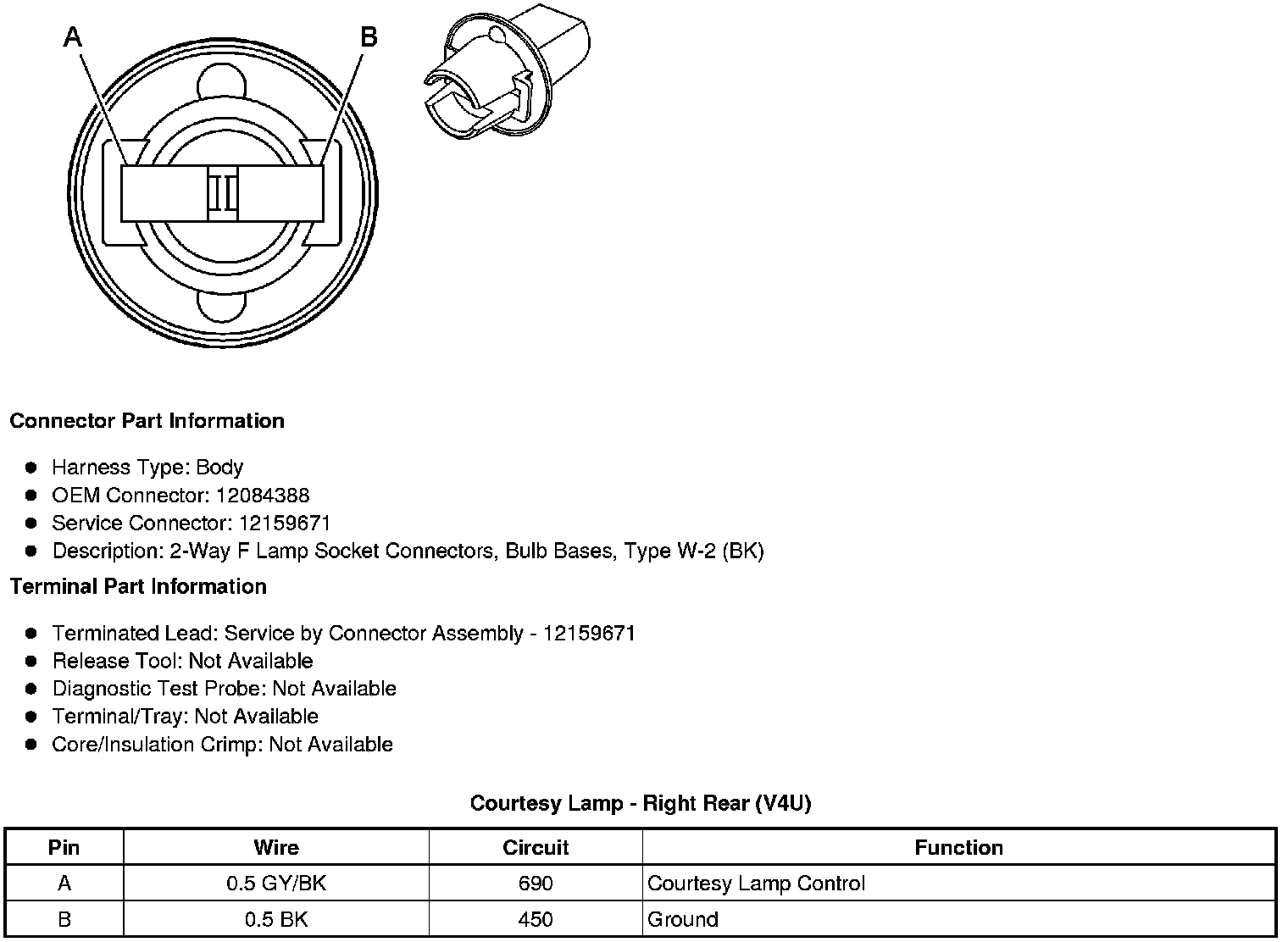

Courtesy Lamp - Right Rear (V4U)

Courtesy Lamp - Right Rear (without V4U)

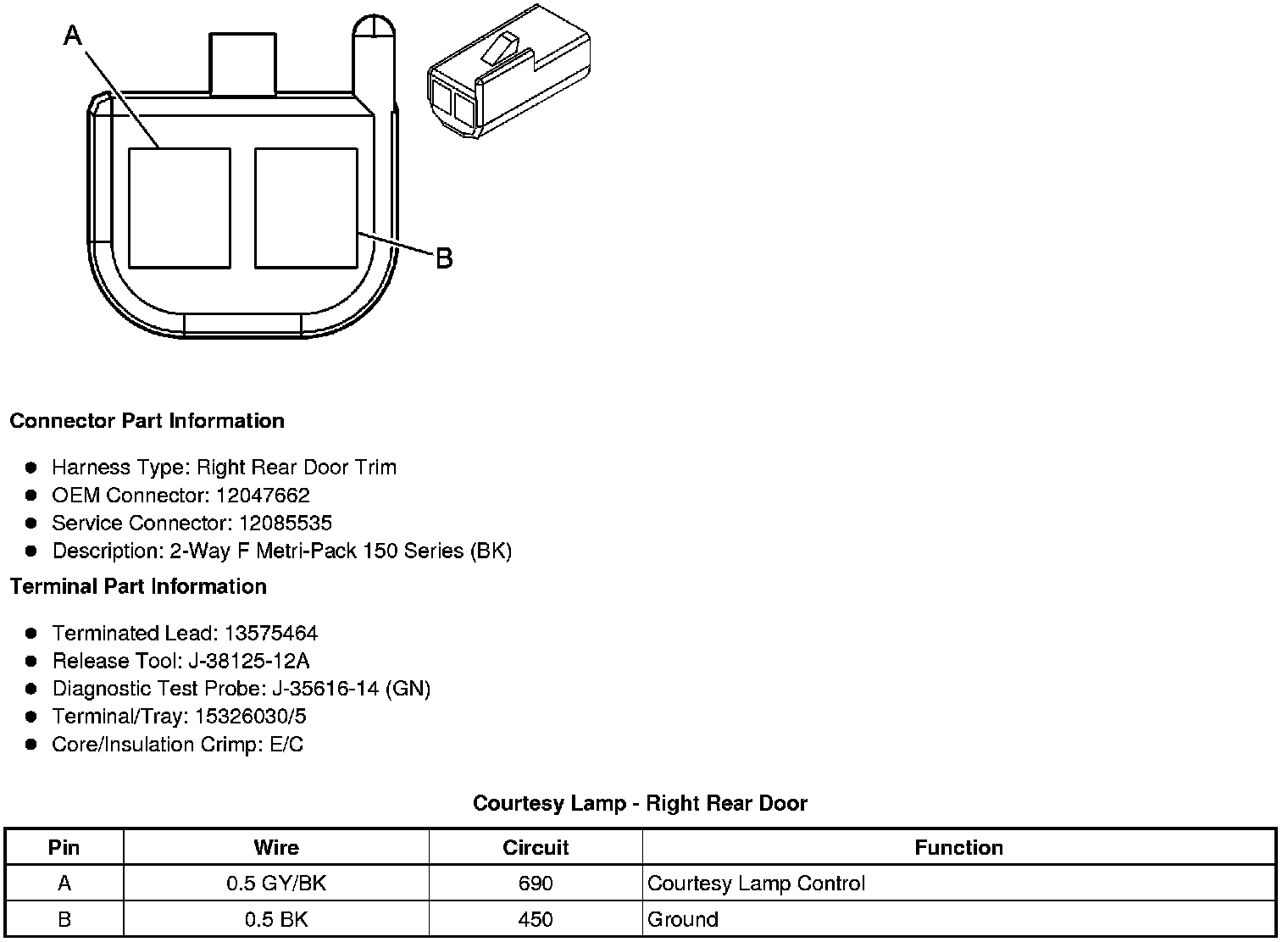

Courtesy Lamp - Right Rear Door

Courtesy Lamp Module (without C97/V4U)

Courtesy Lamp Module (C97)

Footwell Lamp - Left Front (C97)

Footwell Lamp - Left Rear (C97)

Footwell Lamp - Right Front (C97)

Footwell Lamp - Right Rear (C97)

Rear Compartment Courtesy Lamp

Rear Compartment Courtesy Lamp (B9Q)

Sillplate Lamp - Left Front (C97)

Sillplate Lamp - Left Rear (C97)

Sillplate Lamp - Right Front (C97)

Sillplate Lamp - Right Rear (C97)
