Power Seat Motor




Component Connector End Views

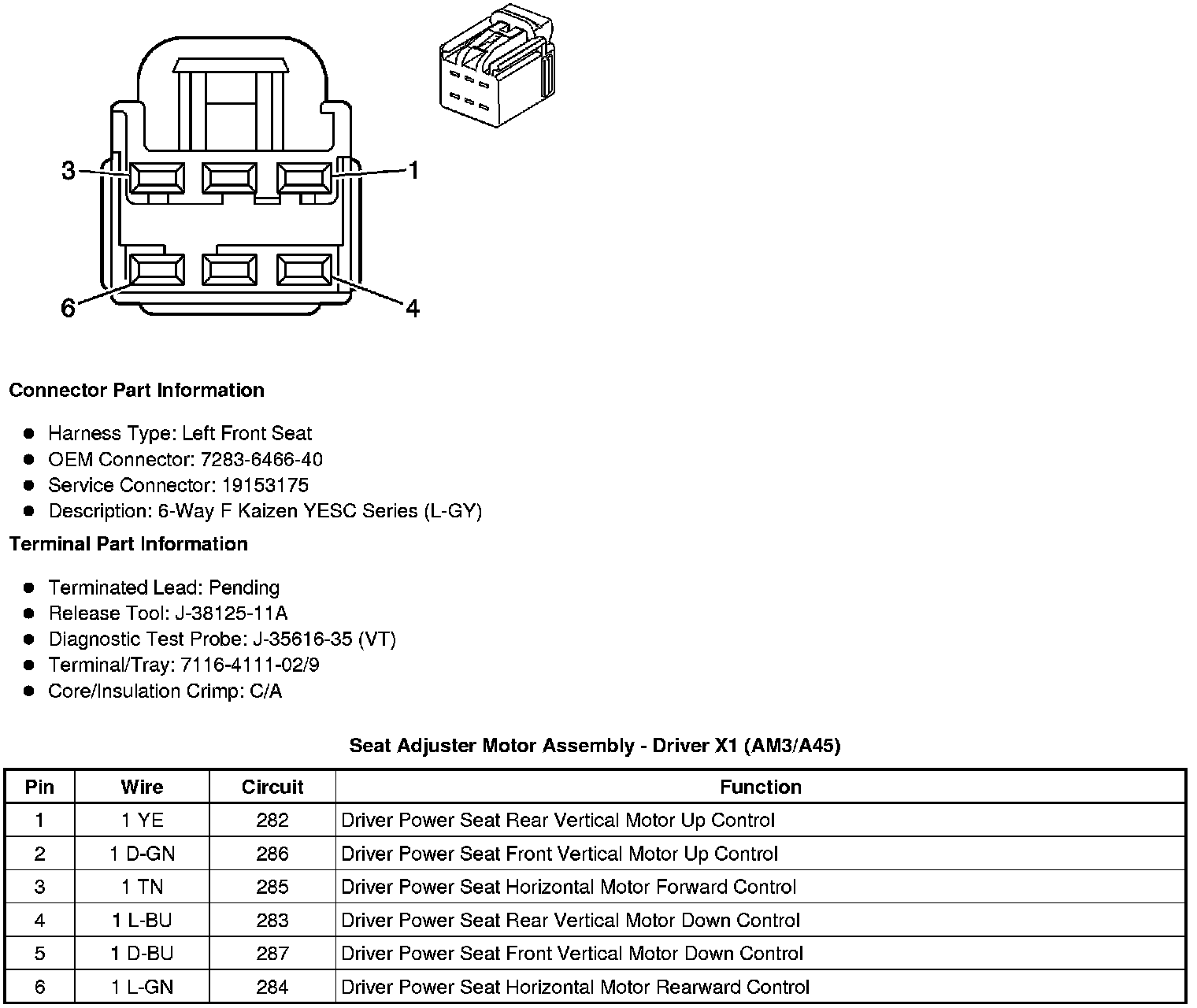

Seat Adjuster Motor Assembly - Driver X1 (AM3/A45)

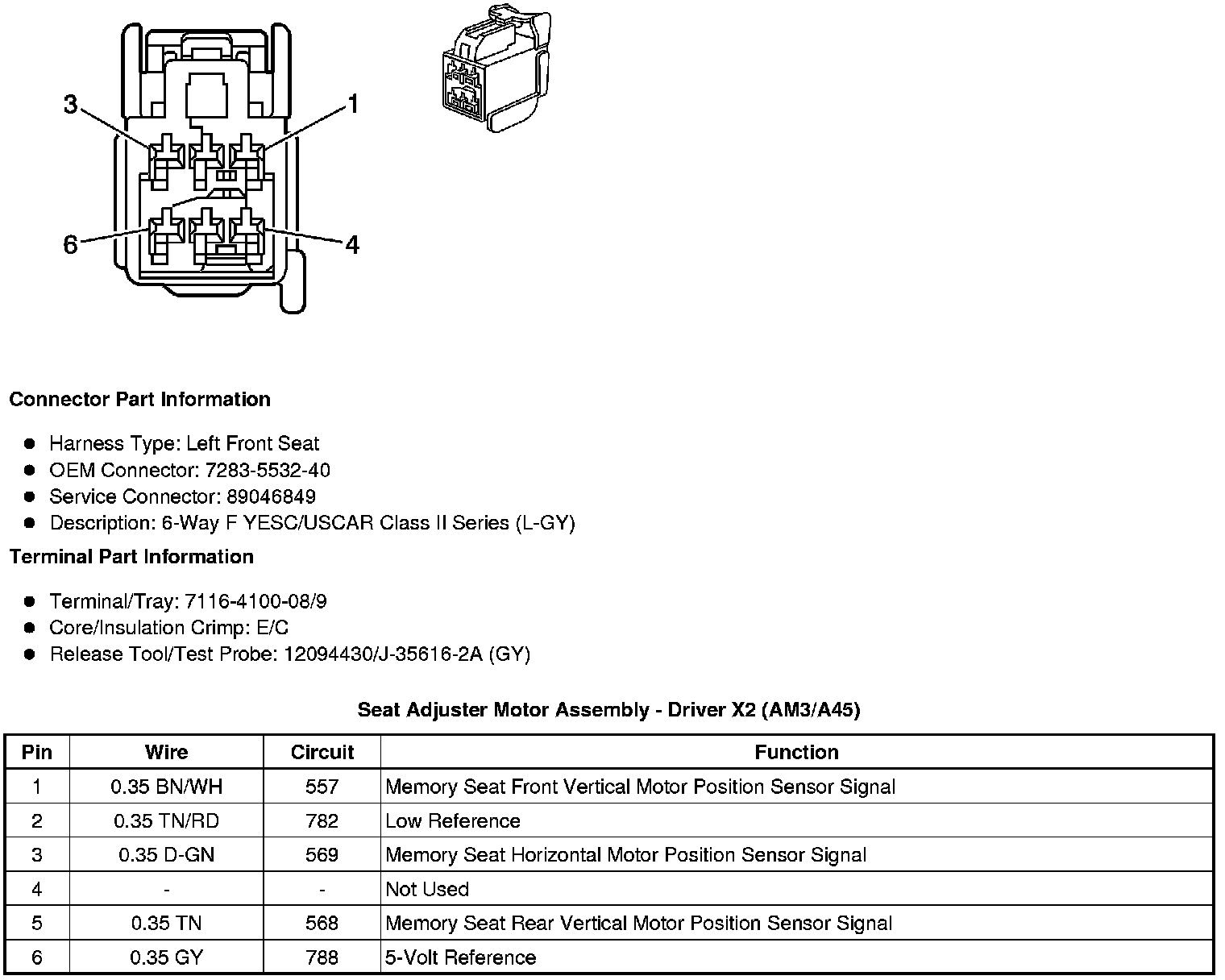

Seat Adjuster Motor Assembly - Driver X2 (AM3/A45)

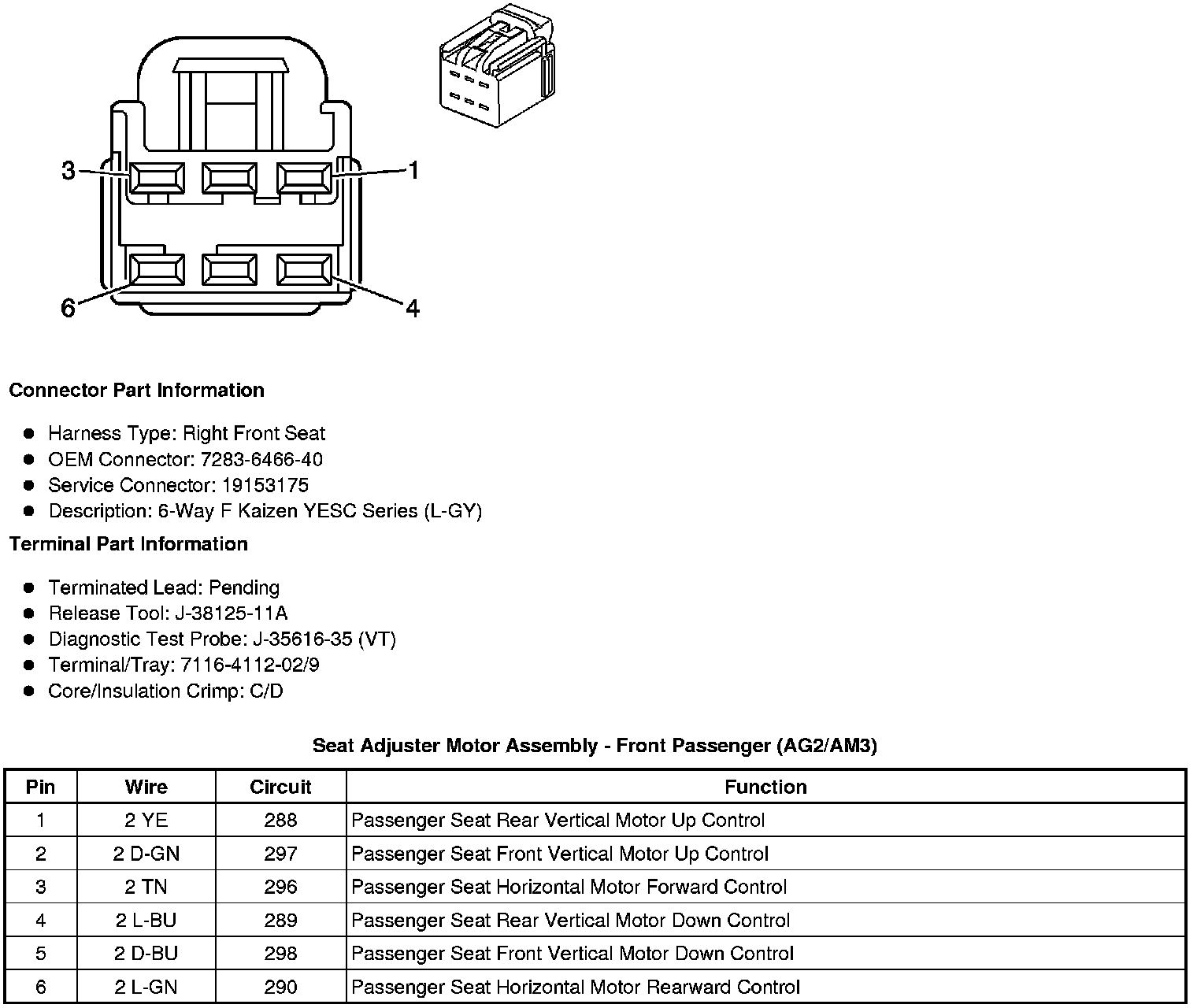

Seat Adjuster Motor Assembly - Front Passenger (AG2/AM3)






Seat Lumbar Horizontal Motor - Left Rear (ARC)






Seat Lumbar Horizontal Motor - Right Rear (ARC)






Seat Lumbar Massage Motor Driver Horizontal Motor (AM3) (Part of Seat Lumbar Massage Motor - Driver)






Seat Lumbar Massage Motor Driver Vertical Motor (AM3) (Part of Seat Lumbar Massage Motor - Driver)

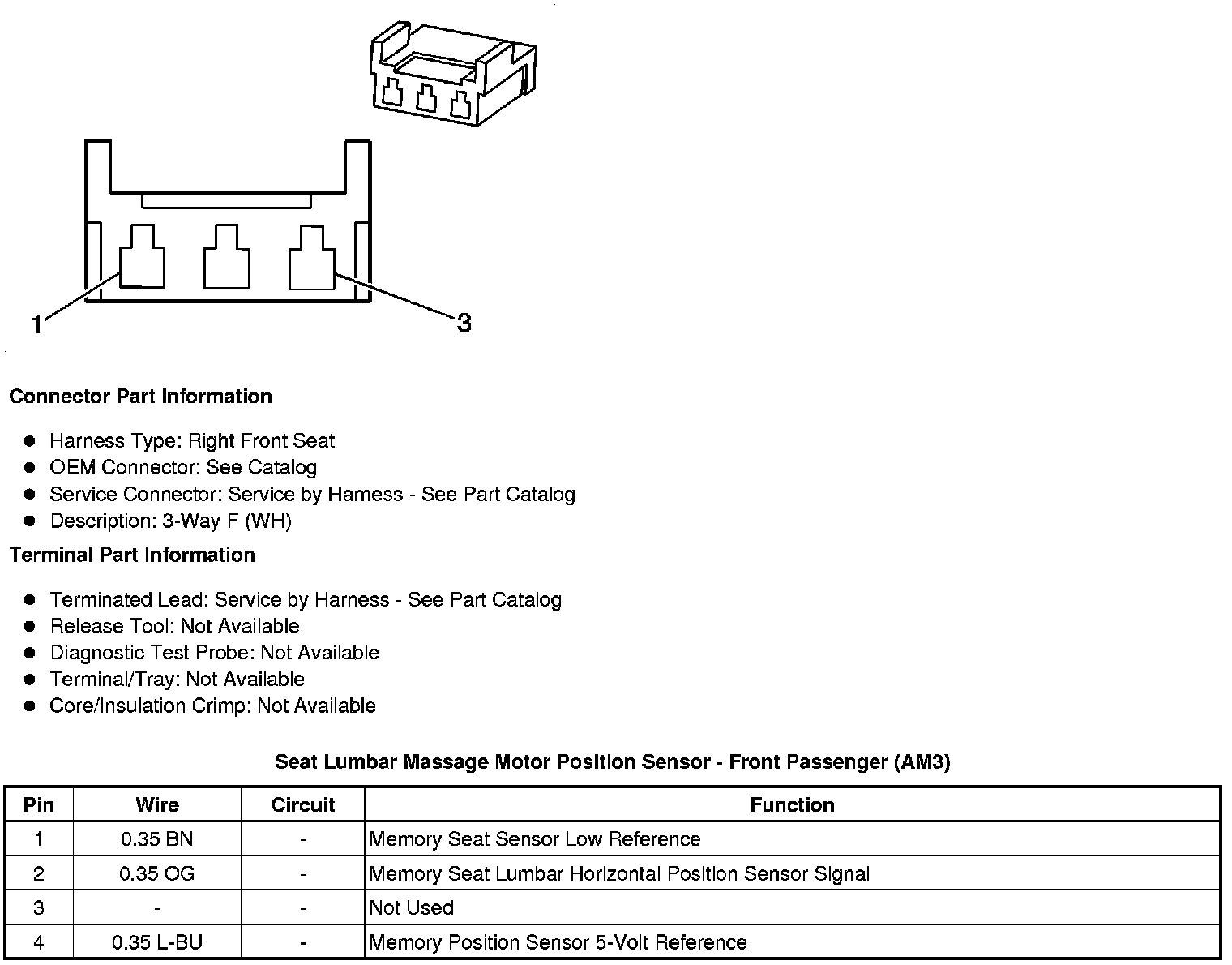

Seat Lumbar Massage Motor Position Sensor - Front Passenger (AM3)






Seat Lumbar Vertical Motor - Left Rear (ARC)






Seat Lumbar Vertical Motor - Right Rear (ARC)






Seat Rear Horizontal Position Sensor - Driver (A45) (Part of Seat Adjuster Motor Assembly Driver)






Seat Rear Vertical Position Sensor - Driver (A45) (Part of Seat Adjuster Motor Assembly Driver)






Seat Recline Motor - Driver (AG1, A45) (Part of Driver Seat Recline Motor Assembly)






Seat Recline Motor - Front Passenger (AM3)
