Suspension Control Module

Component Connector End Views

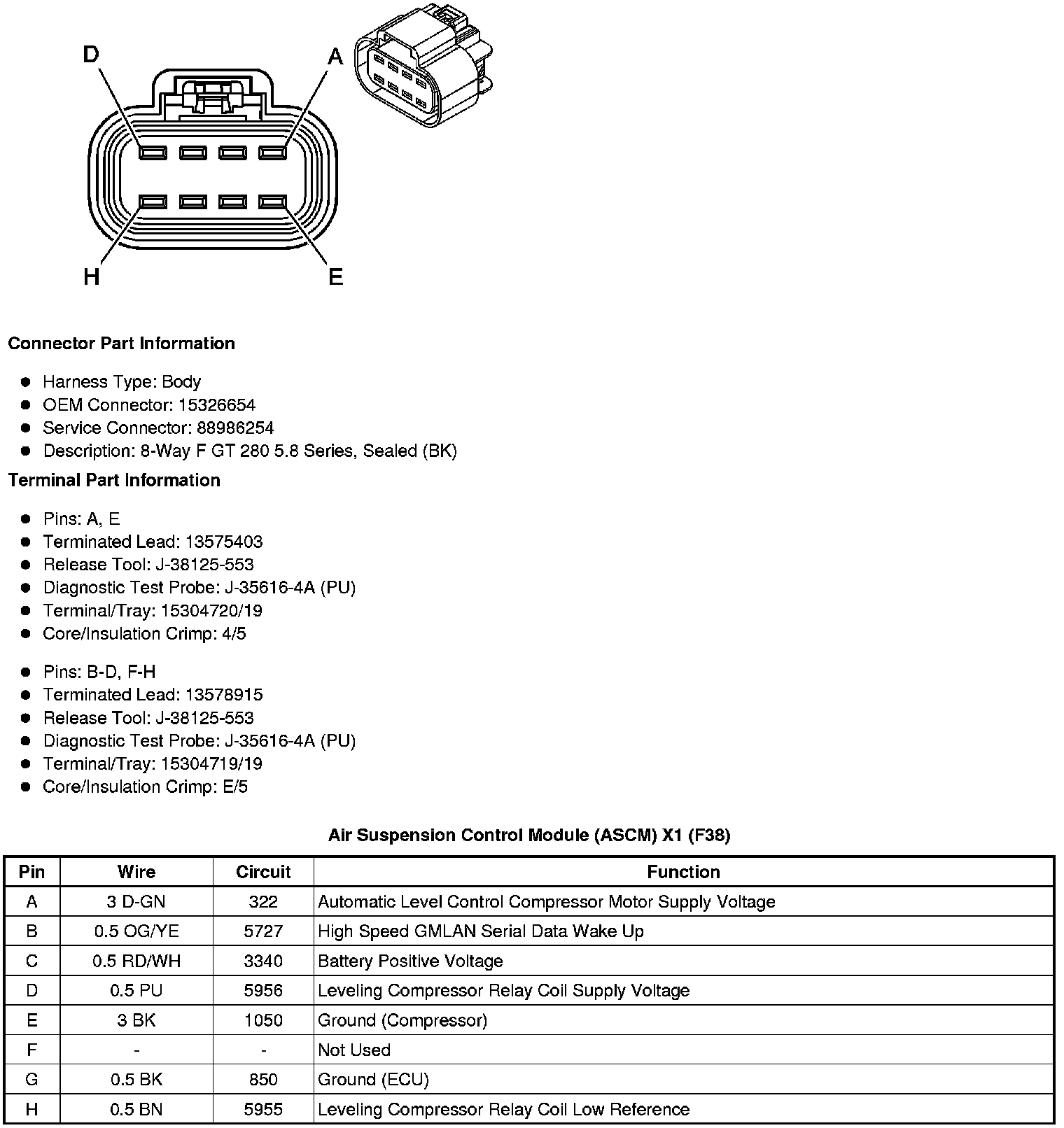

Air Suspension Control Module (ASCM) X1 (F38)

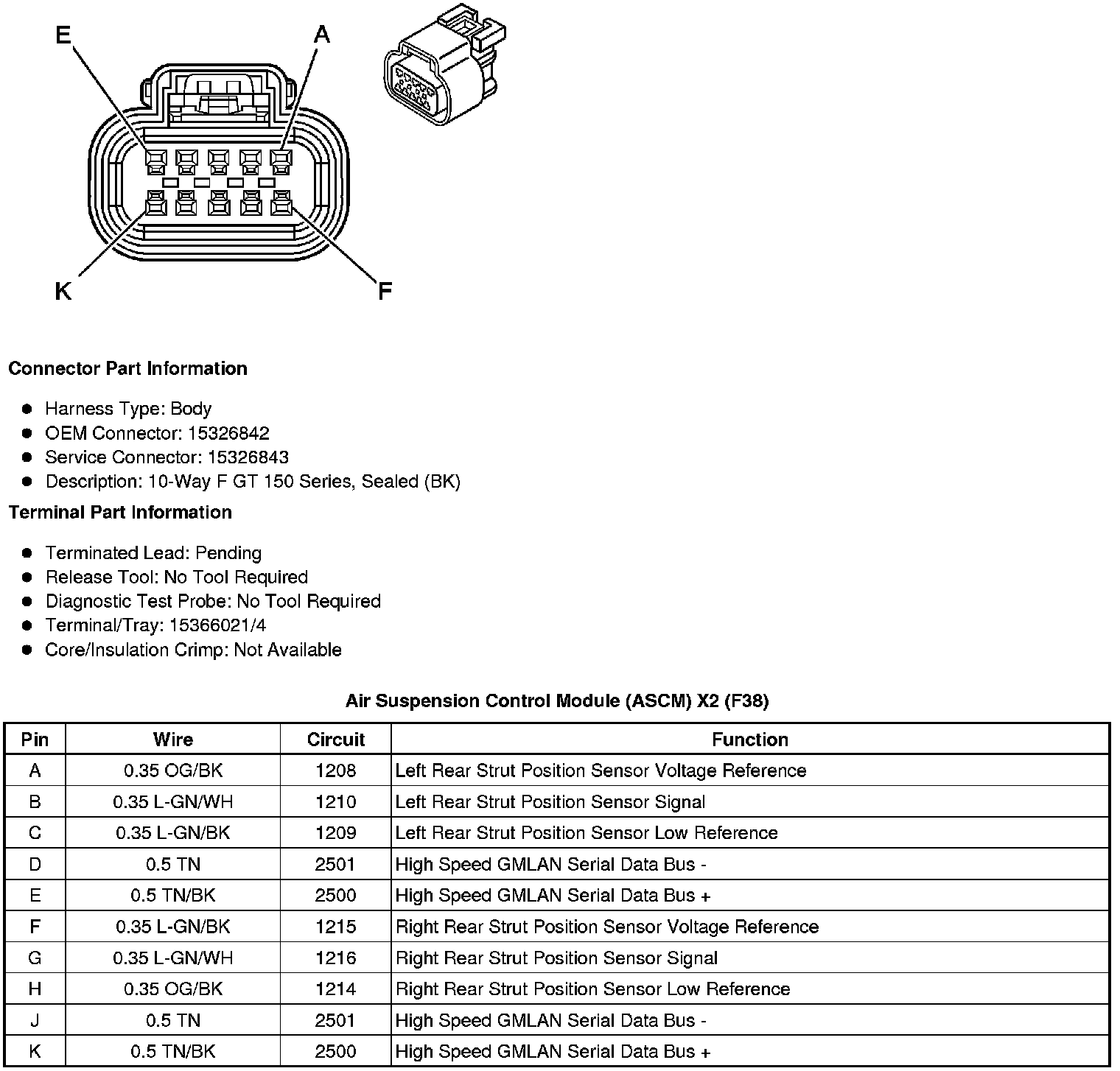

Air Suspension Control Module (ASCM) X2 (F38)

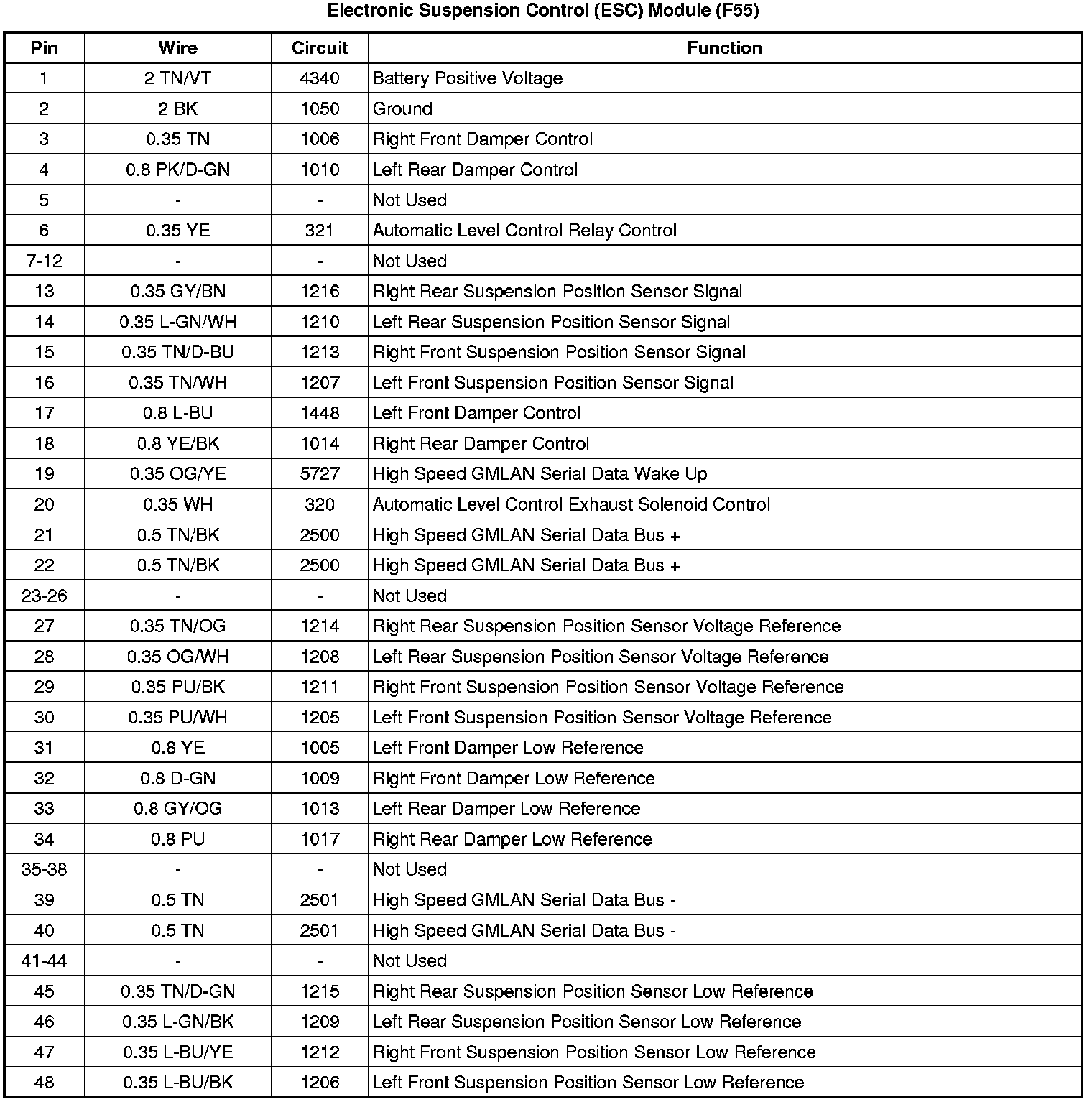

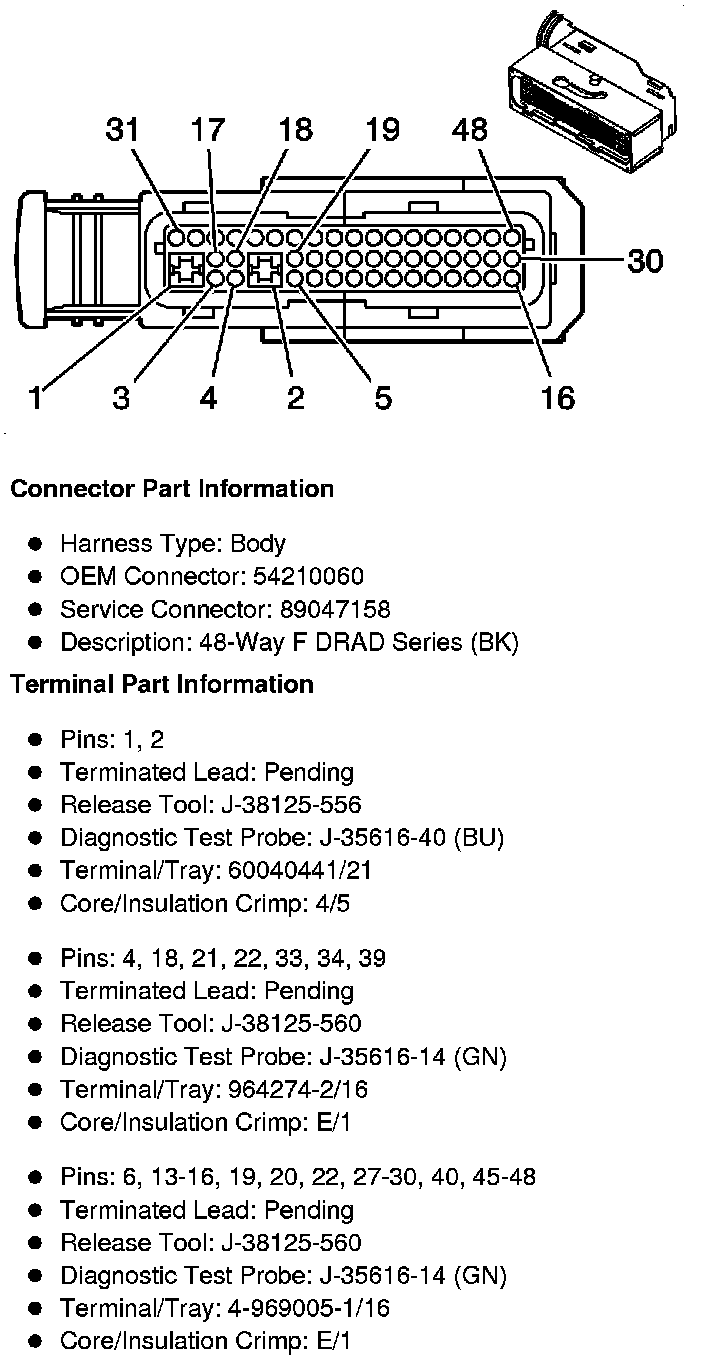

Electronic Suspension Control (ESC) Module (F55)

Automatic Level Control Module (FE1)
