Headliner Components - Bottom




Passenger Compartment/Roof Component Views

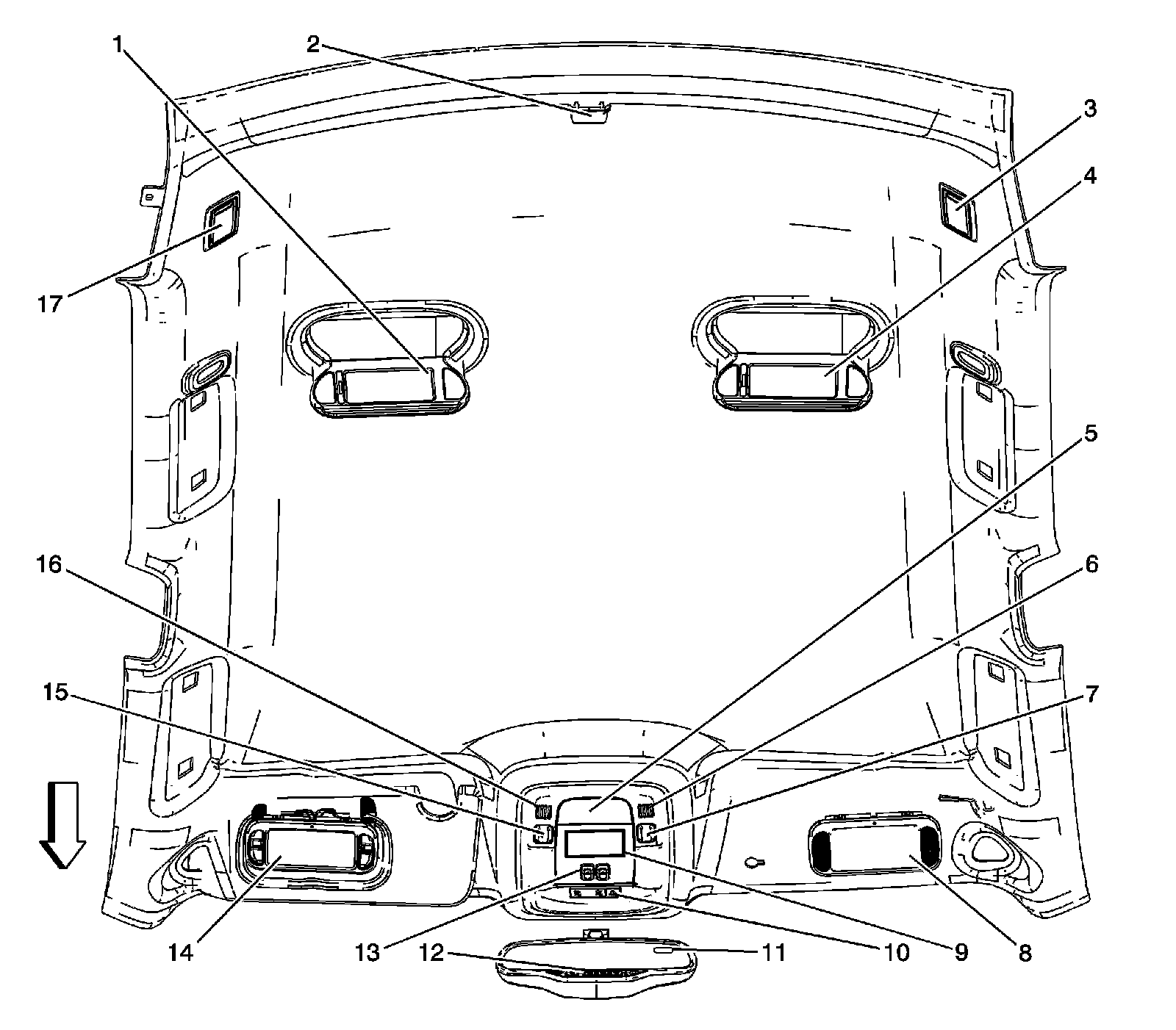

Headliner Components - Bottom




1 - Sunshade - Left Rear (DC5)
2 - Rear Park Assist Indicator (UFR)
3 - Courtesy Lamp - Right Rear (V4U)
4 - Sunshade - Right Rear (DC5)
5 - Garage Door Opener Transmitter (UG1)
6 - Noise Compensation Microphone (UQA)
7 - Courtesy Lamp - Right Front (V4U)
8 - Sunshade - Right Front
9 - Sunshade Switch (DE9)
10 - Inflatable Restraint I/P Module Indicator
11 - Inside Rearview Mirror (ISRVM)
12 - Onstar Button Assembly (UE1)
13 - Sunroof Switch (CF5)
14 - Sunshade - Left Front (without V4U)
15 - Courtesy Lamp - Left Front (V4U)
16 - Cellular Microphone (UE1/U3Q/U3R/U3U)
17 - Courtesy Lamp - Left Rear (V4U)
