Power Seat Motor




Component Connector End Views

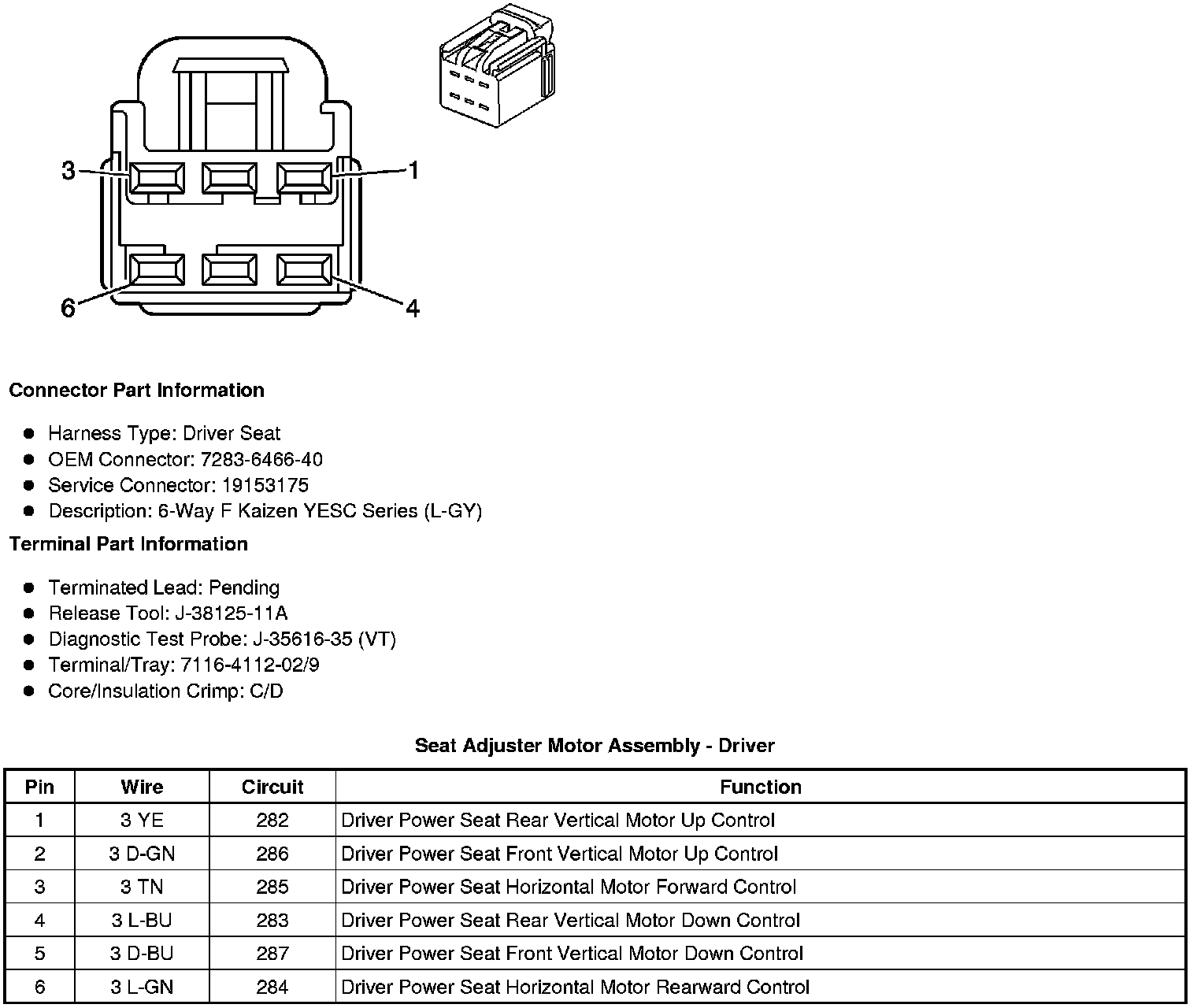

Seat Adjuster Motor Assembly - Driver

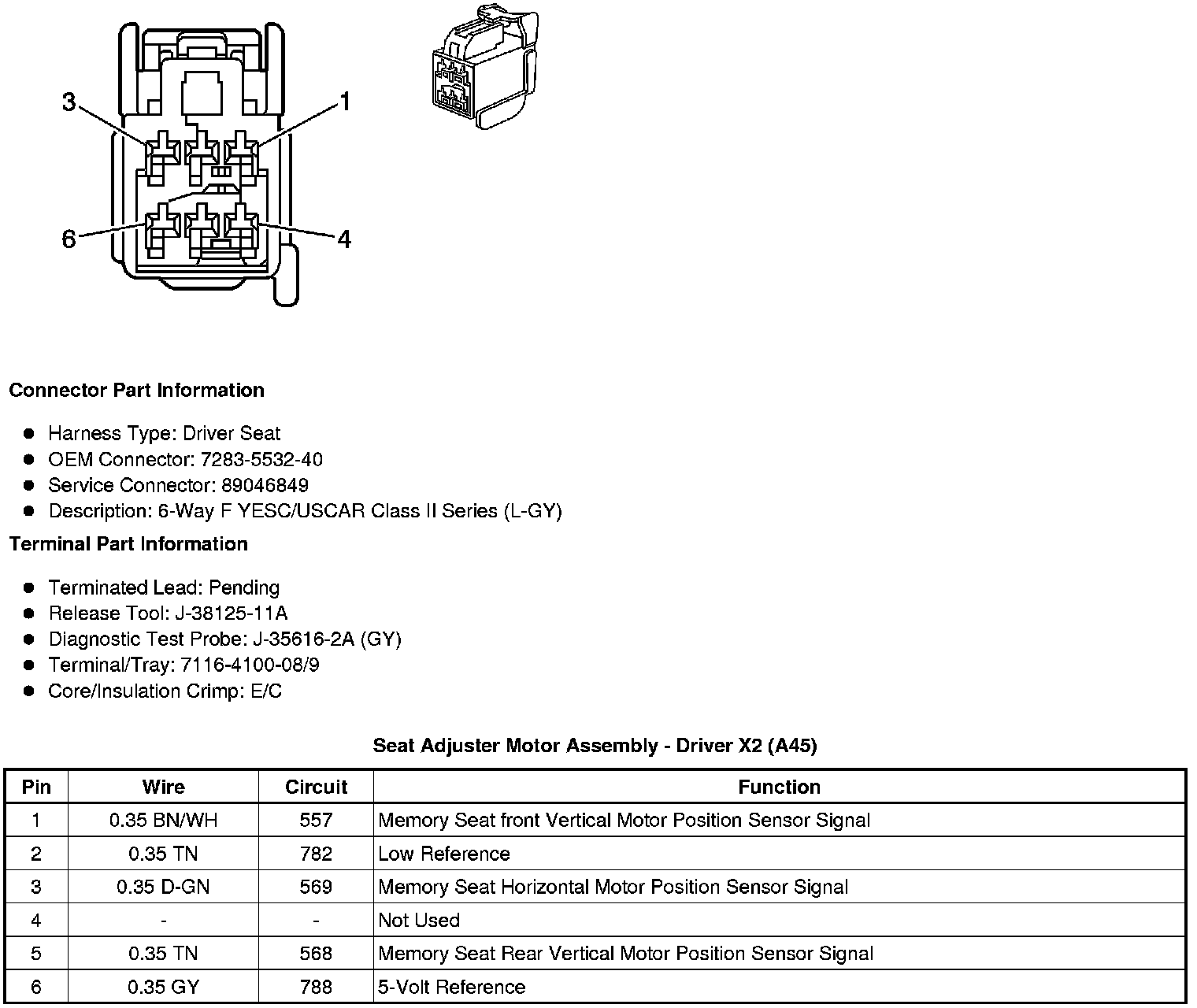

Seat Adjuster Motor Assembly - Driver X2 (A45)

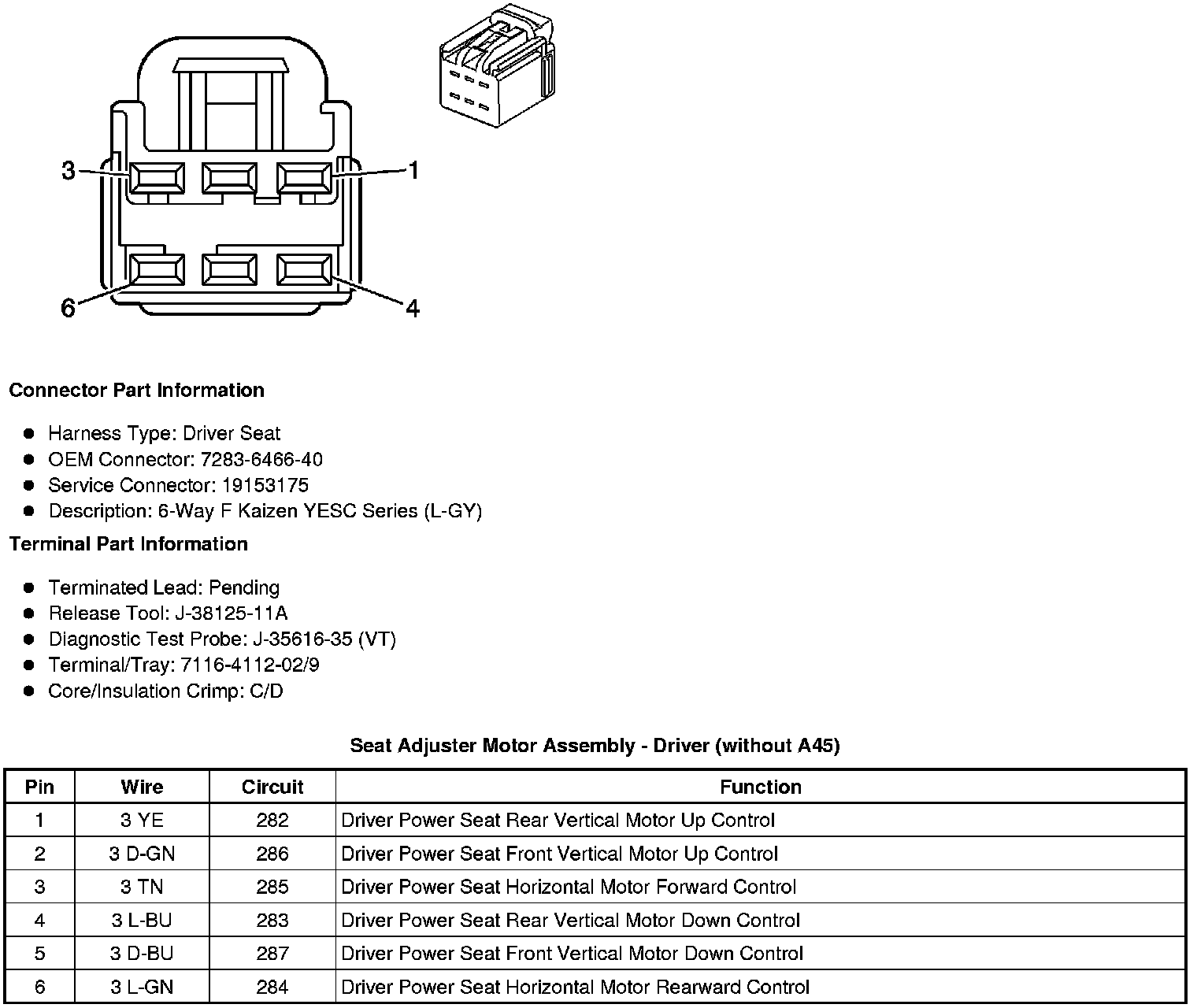

Seat Adjuster Motor Assembly - Driver (without A45)

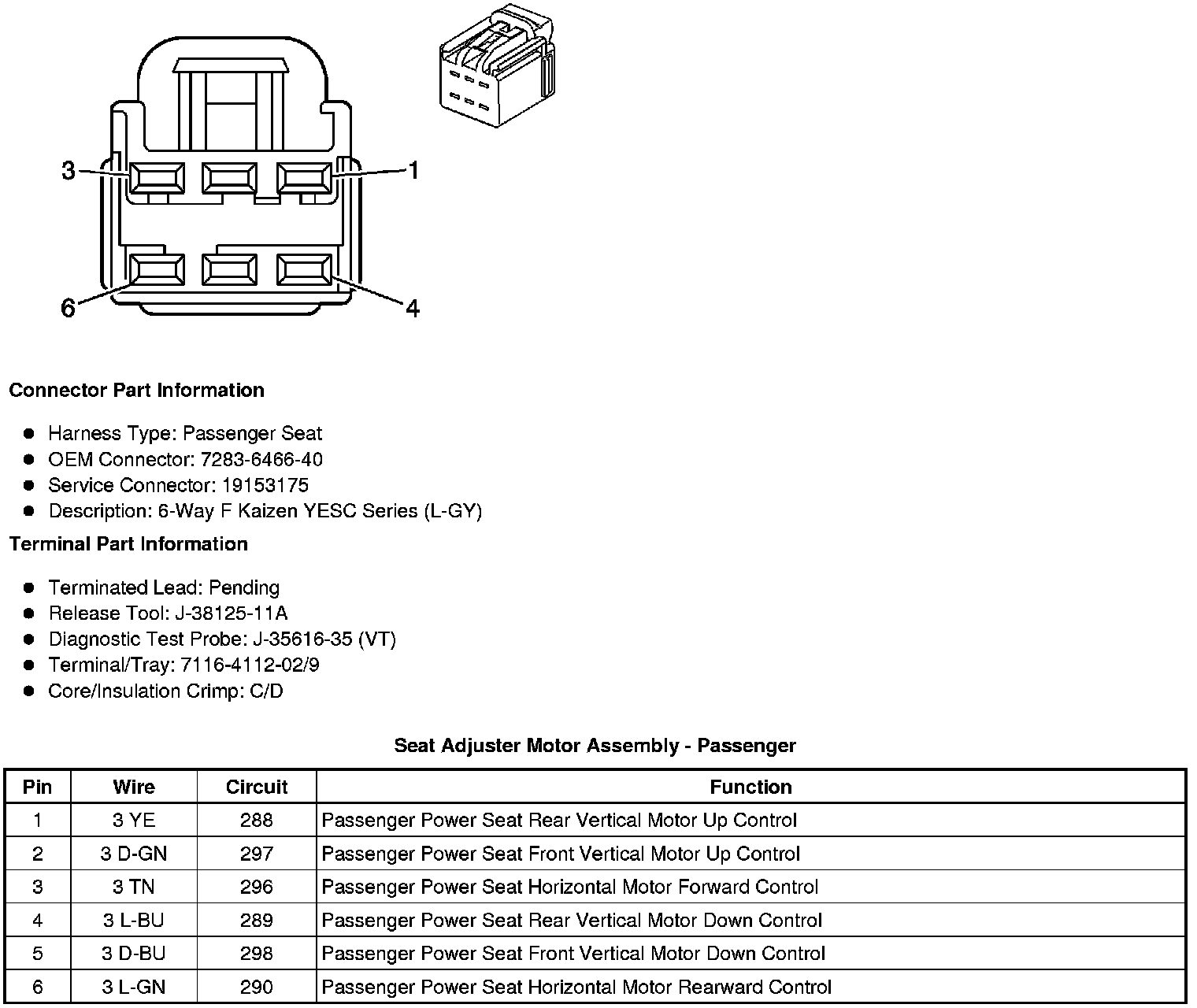

Seat Adjuster Motor Assembly - Passenger





Seat Lumbar Horizontal Motor - Driver (AL2)

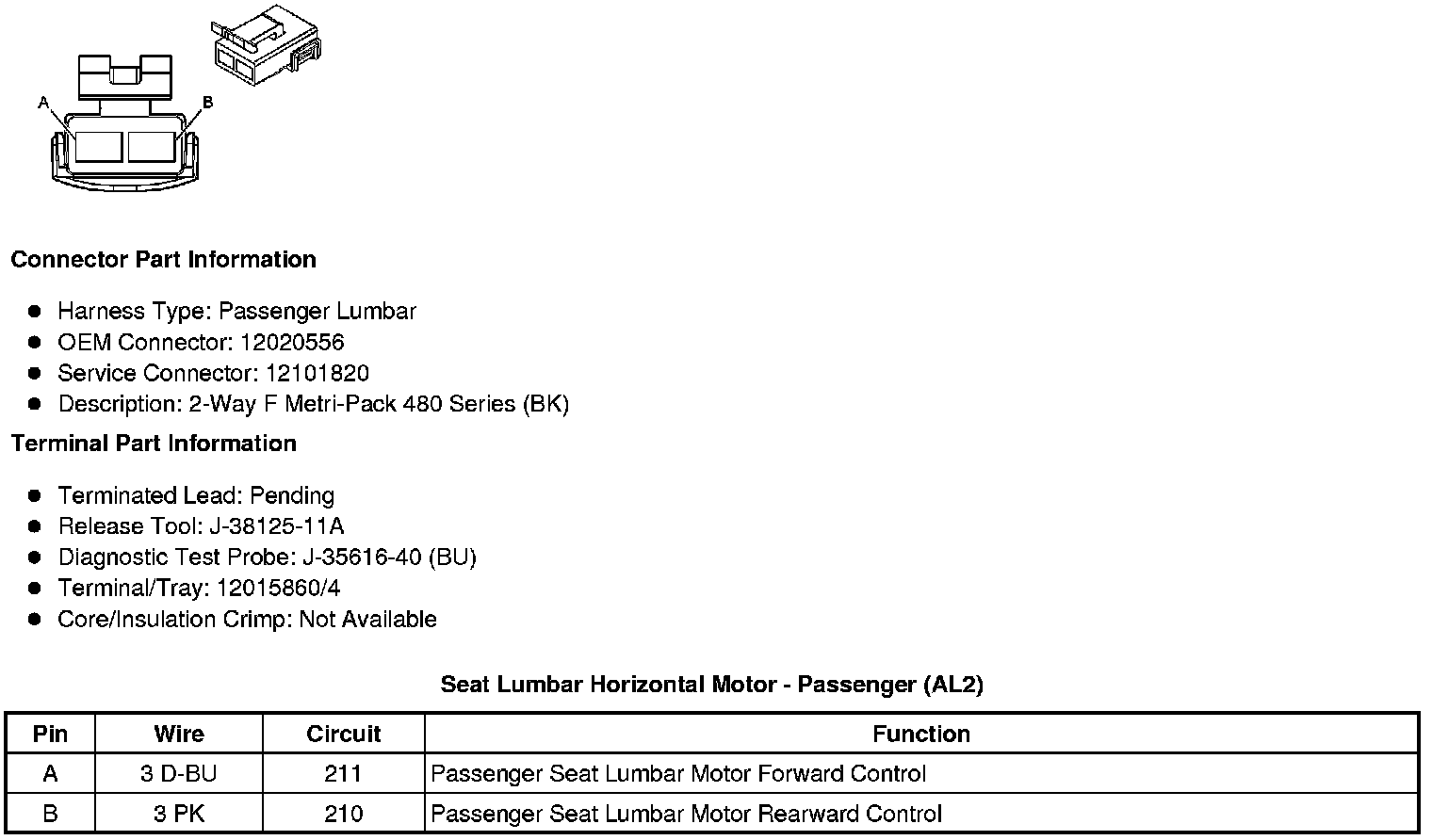

Seat Lumbar Horizontal Motor - Passenger (AL2)





Seat Lumbar Horizontal Motor Position Sensor - Driver (AL2)

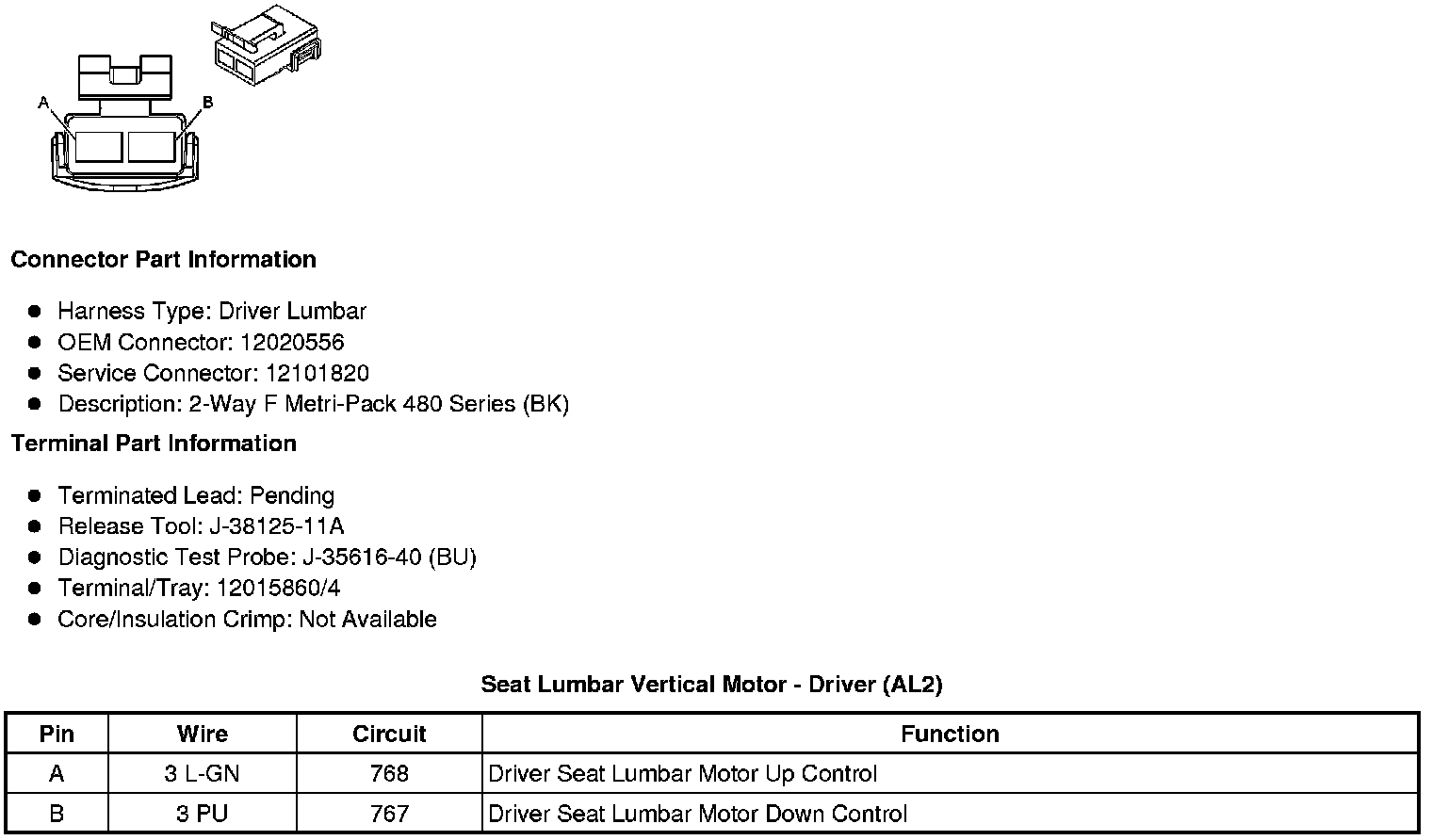

Seat Lumbar Vertical Motor - Driver (AL2)

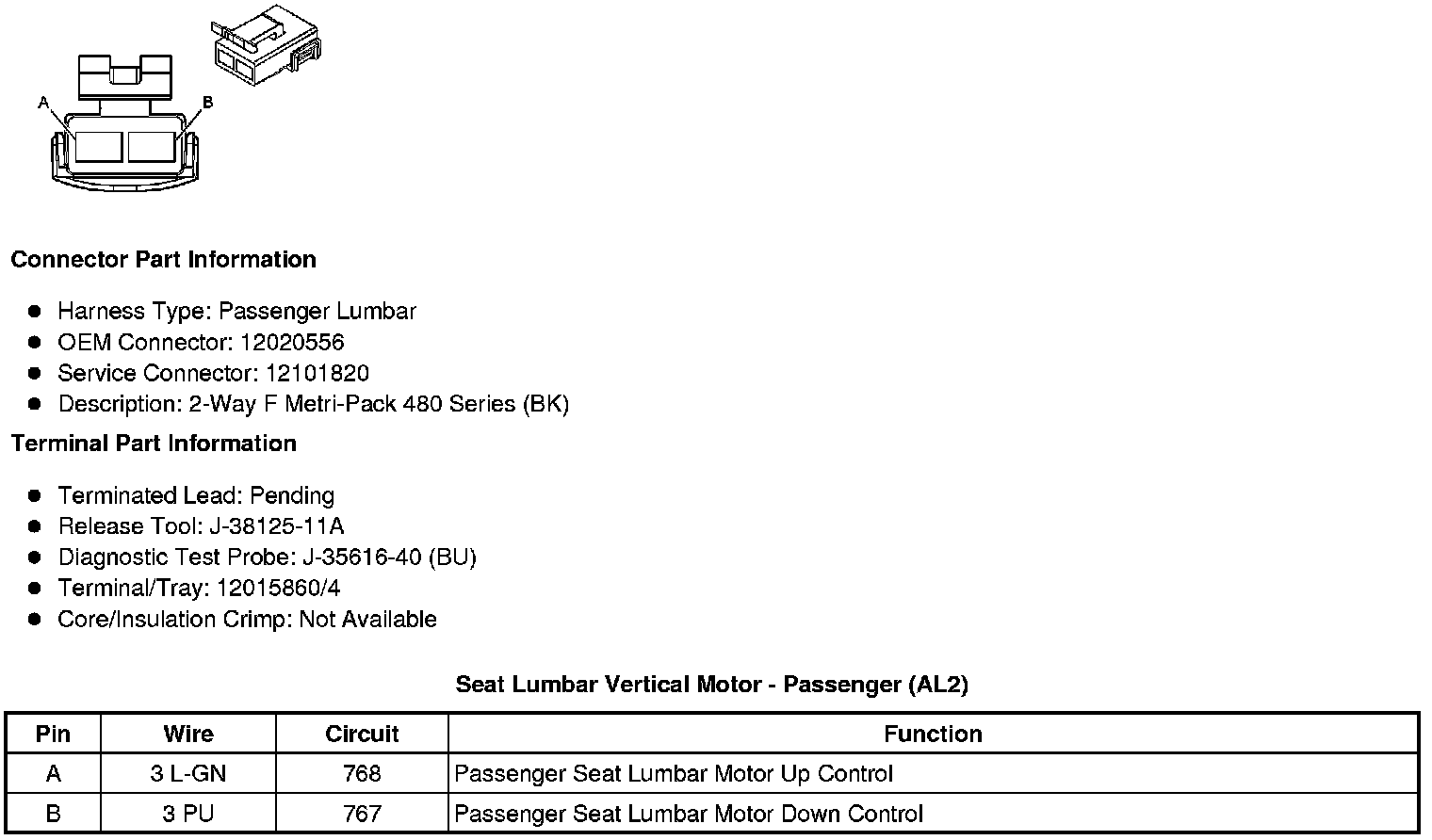

Seat Lumbar Vertical Motor - Passenger (AL2)

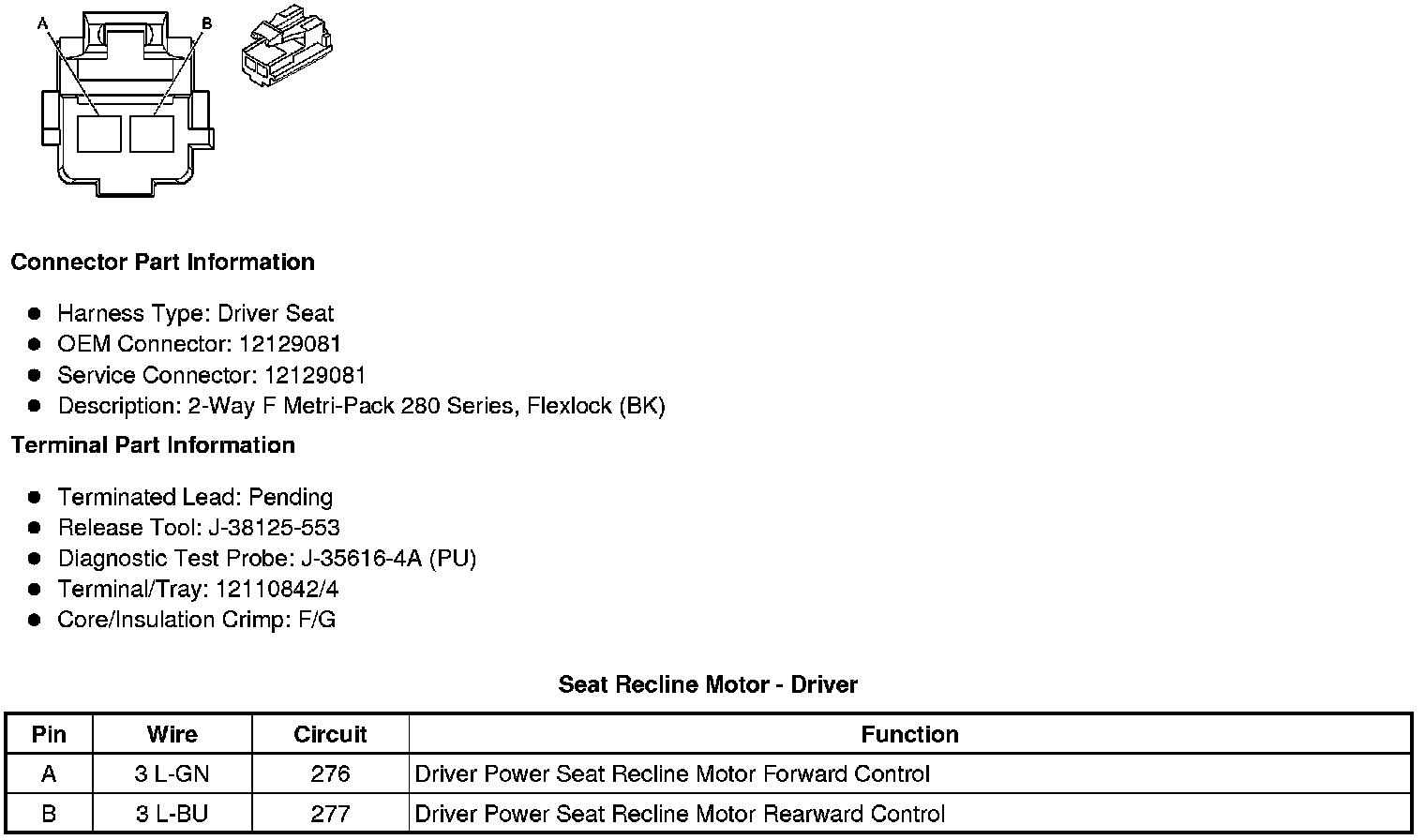

Seat Recline Motor - Driver





Seat Recline Motor - Passenger
