Front Fascia




Front of Vehicle/Engine Compartment Component Views

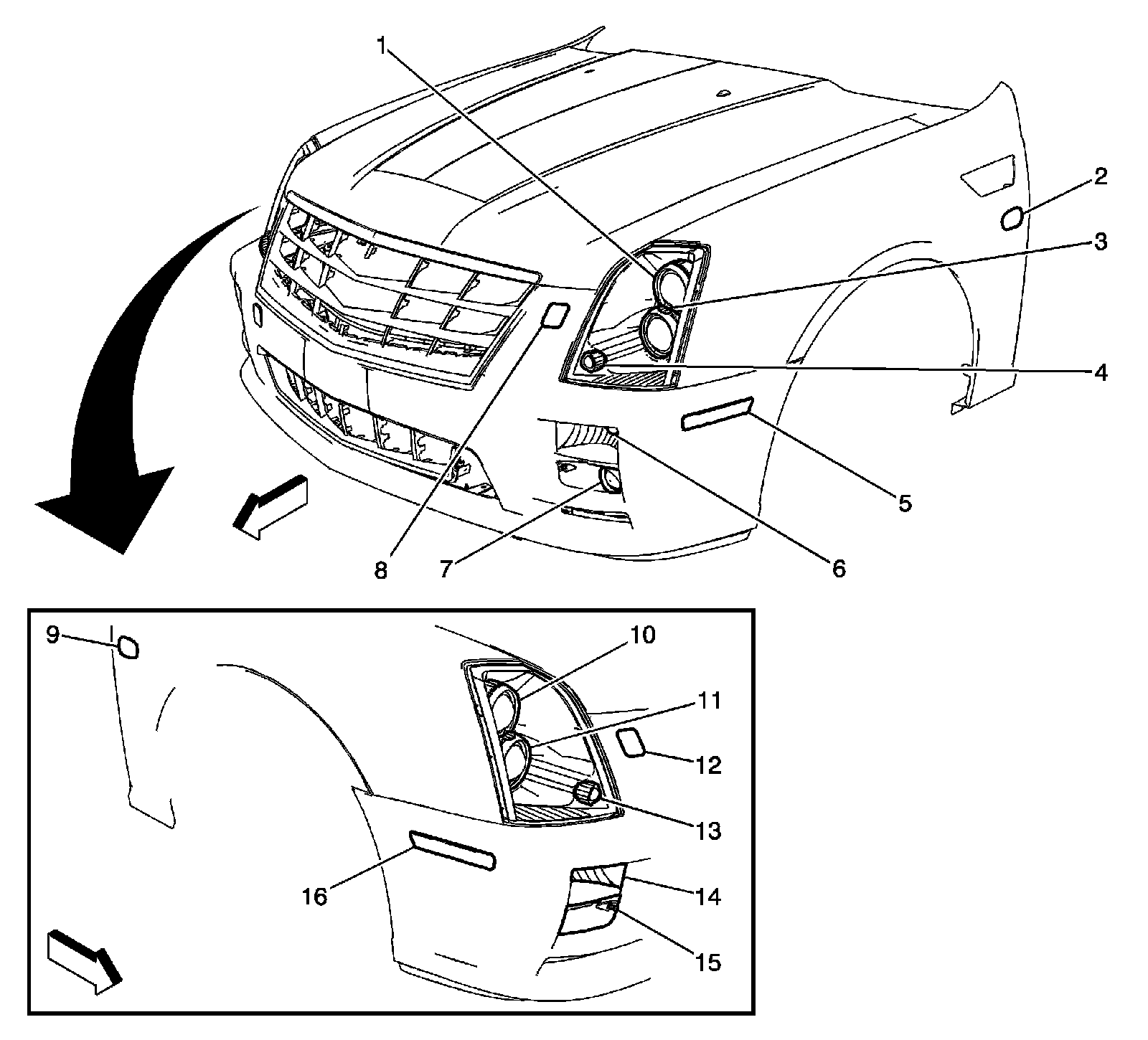

Front Fascia




1 - Headlamp - Left Low Beam (without TT6/TT7/TT8)
2 - Repeater Lamp - Left Front
3 - Headlamp - Left High Beam
4 - Park Lamp - Left Front
5 - Marker Lamp - Left Front
6 - Turn Signal Lamp - Left Front
7 - Fog Lamp - Left Front
8 - Heated Washer Nozzle - Left (XA7)
9 - Repeater Lamp - Right Front
10 - Headlamp - Right Low Beam (without TT6/TT7/TT8)
11 - Headlamp - Right High Beam
12 - Heated Washer Nozzle - Left (XA7)
13 - Park Lamp - Right Front
14 - Turn Signal Lamp - Right Front
15 - Fog Lamp - Right Front
16 - Marker Lamp - Right Front
