Instrument Panel and Console 2 of 2

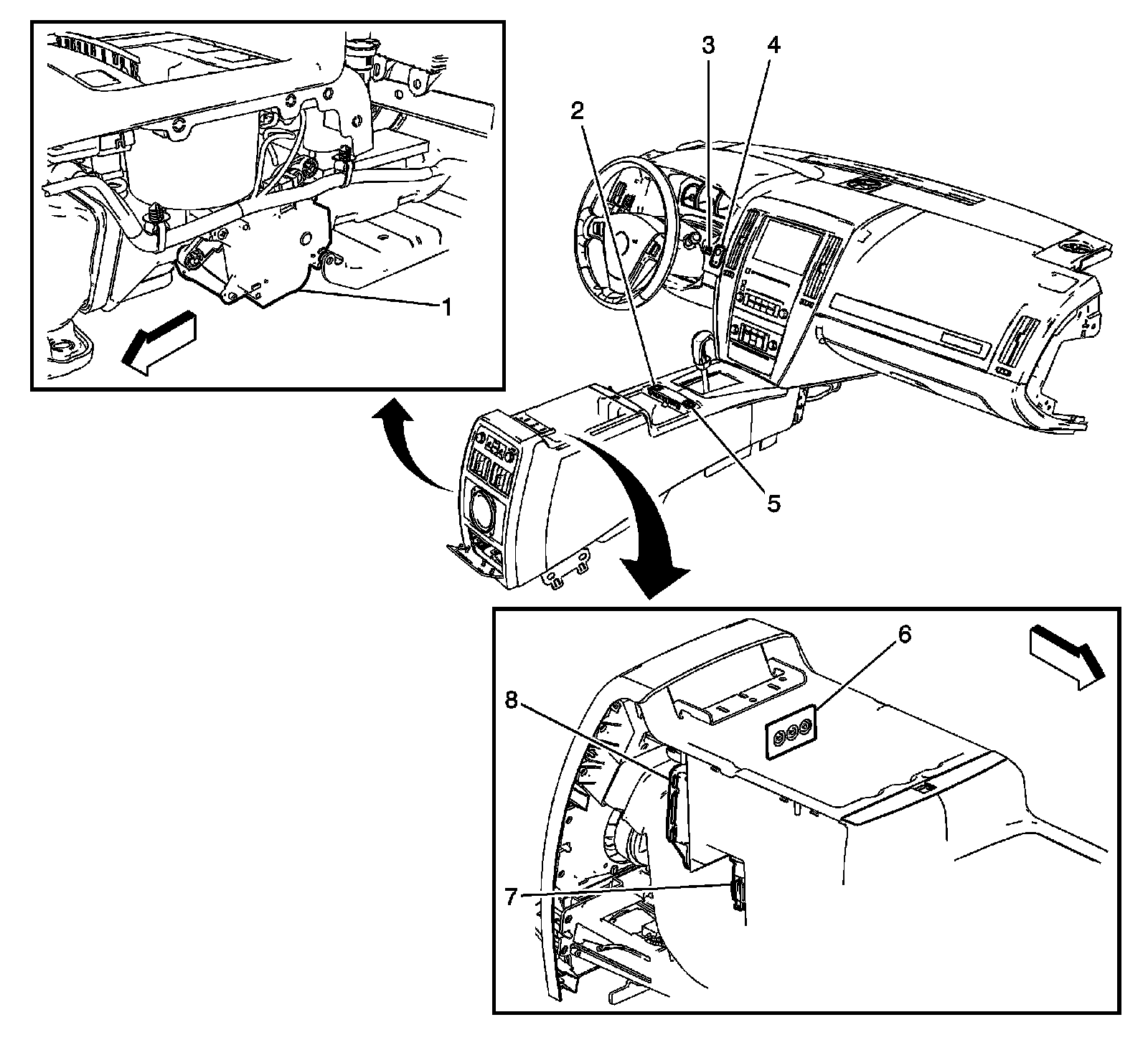

Instrument Panel/Center Console Component ViewsInstrument Panel and Console 2 of 21 - Mode Actuator-Auxiliary
2 - Hazard Warning Switch
3 - Air Temperature Sensor-Inside
4 - Ignition Mode Switch
5 - Traction Control Switch (TCS)
6 - Audio/Video Adapter (YQ4/YQ6/YQ7)
7 - Accessory Power Outlet - Center Console Compartment
8 - Keyless Entry Antenna
