Front Suspension

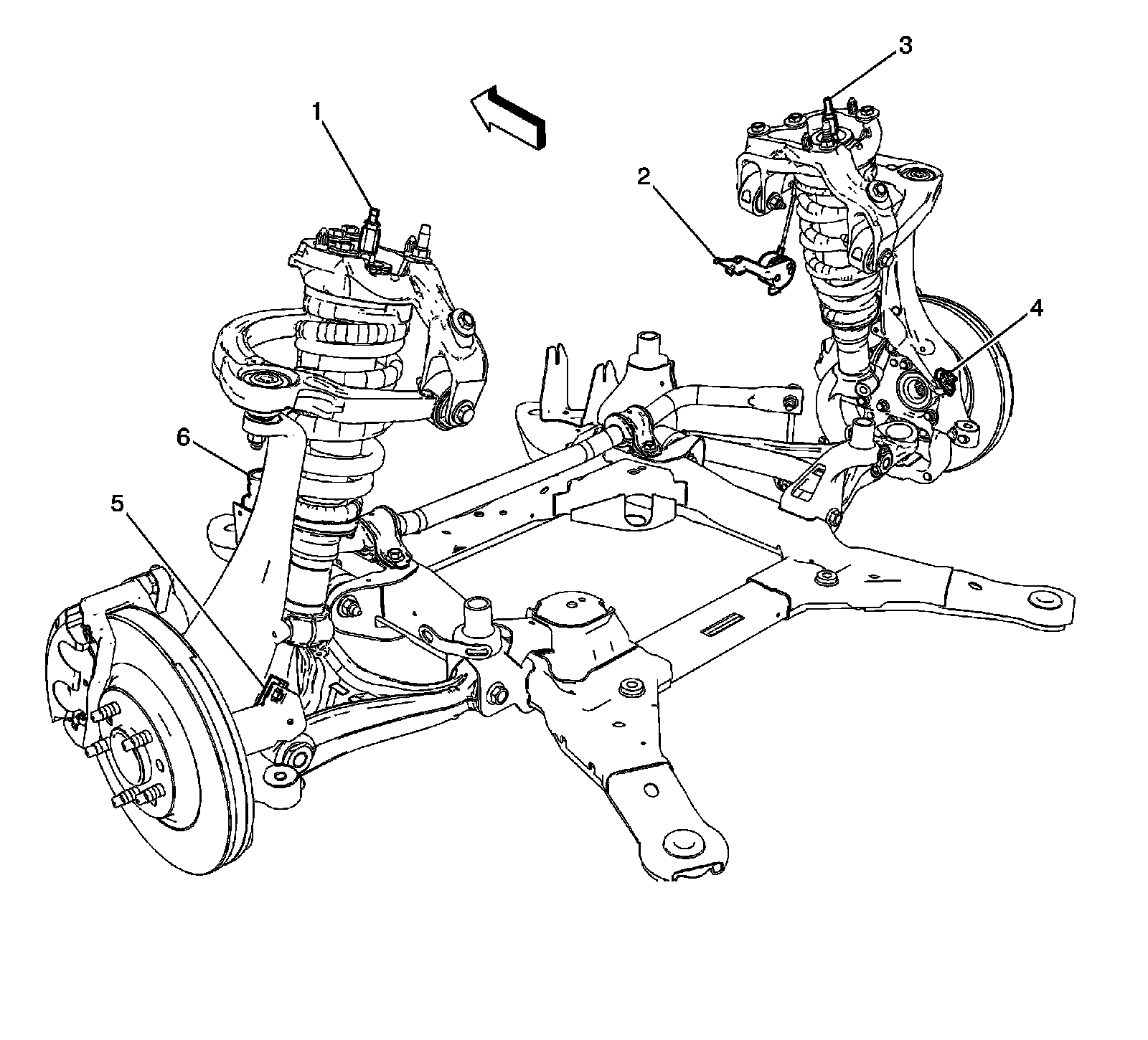

Wheels/Vehicle Underbody Component ViewsFront Suspension1 - Shock Absorber Actuator - Left Front (F55)
2 - Suspension Position Sensor - Right Front (F55)
3 - Shock Absorber Actuator - Right Front (F55)
4 - Wheel Speed Sensor (WSS) - Right Front
5 - Wheel Speed Sensor (WSS) - Left Front
6 - Suspension Position Sensor - Left Front (F55/TR7)
