Instrument Panel Harness Routing




Harness Routing Views

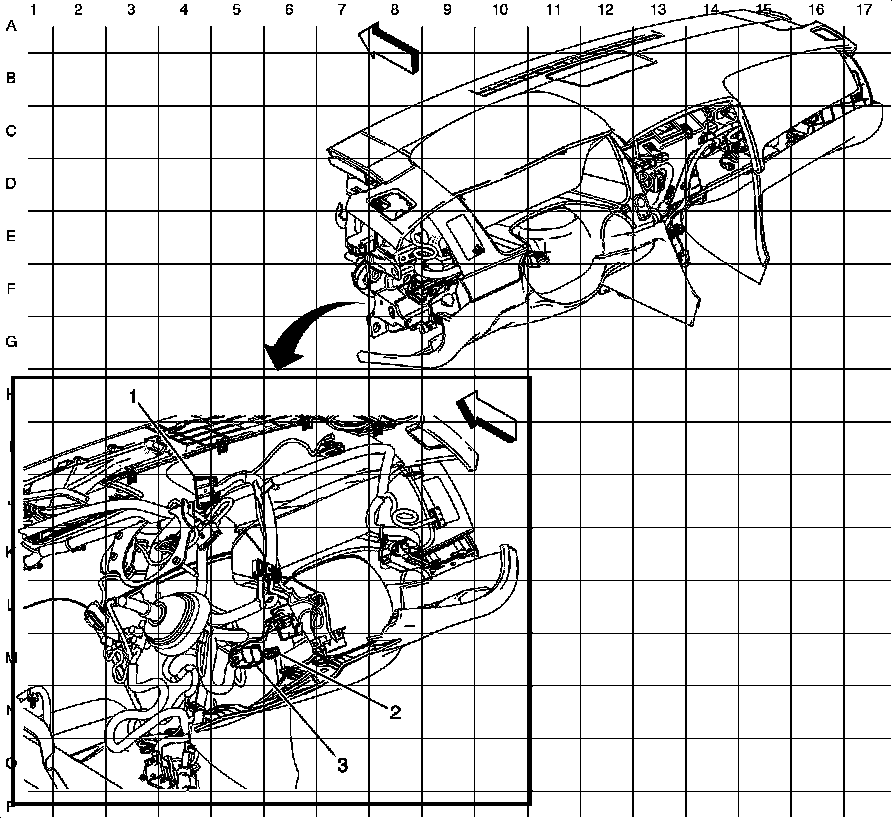

Instrument Panel Harness Routing - Left Side of Instrument Panel




1 - JX201
2 - X218
3 - X202

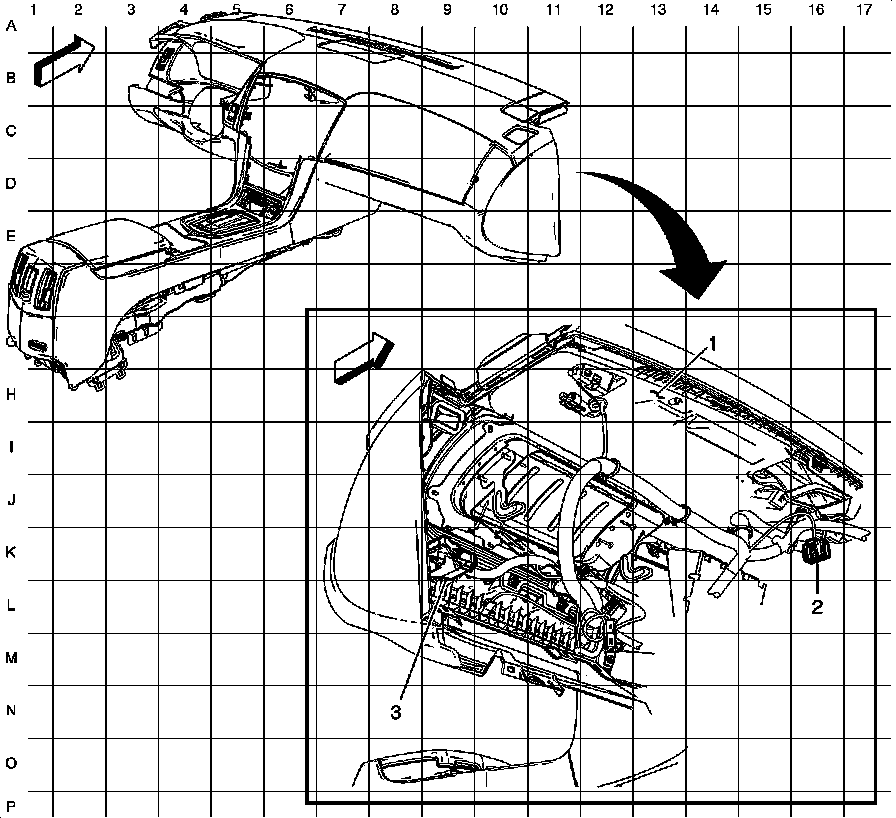

Instrument Panel Harness Routing - Right Side of Instrument Panel




1 - X209
2 - X214
3 - X200

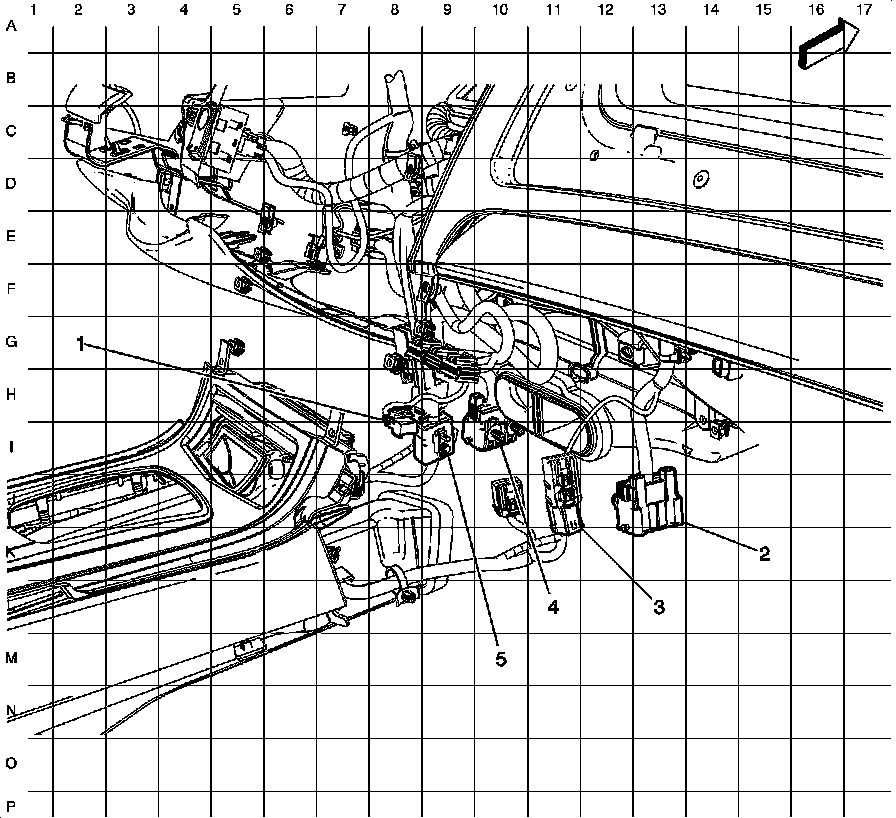

Instrument Panel Harness Routing - Below Center Console




1 - X215
2 - X201
3 - Fuse Block - Steering Column
4 - X204
5 - X304

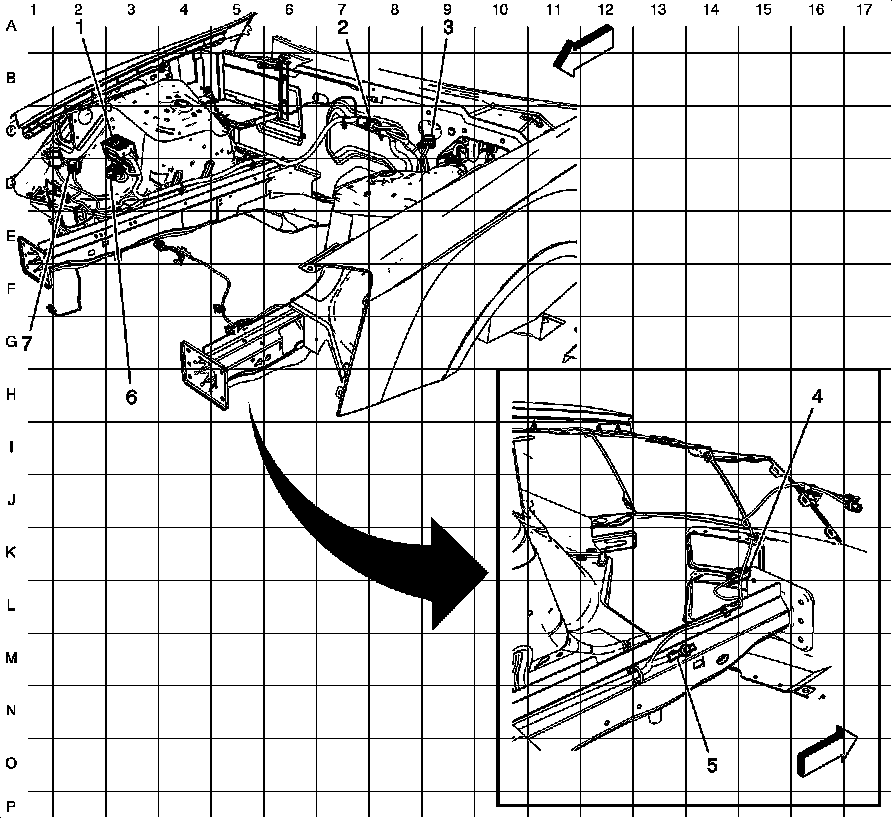

Instrument Panel Harness Routing - Engine Compartment




1 - X103
2 - X102
3 - JX201
4 - X116
5 - G101
6 - X111
7 - X112
