Starter Motor: Service and Repair

Starter Replacement (LLT)

Removal Procedure

1. Turn OFF the ignition.
2. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (With Side Post) (Battery Negative Cable Disconnection and Connection (With Side Post))Battery Negative Cable Disconnection and Connection (With Top Post) (Battery Negative Cable Disconnection and Connection (With Top Post)).
3. Remove the left catalytic converter. Refer to Catalytic Converter Replacement - Left Side (Catalytic Converter Replacement - Left Side).

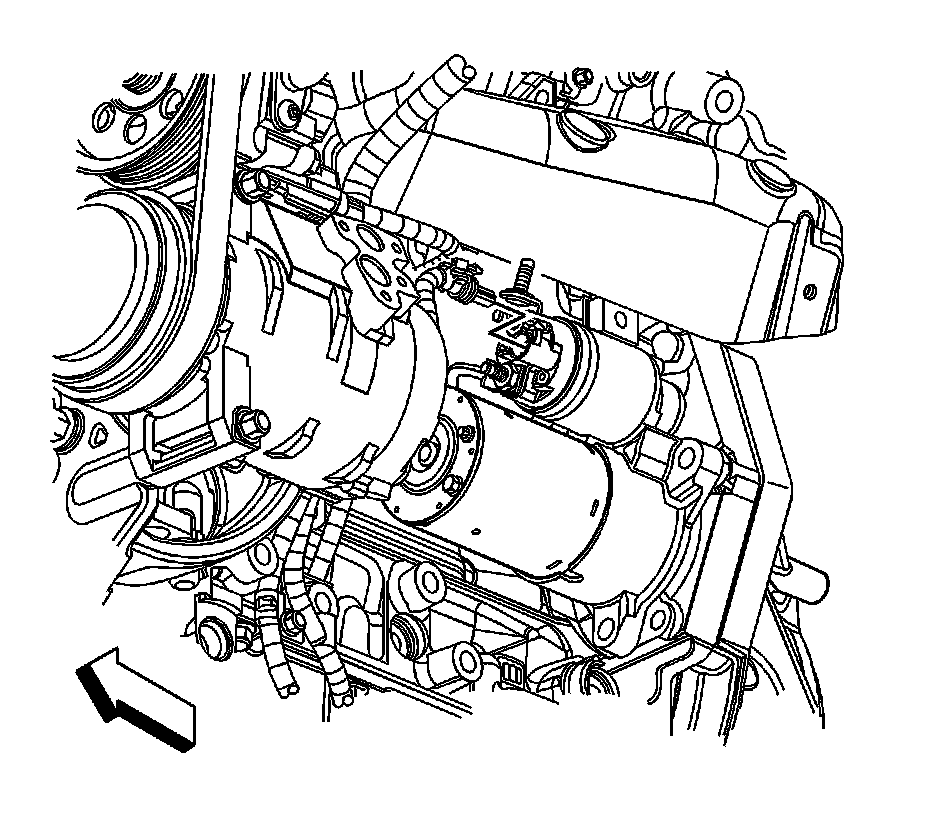

4. Remove the starter solenoid electrical connector from the starter.

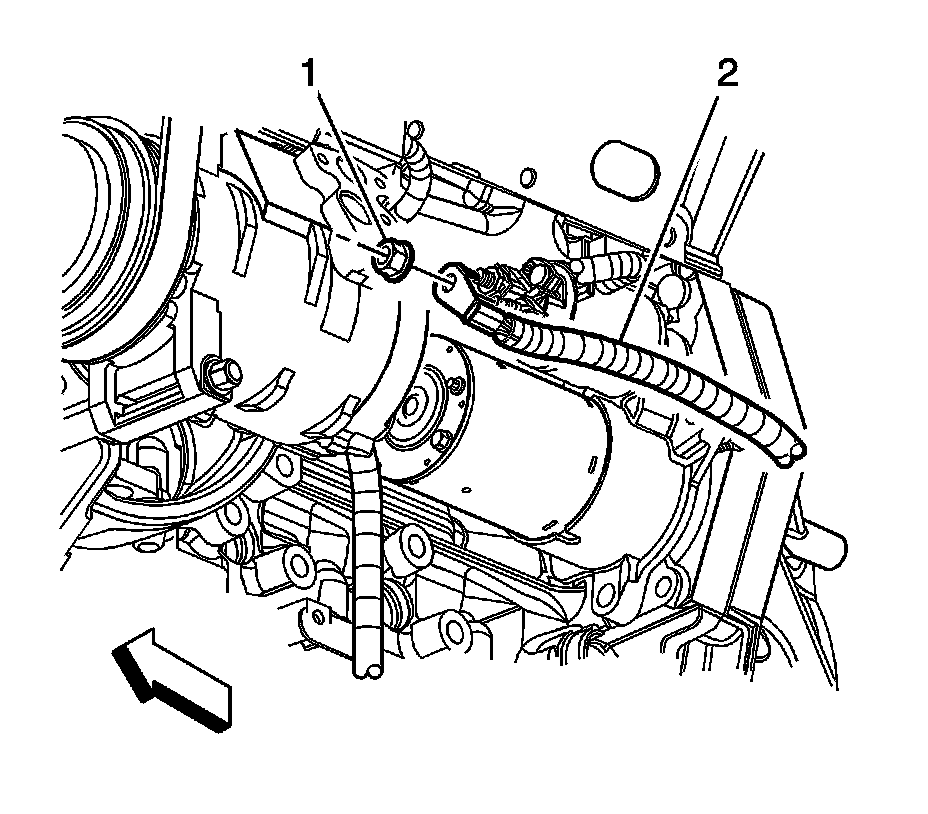

5. Remove the starter terminal nut (1) and the battery positive cable (2) from the starter.




6. Remove the starter motor bolts.
7. Remove the starter motor.

Installation Procedure




1. Install the starter motor.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the starter motor mounting bolts and tighten to 50 Nm (37 lb ft).




3. Install the battery positive cable (2) to the starter and install the starter terminal nut (1) and tighten to 13 Nm (115 lb in).




4. Install the electrical connector to the starter solenoid.
5. Install the left catalytic converter. Refer to Catalytic Converter Replacement - Left Side (Catalytic Converter Replacement - Left Side).
