Steering Damper: Service and Repair




Steering Linkage Shock Absorber Replacement

Special Tools

J 24319-B Steering Linkage and Tie Rod Puller

Removal Procedure

1. Remove the engine shield, if equipped. Refer to Engine Shield Replacement .





Note: Discard the steering linkage shock absorber nut.

2. Remove the steering linkage shock absorber nut (1) from the steering linkage shock absorber (2).




3. Remove the steering linkage shock absorber from the relay rod using puller J 24319-B .





Note: Discard the steering linkage shock absorber nut.

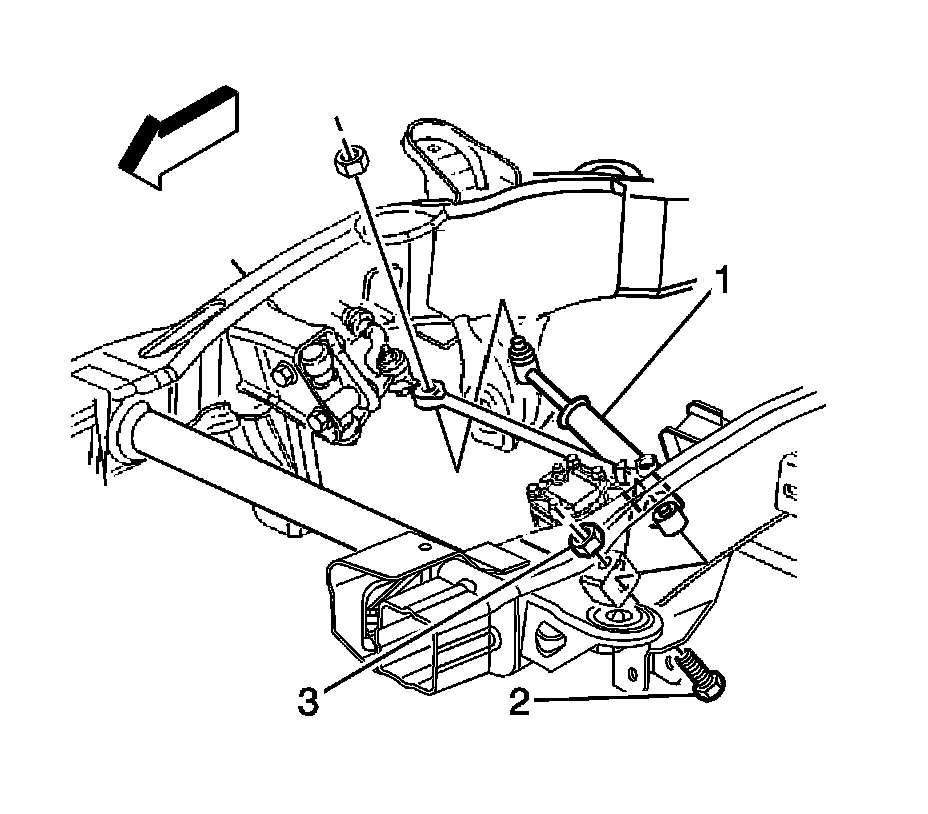

4. Remove the steering linkage shock absorber bolt (2) and nut (3).
5. Remove the steering linkage shock absorber (1) from the vehicle.
6. Inspect the following parts:

* The steering linkage shock absorber for leaks and damage
* The steering linkage shock absorber bolt for damage or corrosion

Installation Procedure





Note: Use new steering linkage shock absorber nuts.

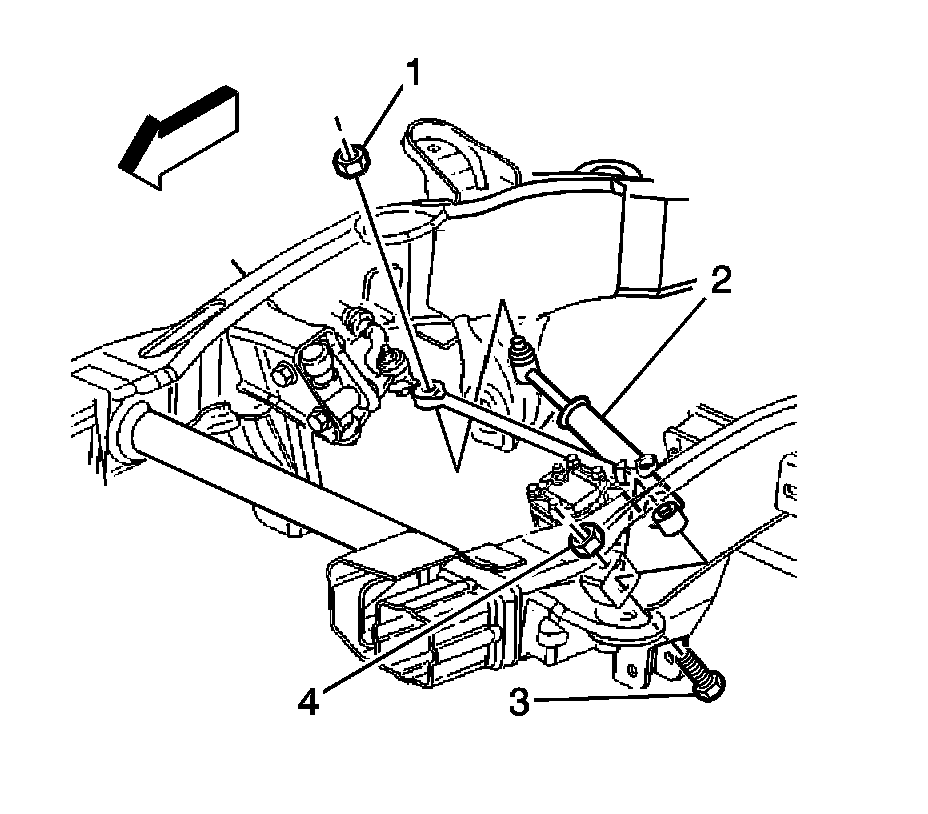

1. Install the steering linkage shock absorber (2) to the vehicle.
2. Install the steering linkage shock absorber (4) and nuts (1, 3).

Caution: Refer to Fastener Caution Fastener Caution.

3. Install the steering linkage shock absorber nuts (1, 3) and tighten to 40 Nm (30 lb ft).
