System Diagram

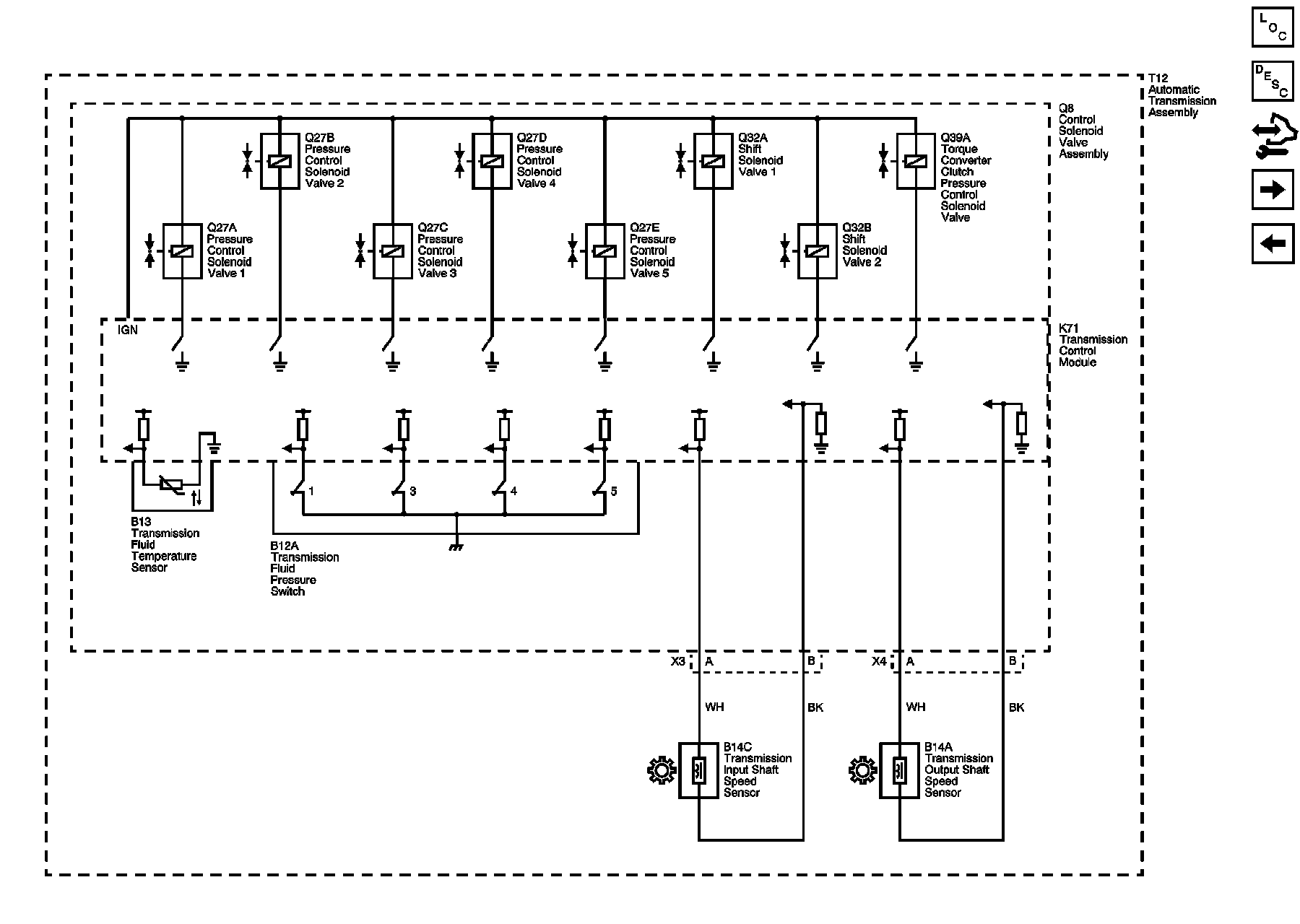

Automatic Transmission Controls Schematics

Module Power, Ground, Data Communication and Mil

Fluid Temperature and Speed Sensors, Valve Position, Pressure and Shift Controls

Internal Mode Switch and Tap Up/Tap Down Switch
