Front of Vehicle Components




Front of Vehicle/Engine Compartment Component Views

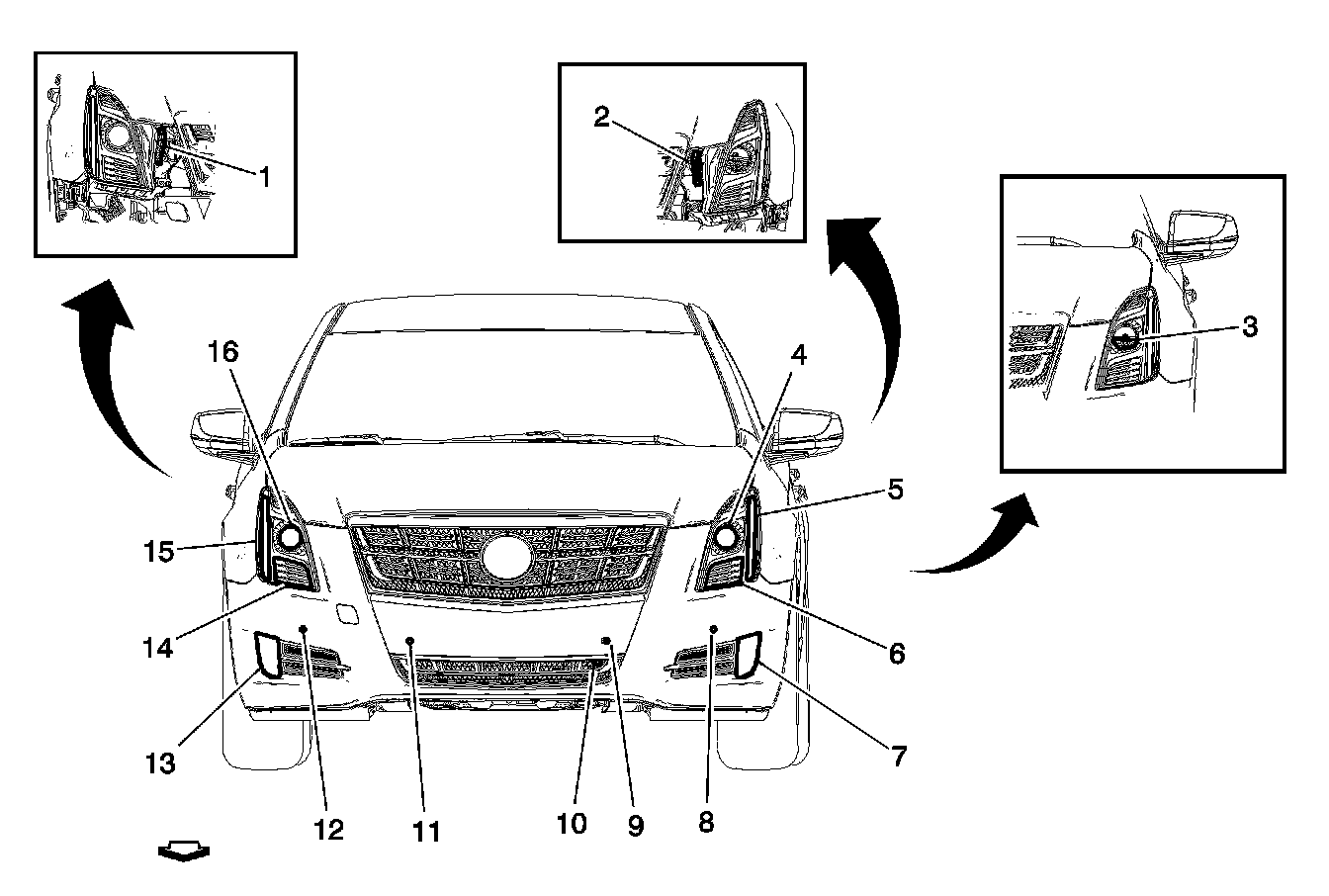

Front of Vehicle Components





1 - T7R Headlamp Ballast - Right (T4F)

2 - T7L Headlamp Ballast - Left (T4F)

3 - E4G Headlamp - Left Low Beam

4 - E4G Headlamp - Left Low Beam

5 - E4C Daytime Running Lamp - Left

6 - E4LF Turn Signal Lamp - Left Front

7 - E4CA Daytime Running Lamp - Auxiliary Left (9H8)

8 - B78A Front Object Sensor - Left Outer (UD7)

9 - B78C Front Object Sensor - Left Middle (UD7)

10 - B9 Ambient Air Temperature Sensor

11 - B78D Front Object Sensor - Right Middle (UD7)

12 - B78B Front Object Sensor - Right Outer (UD7)

13 - E4DA Daytime Running Lamp - Auxiliary Right (9H8)

14 - E4RF Turn Signal Lamp - Right Front

15 - E4D Daytime Running Lamp - Right (T4F)

16 - E4H Headlamp - Right Low Beam (T4A)
