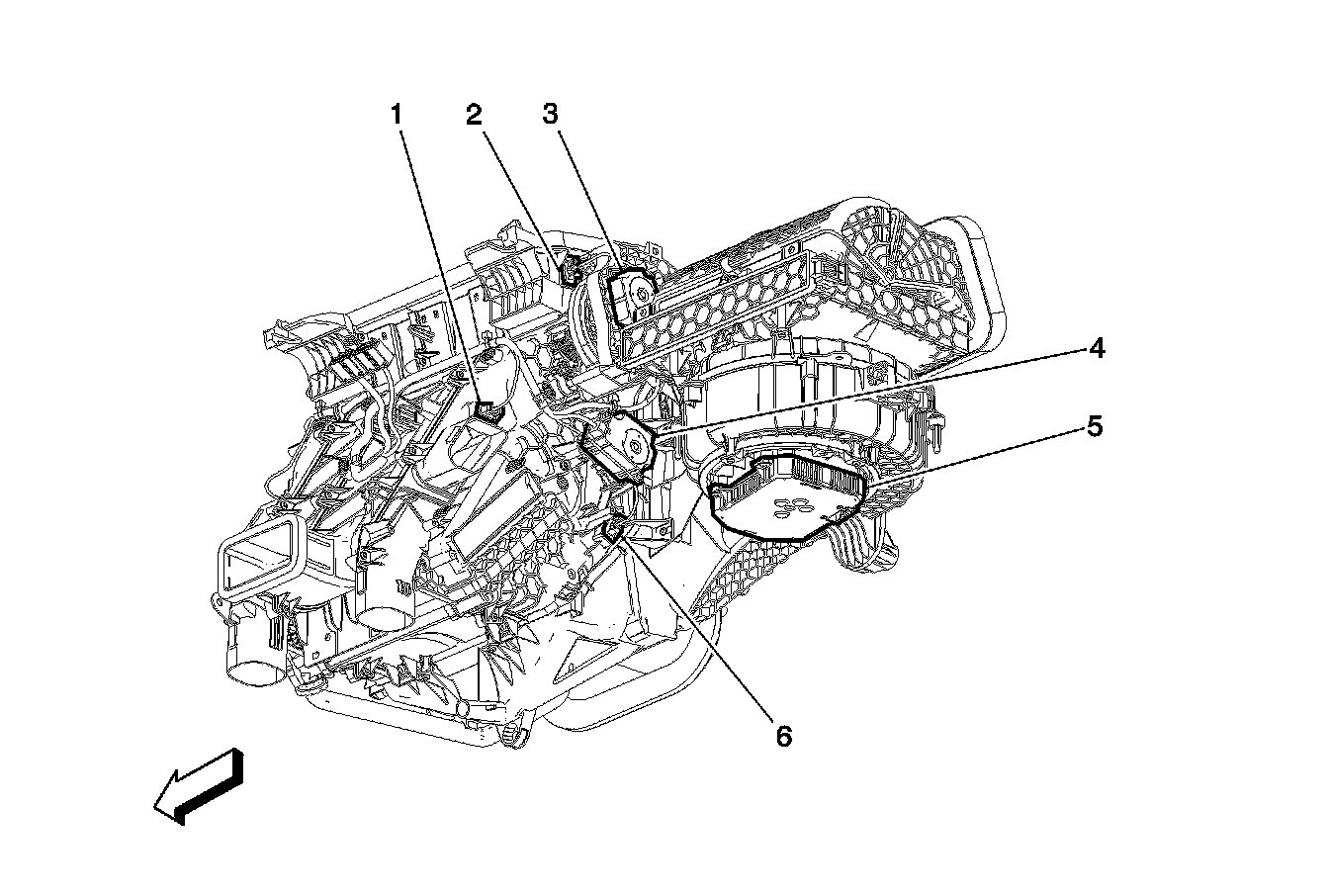

HVAC Components (CJ2)
Instrument Panel/Center Console Component ViewsHVAC Components (CJ2)1 - B7E Air Temperature Sensor Duct - Right Lower
2 - B7J Air Temperature Sensor Duct - Right Upper
3 - M37B Mode Door Actuator - Auxiliary
4 - M6R Mode Door Actuator - Right
5 - M8 Blower Motor
6 - B7C Air Temperature Sensor Duct - Lower Auxiliary
