Unloader Adjustment

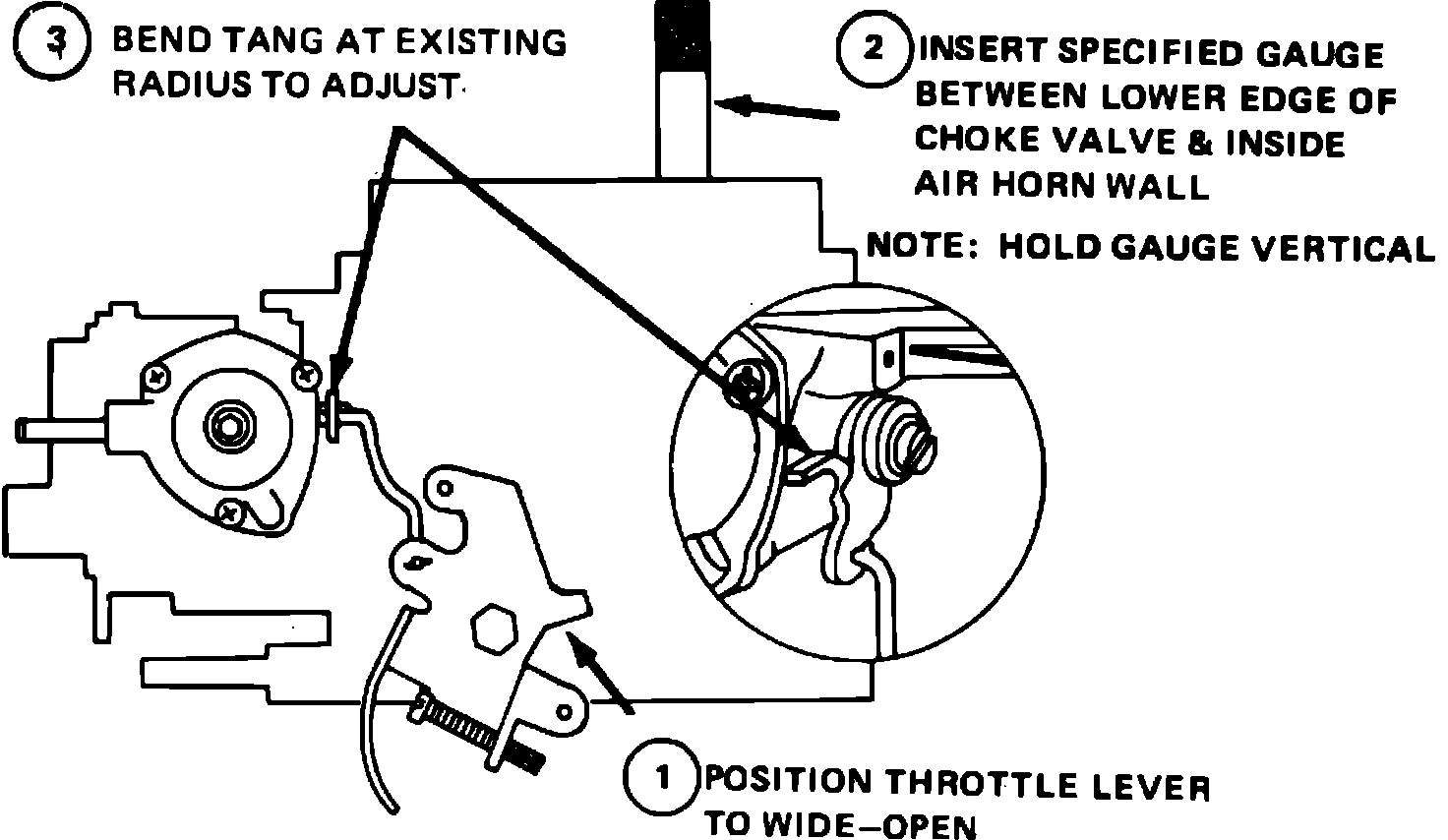

Fig. 8 Choke unloader adjustment:






Fig. 8-Place throttle lever in wide open position. Insert specified gauge between lower edge of choke valve and air horn wall. Bend tang at existing radius to adjust.
