Generator Repair
DISASSEMBLY, TEST AND REASSEMBLY (GENERATOR REMOVED FROM ENGINE) The illustrations which follow should be used when unit repair to the generator becomes necessary.

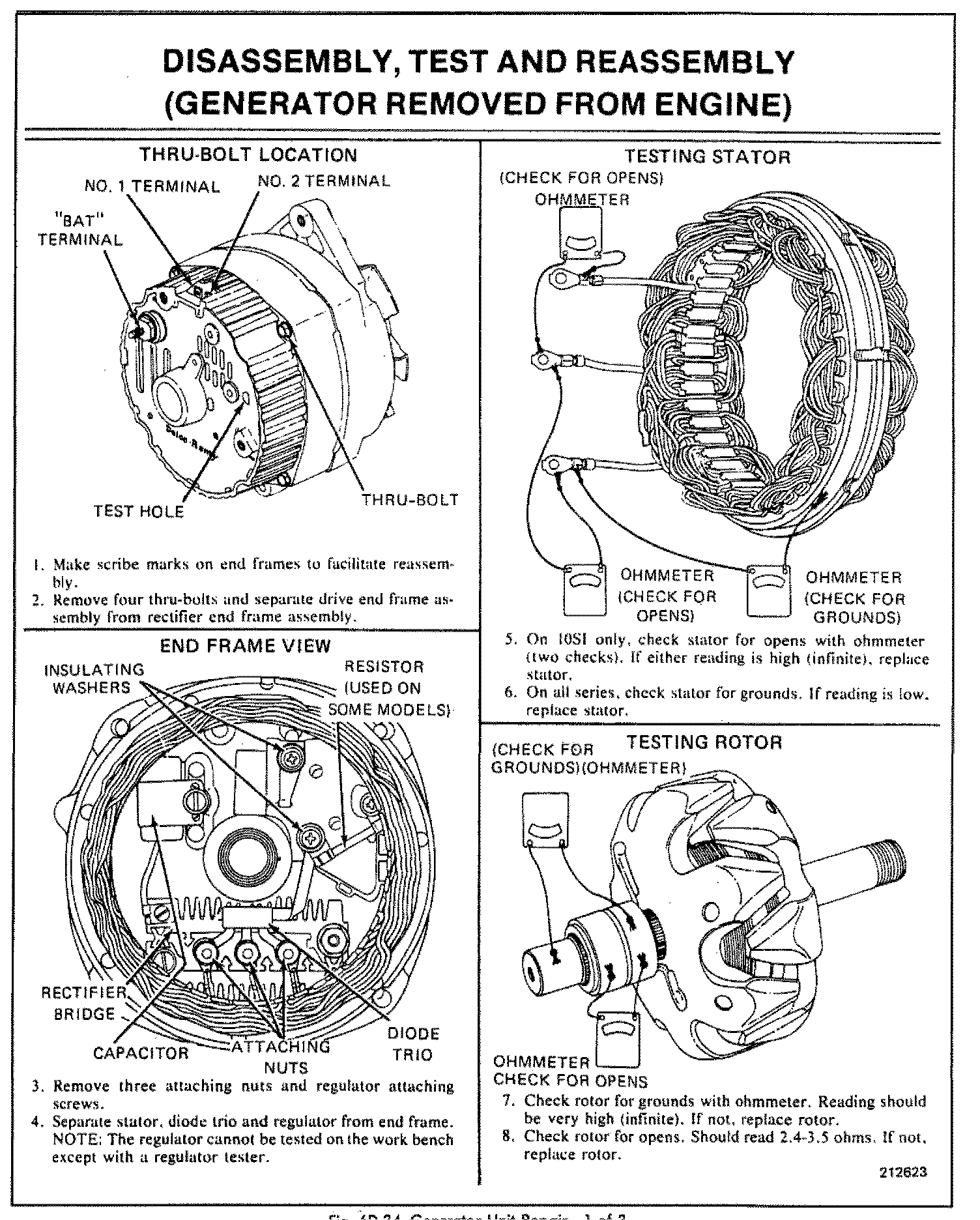

Generator Unit Repair 1 Of 3:

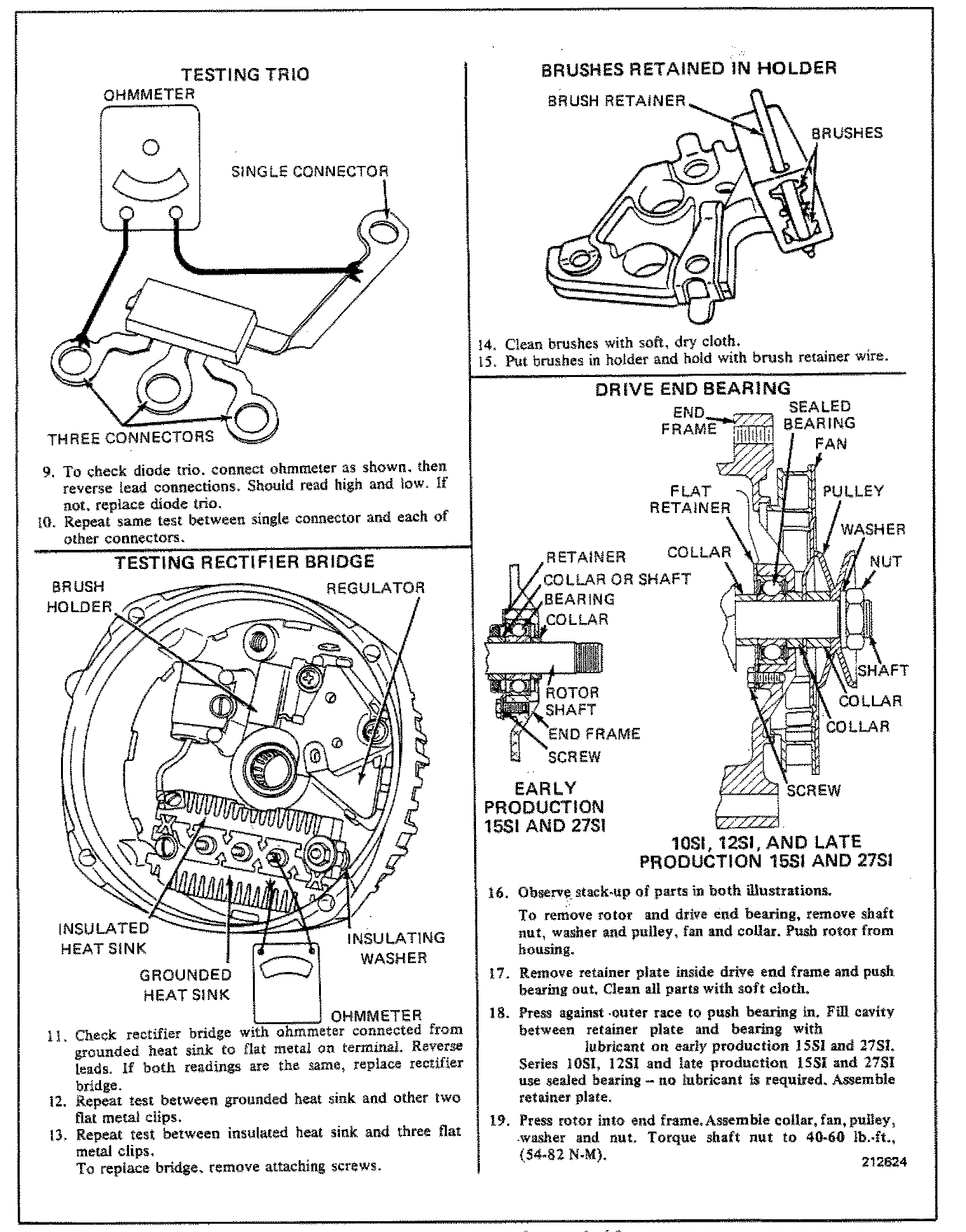

Generator Unit Repair 2 Of 3:

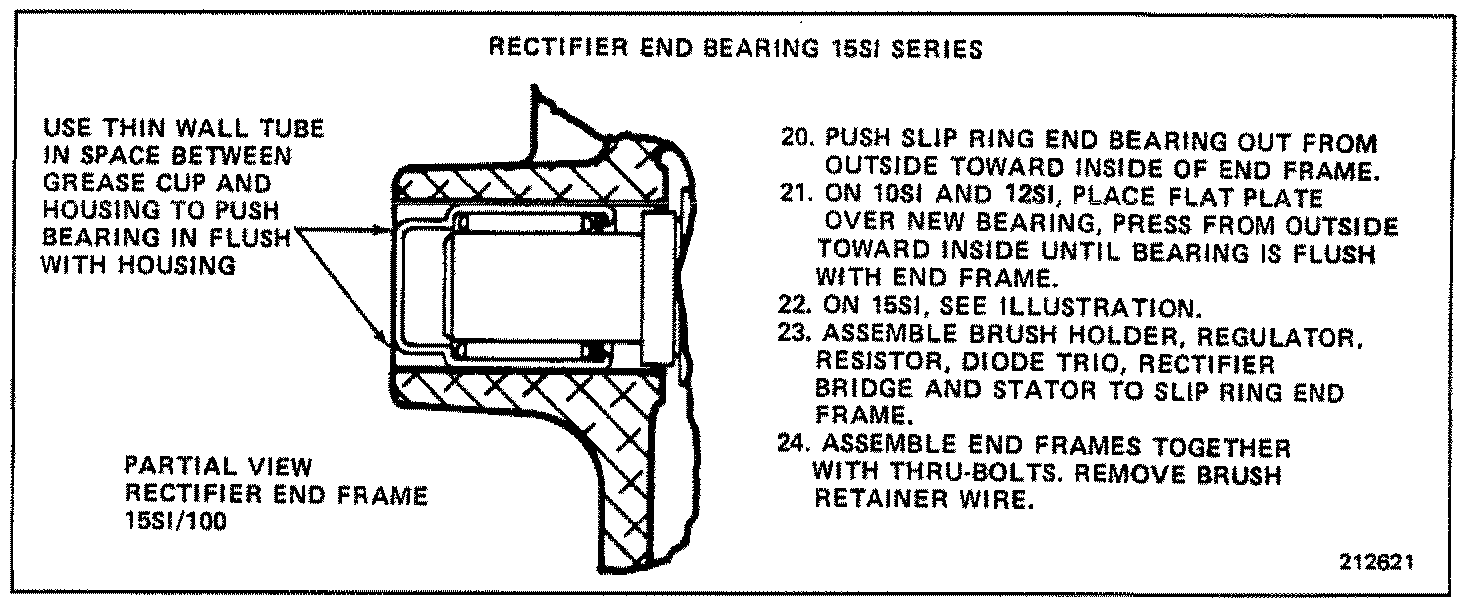

Generator Unit Repair 3 Of 3:
