Power Steering Pressure Switch

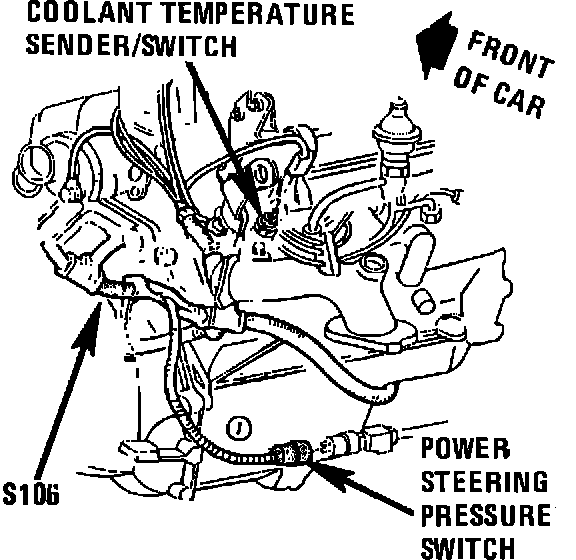

Power Steering Pressure Switch
LH Rear Side Of Engine.:
In Power Steering Hydraulic Line
Applicable to: 1984-85 Celebrity w/V6
